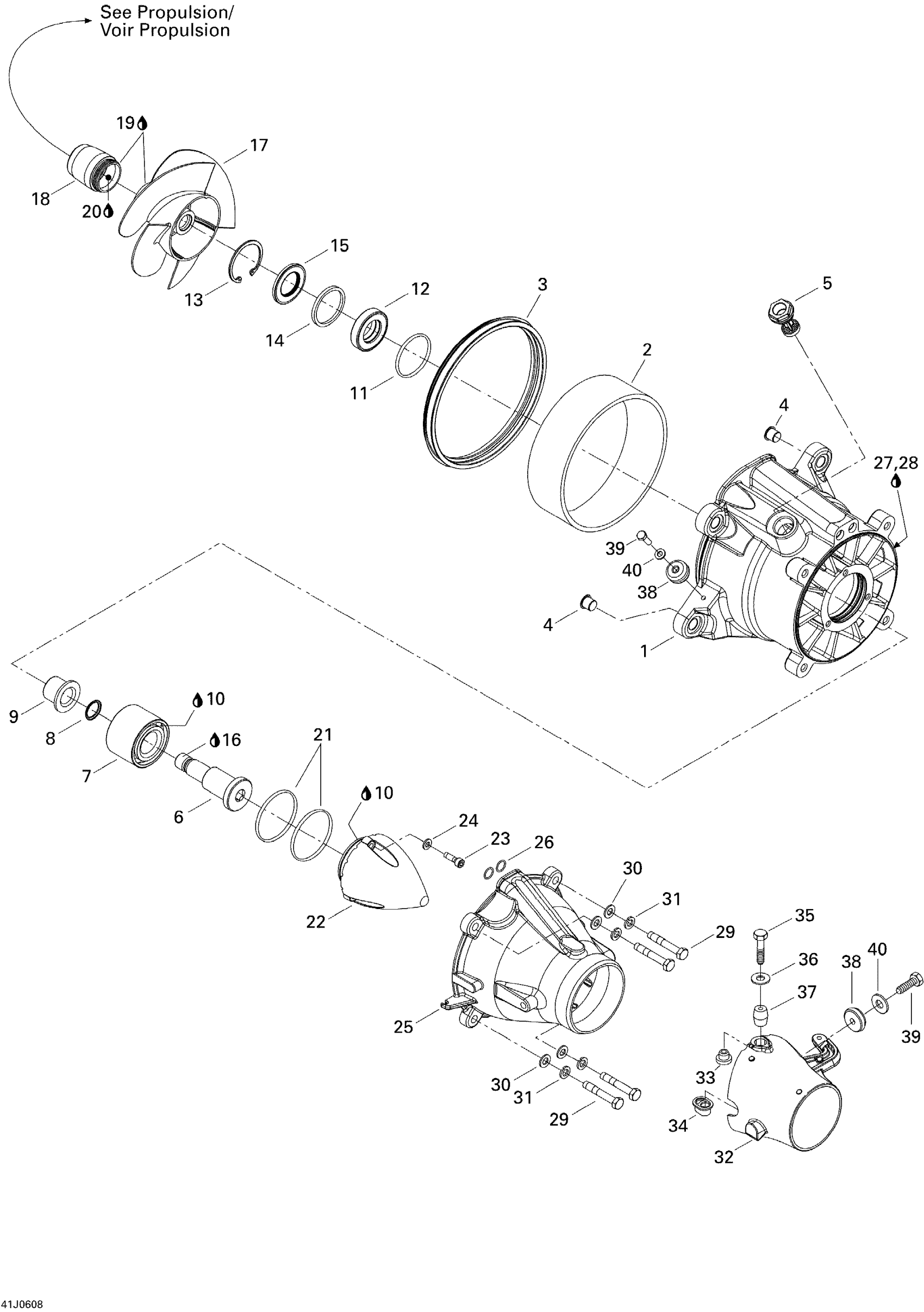

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Pump Diagram

Impeller Housing

267000084

Unavailable

Wear Ring

267000372

$79.07

Neoprene Seal

293200087

$10.55

Bushing

267000093

$8.21

Plug | Includes 370z to 370z1

267000282

$16.39

Impeller Shaft

267000054

$108.18

Angled Bearing This part replaces 267000030.

267000900

$76.09

O-Ring

505070315

$2.69

Shaft Sleeve

267000318

$117.88

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

O-Ring

293300090

$6.85

Seal

271002071

$30.57

Circlip

293370038

$8.18

Spacer

271001393

$7.03

Oil Seal

293200089

$17.88

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

Impeller Ass'y This part replaces 267000250.

267000699

$364.15

Guard

271002228

$11.31

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

Synthetic Grease, 400 G

293550010

Unavailable

O-Ring

293300086

$3.33

Impeller Cover

267000262

$19.37

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

Stainless Flat Washer M6

234061600

$0.28

VENTURI, BLACK - Call your local BRP dealership

271001485

Unavailable

O-Ring

293300013

$6.54

Was 293800041 Loctite Primer 7649

219704458

$41.99

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

Socket Screw M8 X 110, Scotch Grip

231181060

$9.01

Flat Washer M8.5 x 18

293050001

$1.48

Lock Washer 8 mm, Stainless

234181601

$0.52

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

Venturi Bushing

293900001

$7.04

Plastic Bushing

293900010

$8.21

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

Flat Washer M8.5 x 18

293050001

$1.48

Sleeve

271001816

$13.30

Anode Zinc

271001813

$15.64

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

Stainless Flat Washer M6

234061600

$0.28
