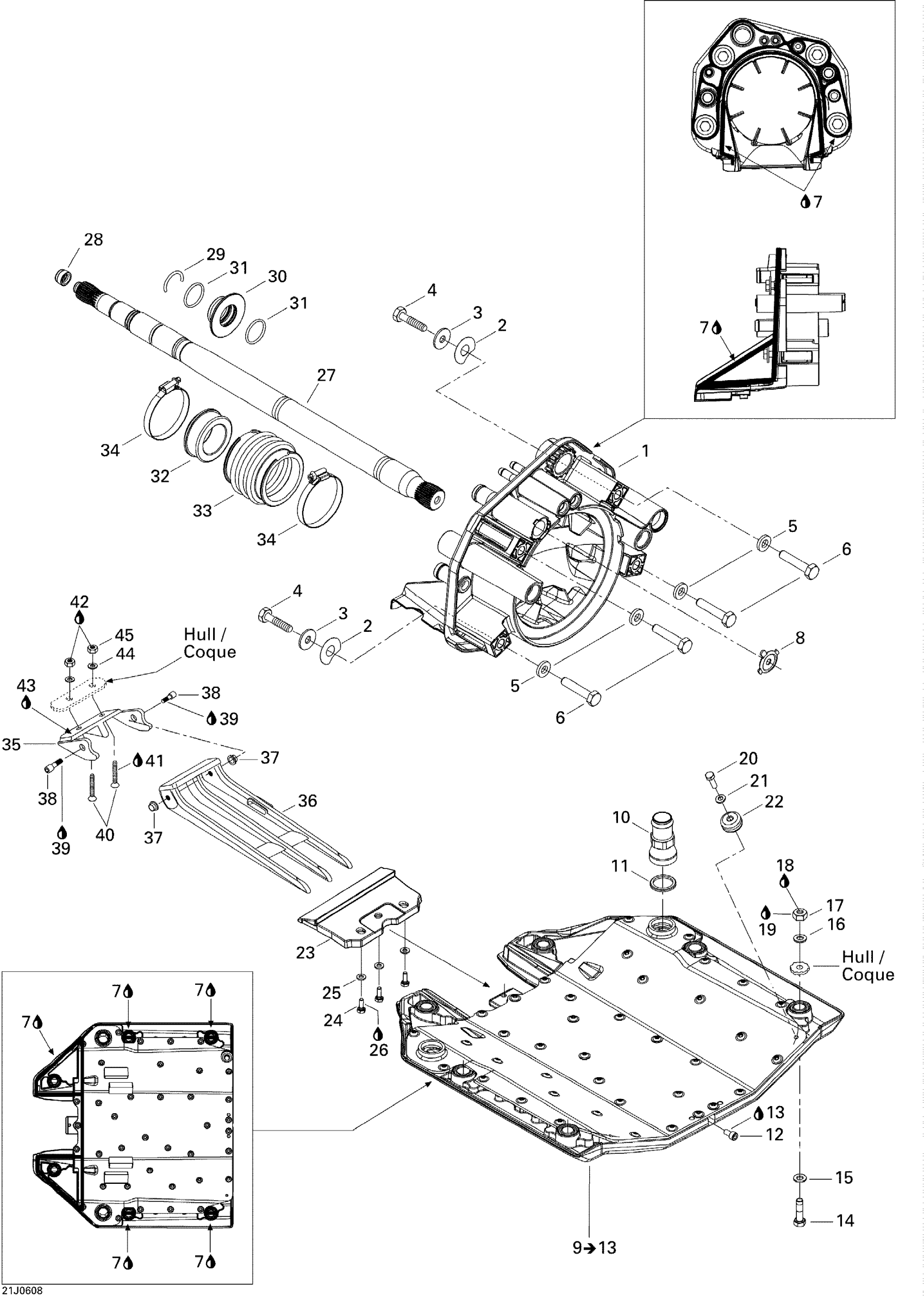

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 05- Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120315

Unavailable

2

Shim 0.3 mm

272000053

$11.49

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer

211200051

$1.68

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Instant Gasket

219701421

$51.99

8

Reducer This part replaces 291001887.

291004649

$17.49

9

Riding Plate | Includes 2 to 6

204120312

Unavailable

10

Straight Plastic Fitting

293710111

$8.47

11

O-Ring

293300121

$8.32

12

Socket Drain Plug M6 X 12

250500005

$16.49

13

Was 293800013 Loctite 56765

219704454

$65.99

14

Hex. Screw M8 X 40

207084060

$2.22

15

Stainless, Flat Washer 8 mm

234081600

$0.55

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Hex. Elastic Nut M8

232581600

$1.48

18

Loctite 243, 10 ml

293800060

$21.49

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

21

Stainless Flat Washer M6

234061600

$0.33

22

Anode Zinc

271001813

$18.99

23

Pump Support Insert

204120305

Unavailable

24

Hex. Screw M6 X 16

207161660

$1.59

25

Stainless Flat Washer M6

234061600

$0.33

26

Loctite 271, 10 ml

293800005

$26.99

27

Drive Shaft

204120309

$476.99

28

Drive Shaft Plug

272000173

$8.68

29

C-Clip

271001575

$6.11

30

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

31

O-Ring

293300044

$1.05

32

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

33

Bellows

272000183

$28.99

34

Norma Clamp

293650077

$7.41

35

GRATE SUPPORT - Call your local BRP dealership

204120014

Unavailable

36

Mobile Grate

204120307

Unavailable

37

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

38

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

41

Loctite 243, 10 ml

293800060

$21.49

42

Silicone Sealant 51388, 300 ml

296000309

$36.99

43

Instant Gasket

219701421

$51.99

44

Flat Washer M6, Stainless

234062600

$0.77

45

Hex. Elastic Stop Nut M6

232561600

$1.15
