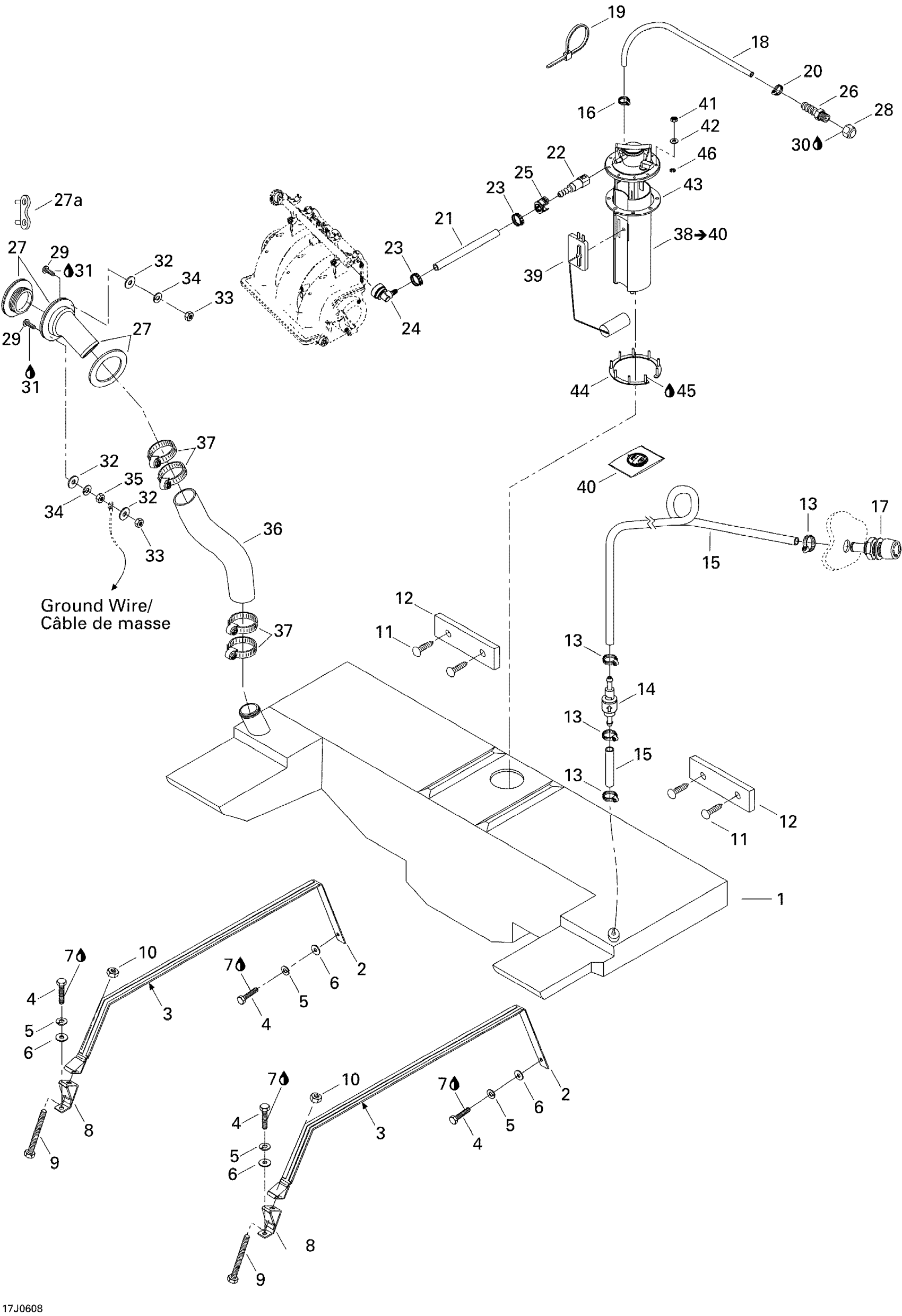

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

204560344

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.49

5

Lock Washer 8 mm, Stainless

234181601

$0.52

6

Flat Washer 8 mm, Stainless

234082600

$2.27

7

Loctite 271, 10 ml

293800005

$23.85

8

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

9

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

10

Hex. Elastic Nut M8

232581600

$1.43

11

Black, Dart

293730006

$0.93

12

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

13

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

14

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

15

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

16

Tridon Gear Clamp

293650170

$2.00

17

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

18

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

19

Tie-Rap 173 mm

293750009

$0.97

20

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

21

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

22

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

23

Oetiker Clamp

293650011

$2.82

24

Elbow Fitting 90°

293710105

$12.15

25

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

26

COUPLER - Call your local BRP dealership

204560265

Unavailable

27

Fuel Filler Neck Ass'y

204560253

Unavailable

27a

FUEL CAP KEY - Call your local BRP dealership

219700344

Unavailable

28

Pipe Cap

204560263

Unavailable

29

Phillips Screw M5 X 3

208553060

Unavailable

30

Was 293800013 Loctite 56765

219704454

$63.40

31

Loctite 243, 10 ml

293800060

$21.49

32

Flat Washer M5, Stainless

234051600

$0.73

33

Hex. Nut M5

232051600

$1.06

34

Helical Lock Washer M5

234151601

$1.04

35

Hex. Nut M5

232051600

$1.06

36

NECK FILLER HOSE - Call your local BRP dealership

219700374

Unavailable

37

Norma Clamp

293650081

$11.33

38

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

39

Sensor Level

270600012

Unavailable

40

Fuel Filter, Bosch

219700368

$36.54

41

Elastic Stop Nut 5 mm

232551200

$1.40

42

Flat Washer 5 mm, Stainless

234052400

$2.69

43

Gasket

293250088

$12.57

44

C-Ring, 9 Studs

275500679

$73.10

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

46

Circlip 5 mm

293370002

$5.10
