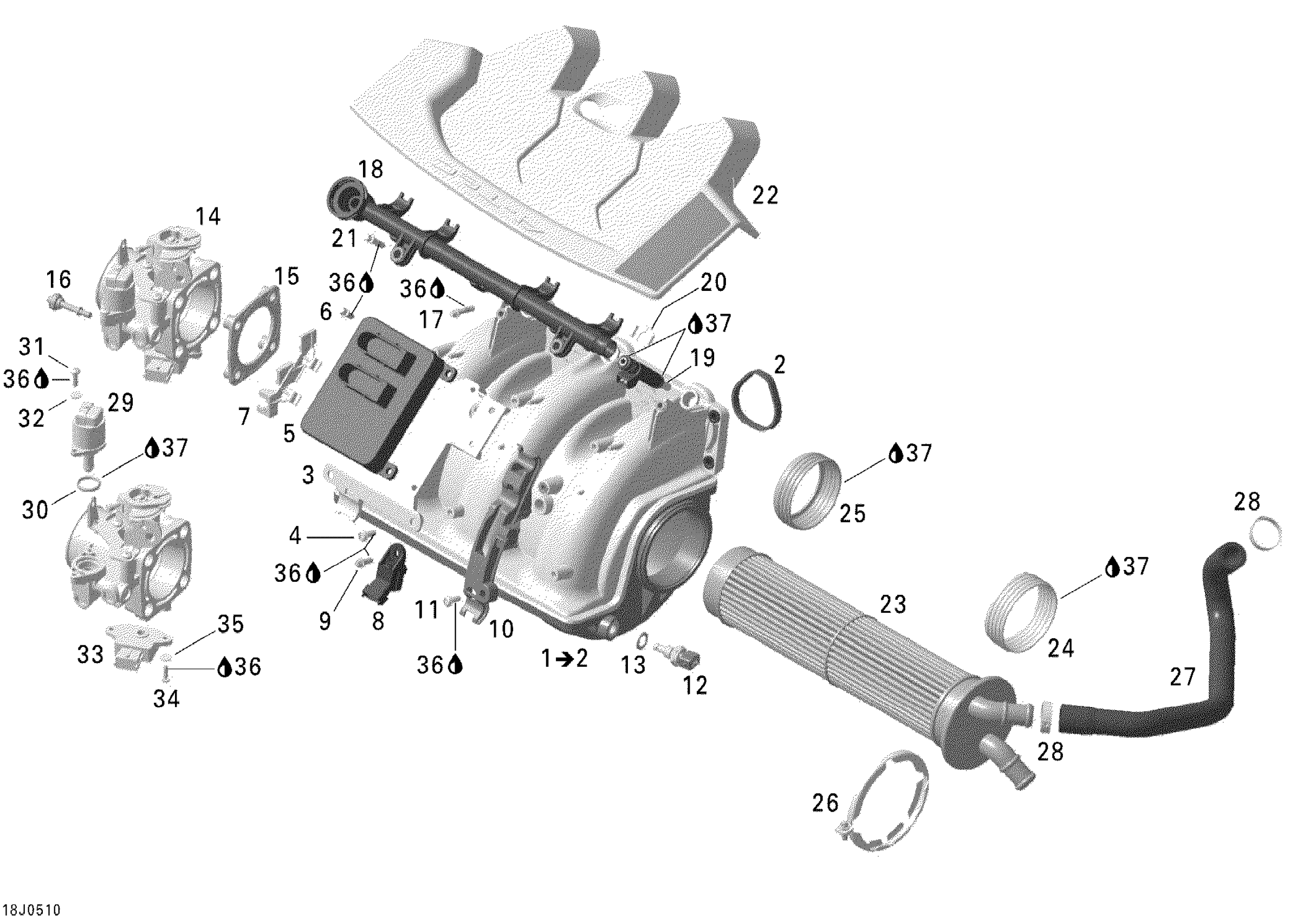

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Air Intake Manifold 1 Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867955

$418.63

2

Gasket | Included in gasket kit

420950740

$4.15

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.82

5

Electronic Box

420664947

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$2.00

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

420274058

$125.34

9

Torx Flange Screw M6 X 16

420641048

$2.82

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.00

12

Temperature Sensor This part replaces 420222423.

420222421

$36.54

13

Aluminum Sealing Ring

420250016

$5.06

14

Throttle Body

420892450

Unavailable

15

Rubber Gasket

420950792

$10.21

16

Allen Screw M6 x 30,5

420440561

$4.21

17

Torx Flange Screw M6 X 25

420641238

$3.07

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

19

Fuel Injector | Includes 19 to 20

420874520

$137.28

20

Injector Clip

420853030

$2.82

21

Torx Flange Screw M6 X 25

420641238

$3.07

22

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

23

Intercooler This part replaces 420889653.

420889654

$459.99

24

PROFILE RING - Call your local BRP dealership

420631990

Unavailable

25

Profile Ring

420631995

$17.88

26

Gear Clamp

420853253

$33.55

27

FORMED HOSE - Call your local BRP dealership

420822173

Unavailable

28

Gear Clamp

420851673

$5.40

29

Idle Bypass Valve

420963051

$291.76

30

O-Ring

420631780

$4.15

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Position Sensor

420866120

$89.52

34

Phillips Screw M4 X 16

208641660

$0.85

35

Flat Washer 4 mm, Stainless

234042600

$1.06

36

Loctite 243, 10 ml

293800060

$21.49

37

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
