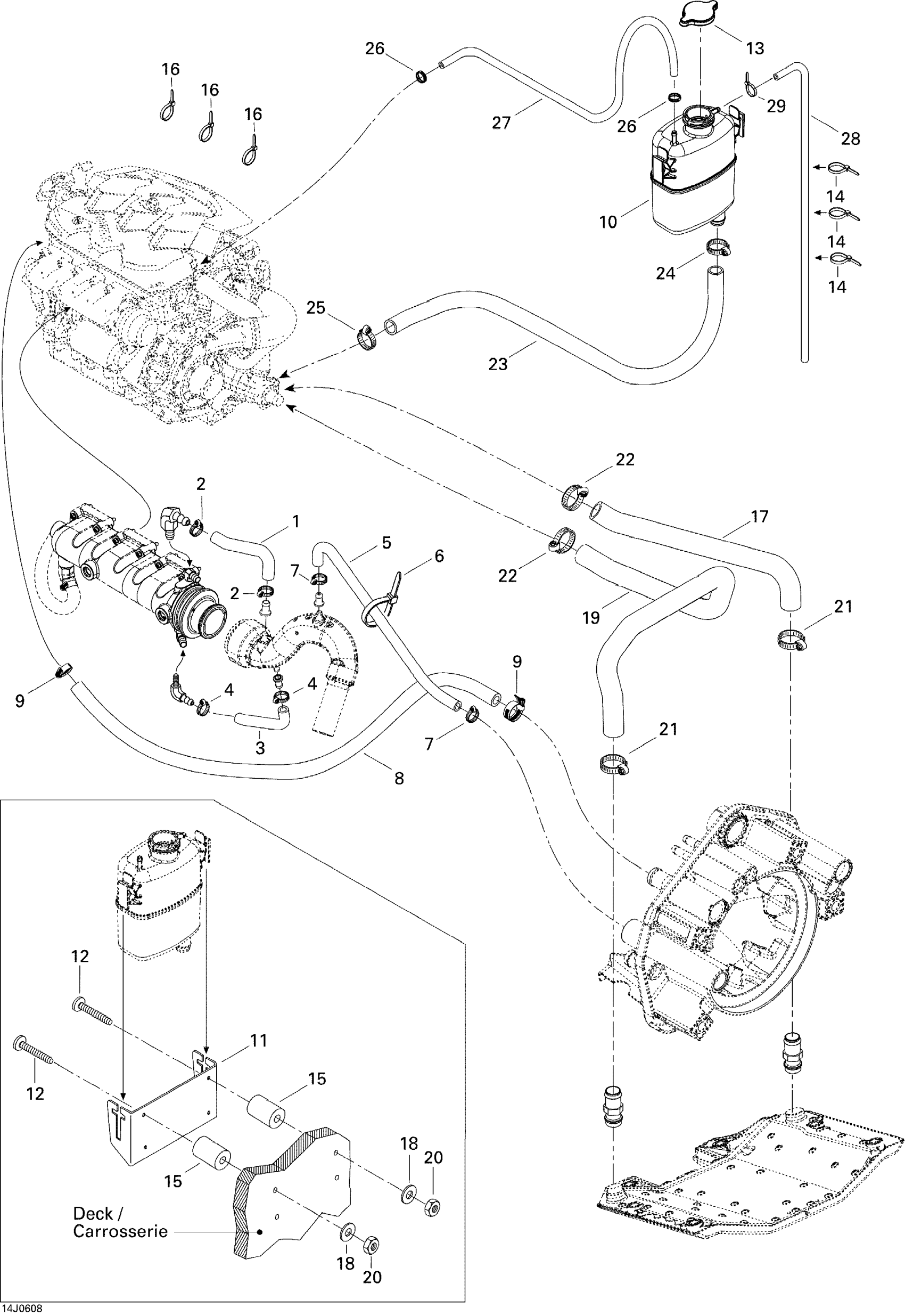

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Cooling System Diagram

#

Description
Price

1

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

2

Tridon Gear Clamp

293650172

$3.09

3

Lower Formed Hose

276000104

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Tie Wrap 368 mm

293750008

$1.04

7

Tridon Gear Clamp

293650172

$3.09

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

Tridon Gear Clamp

293650051

$4.19

10

Coolant Tank

276000086

$109.99

11

Coolant Tank Bracket

204300165

Unavailable

12

Phillips Screw M5 X 35

208653560

$2.22

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

Tie Wrap 142 mm

293750002

$1.25

15

BUSHING - Call your local BRP dealership

204300166

Unavailable

16

Tie Wrap 142 mm

293750002

$1.25

17

RH Radiator Hose

276000248

$58.99

18

Flat Washer 5 mm, Stainless

234052600

$0.77

19

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

20

Hex. Elastic Nut M5 | X

232551600

$1.15

21

Tridon Gear Clamp

293650045

$5.69

22

Tridon Gear Clamp

293650045

$5.69

23

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

24

Tridon Gear Clamp

293650051

$4.19

25

Tridon Gear Clamp

293650019

$5.82

26

Oetiker Gear Clamp

293650025

$3.09

27

Was 275500549 Hose 1/4"

219704357

$194.99

28

Polyurethane Hose 10000Mm Long

219704410

$56.99

29

Tie Wrap 94 mm | 4X4

293750001

$1.03
