- Challenger 180 4-TEC SCIC, 2005
10- Electrical Accessories 1

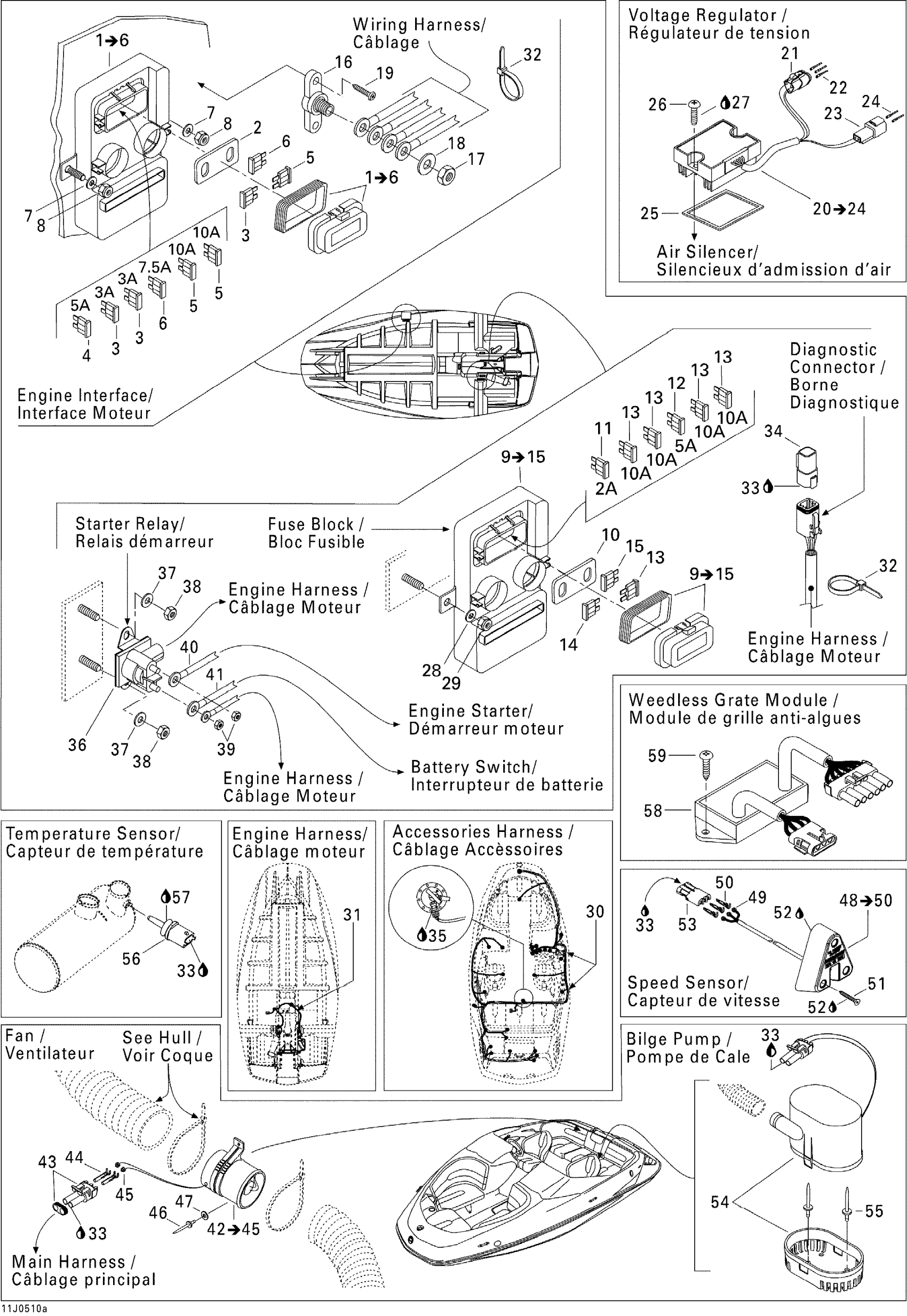

Sea-doo Challenger 180 4-TEC SCIC, 2005 10- Electrical Accessories 1 Diagram
#
1
SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6
204470771
Unavailable
2
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
3
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
4
Fuse, 5 Amperes | CE
278000344
$3.28
5
Fuse, 10 Amperes | North America
278001197
$2.21
6
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
10
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
11
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
12
Fuse, 5 Amperes | CE
278000344
$3.28
13
Fuse, 10 Amperes | North America
278001197
$2.21
14
Fuse, 20 Amperes
403003900
Unavailable
15
Fuse, 30 Amperes
410917200
$3.28
16
Ground Post
204470715
Unavailable
17
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
18
Flat Washer 10 mm, Stainless
234001600
$1.15
19
SCREW-PAN HD.#10 X 1 BLACK - Call your local BRP dealership
204100115
Unavailable
20
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
$174.99
21
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
22
Female Terminal
278000632
$2.09
23
Mâle Terminal Housing, 2 Circuits
278001674
$30.49
24
Male Terminal
515175568
$9.12
25
SEAL - Call your local BRP dealership
293250123
Unavailable
26
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
27
Loctite 271, 10 ml
293800005
$26.99
28
Flat Washer M6, Stainless
234062600
$0.77
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Accessories Wiring Harness
204470972
Unavailable
31
Engine Harness
204470973
Unavailable
32
Tie-Rap 180 mm
414115200
$0.11
33
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
34
Diagnostic Connector
278002704
$19.49
35
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
36
Starter Relay
278003012
$42.49
37
Flat Washer M6, Stainless
234062600
$0.77
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
RED CABLE - Call your local BRP dealership
204470798
Unavailable
41
RED CABLE - Call your local BRP dealership
204470799
Unavailable
42
Fan Ass'y | Includes 44 to 47
204470108
$144.99
43
Male Connector, 2 Circuits
278000220
$15.49
44
Female Terminal
278000223
$3.19
45
Wire Seal
278000218
$4.39
46
Pop Rivet 3/16"
293150008
$0.50
47
Flat Washer 5 mm, Stainless
234052600
$0.77
48
Speed Sensor
278001993
$169.99
49
Wire Seal
710000048
$7.69
50
Male Terminal | XT Models
278000222
$3.19
51
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
52
Silicone Sealant 51388, 300 ml
296000309
$36.99
53
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
54
Bilge Pump
204471431
Unavailable
55
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
56
Temperature Sensor
278002895
$39.99
57
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
58
Weedless Grade Module
204470887
Unavailable
59
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
