- Challenger 180 4-TEC SCIC, 2005
09- Seat, Rear View, Copper

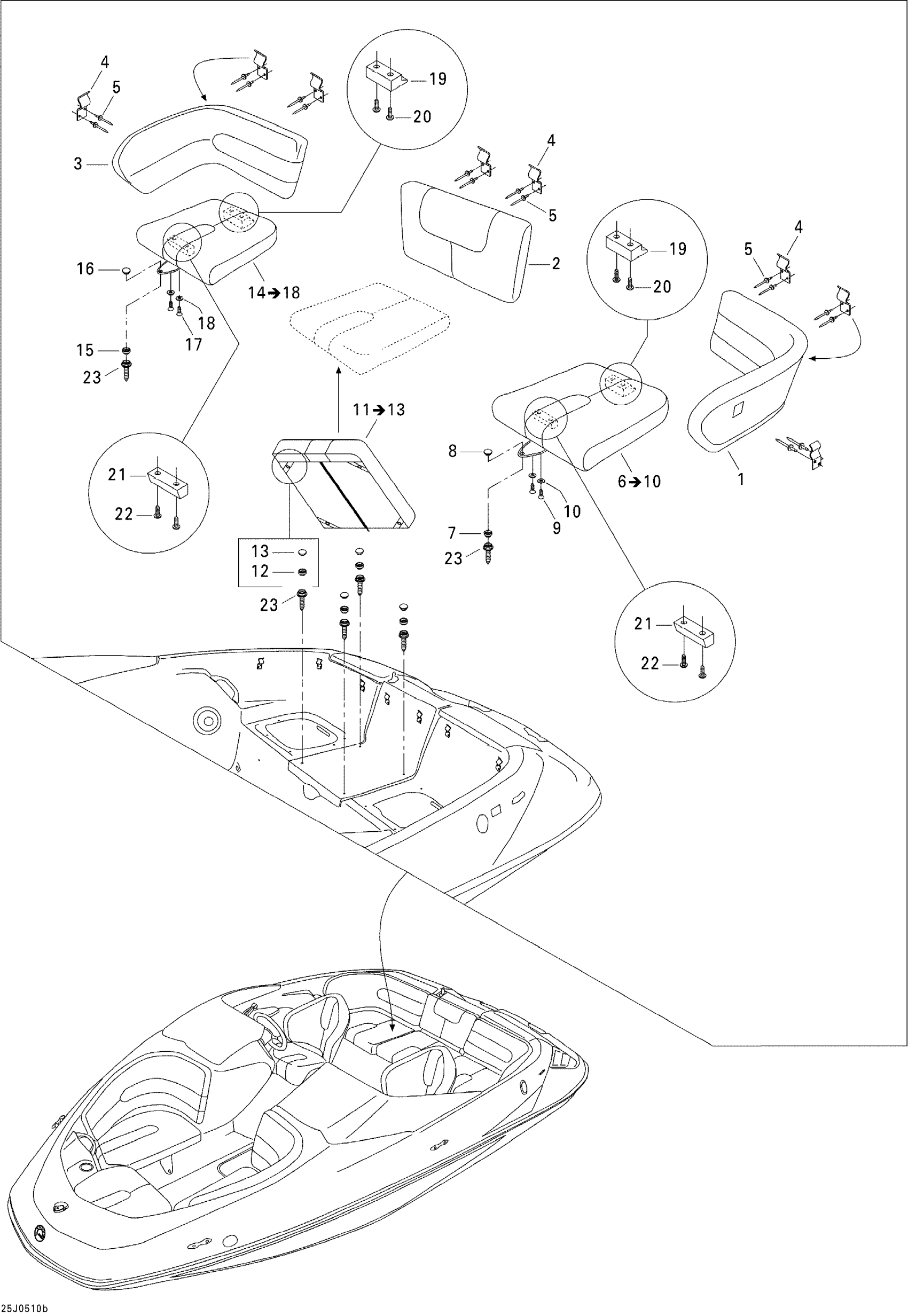

Sea-doo Challenger 180 4-TEC SCIC, 2005 09- Seat, Rear View, Copper Diagram
#
Description
Price
1
Rear Backrest, Port Side | Copper
204613139
Unavailable
2
Rear Backrest, Center | Copper
204613141
Unavailable
3
Rear Backrest, Starboard | Copper
204613143
Unavailable
4
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
5
Pop Rivet 3/16"
293150043
$2.09
6
Rear Seat Ass'y, Port Side | Includes 6 to 10, Copper
204613145
Unavailable
7
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
8
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
9
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
10
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
11
Rear Seat Ass'y, Center | Includes 11 to 13, Copper
204613147
Unavailable
12
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
13
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
14
Rear Seat Ass'y, Starboard | Includes 14 to 18, Copper
204613149
Unavailable
15
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
16
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
17
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
18
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
19
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
20
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
21
LATCH - Call your local BRP dealership
204611805
Unavailable
22
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
23
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
