- Challenger 180 4-TEC SCIC, 2005
09- Central Cover And Accessories

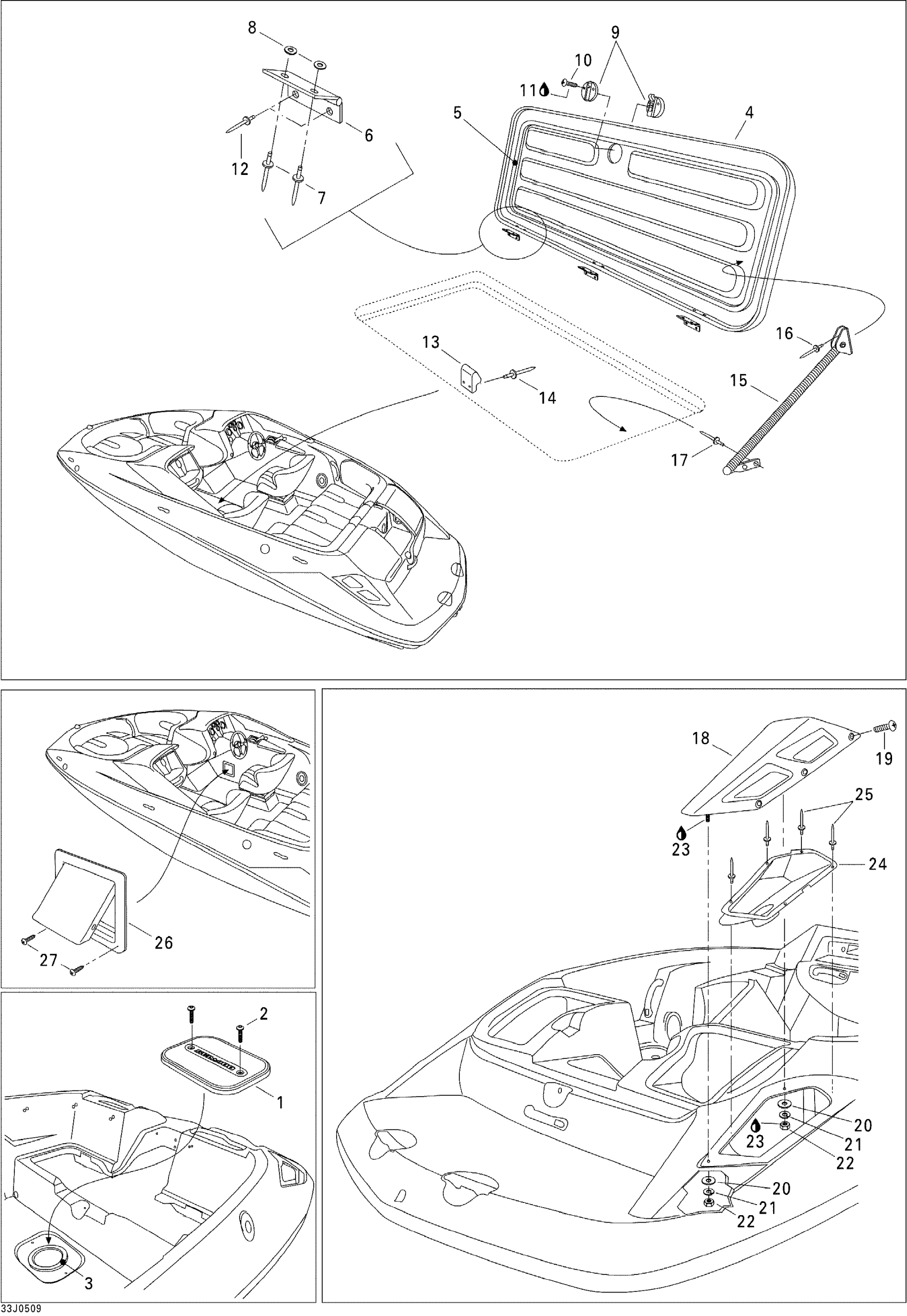

Sea-doo Challenger 180 4-TEC SCIC, 2005 09- Central Cover And Accessories Diagram
#
Description
Price
1
Fuel Tank Access Lid
204072224
Unavailable
2
Socket Screw M6 X 40
205464060
$2.22
3
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
4
CENTER COVER - Call your local BRP dealership
204073144
Unavailable
5
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
6
HINGE - Call your local BRP dealership
204072601
Unavailable
7
Pop Rivet 3/16"
293150088
$0.99
8
Flat Washer M5, Stainless
234051600
$0.77
9
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
10
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
11
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
12
Pop Rivet 3/16"
293150005
$0.52
13
LATCH BRACKET - Call your local BRP dealership
204070050
Unavailable
14
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
15
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
16
Pop Rivet 3/16"
204000081
$1.49
17
Pop Rivet 3/16"
293150043
$2.09
18
VENT COVER ASS'Y, PORT SIDE - Call your local BRP dealership | Port Side
204072292
Unavailable
18
VENT COVER ASS'Y, STARBOARD - Call your local BRP dealership | Starboard
204072293
Unavailable
19
PHILLIPS SCREW 1 - Call your local BRP dealership
204100154
Unavailable
20
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
21
Lock Washer 1/4”
211200025
$1.29
22
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
VENT INLET, PORT SIDE - Call your local BRP dealership | Port Side
291003407
Unavailable
24
VENT - INLET / STBD - Call your local BRP dealership | Starboard This part replaces 204072231.
204073836
Unavailable
25
Pop Rivet 1/8”
293150015
$0.40
26
ACCESS DOOR - Call your local BRP dealership
204072447
Unavailable
27
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
