- Challenger 180 4-TEC SCIC, 2005
07- Steering System

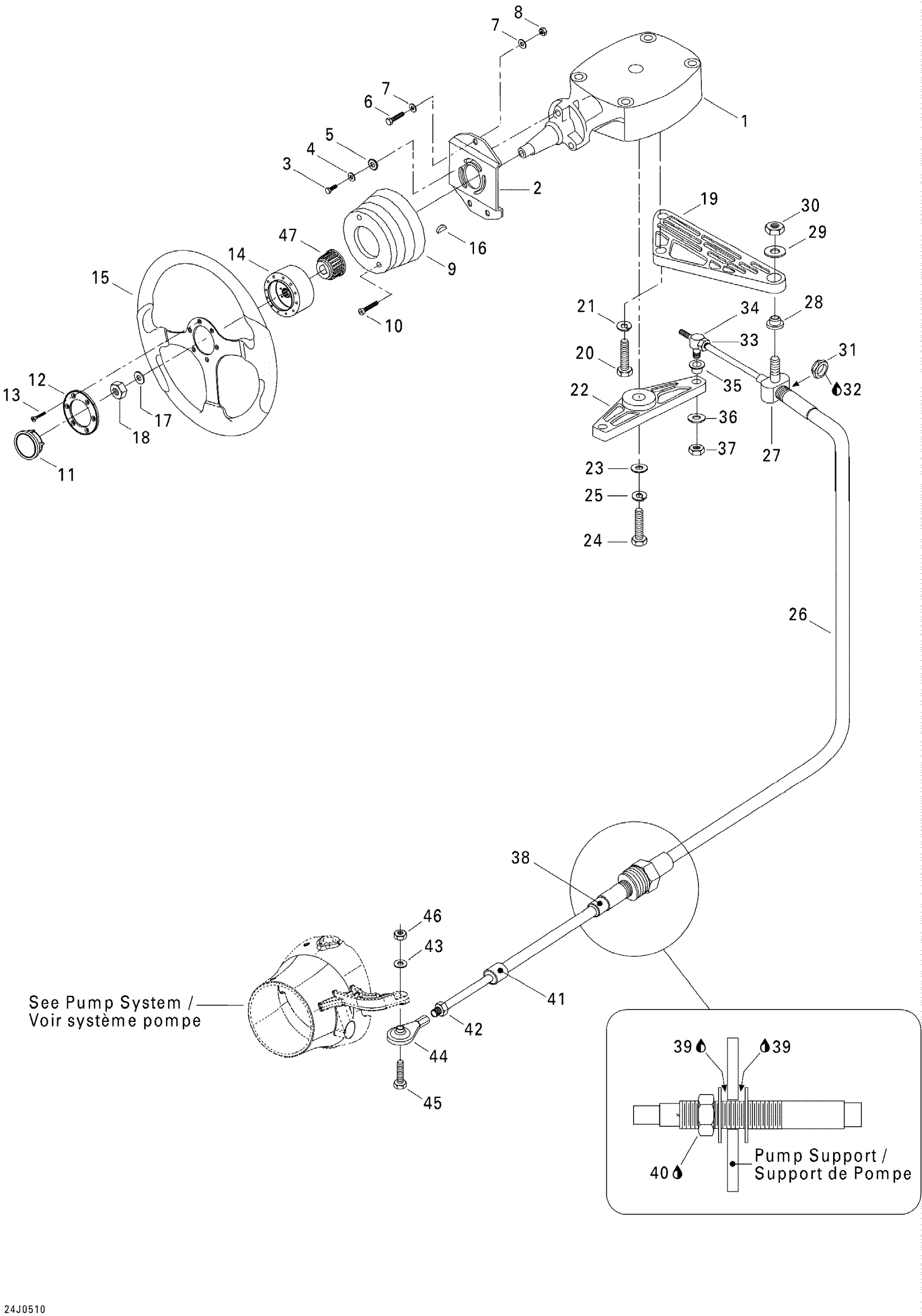

Sea-doo Challenger 180 4-TEC SCIC, 2005 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Support
277000383
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Serrated Lock Washer 8 mm
234481608
$1.15
6
Hex. Screw M6 X 40
207164060
$3.38
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
10
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
11
Center Cap
204390327
Unavailable
12
CENTER RING - Call your local BRP dealership
204390423
Unavailable
13
SCREW PACK - Call your local BRP dealership
204390329
Unavailable
14
Nylon Steering Hub
204390443
Unavailable
15
Steering Wheel
204390424
Unavailable
16
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
17
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
18
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
19
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
20
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
21
Lock Washer 1/4”
211200025
$1.29
22
ARM - Call your local BRP dealership
204390040
Unavailable
23
Flat Washer M6, Stainless
234062600
$0.77
24
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
25
Lock Washer 1/4”
211200025
$1.29
26
STEERING CABLE - Call your local BRP dealership
204390434
Unavailable
27
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
28
Flanged Bushing
293350014
$12.99
29
Flat Washer 10 mm, Stainless
234001600
$1.15
30
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
31
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
34
PIVOT - Call your local BRP dealership
277000456
Unavailable
35
BUSHING - Call your local BRP dealership
204130095
Unavailable
36
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
37
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
38
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
39
Silicone Sealant 51388, 300 ml
296000309
$36.99
40
Loctite 243, 10 ml
293800060
$21.49
41
Terminal Wiper
277000441
$11.99
42
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
43
Stainless Flat Washer M6
234061600
$0.33
44
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
45
Hex. Screw M6 X 35
207063560
$2.22
46
Hex. Elastic Stop Nut M6
232561600
$1.15
47
Steering Hub Insert
204390444
Unavailable
