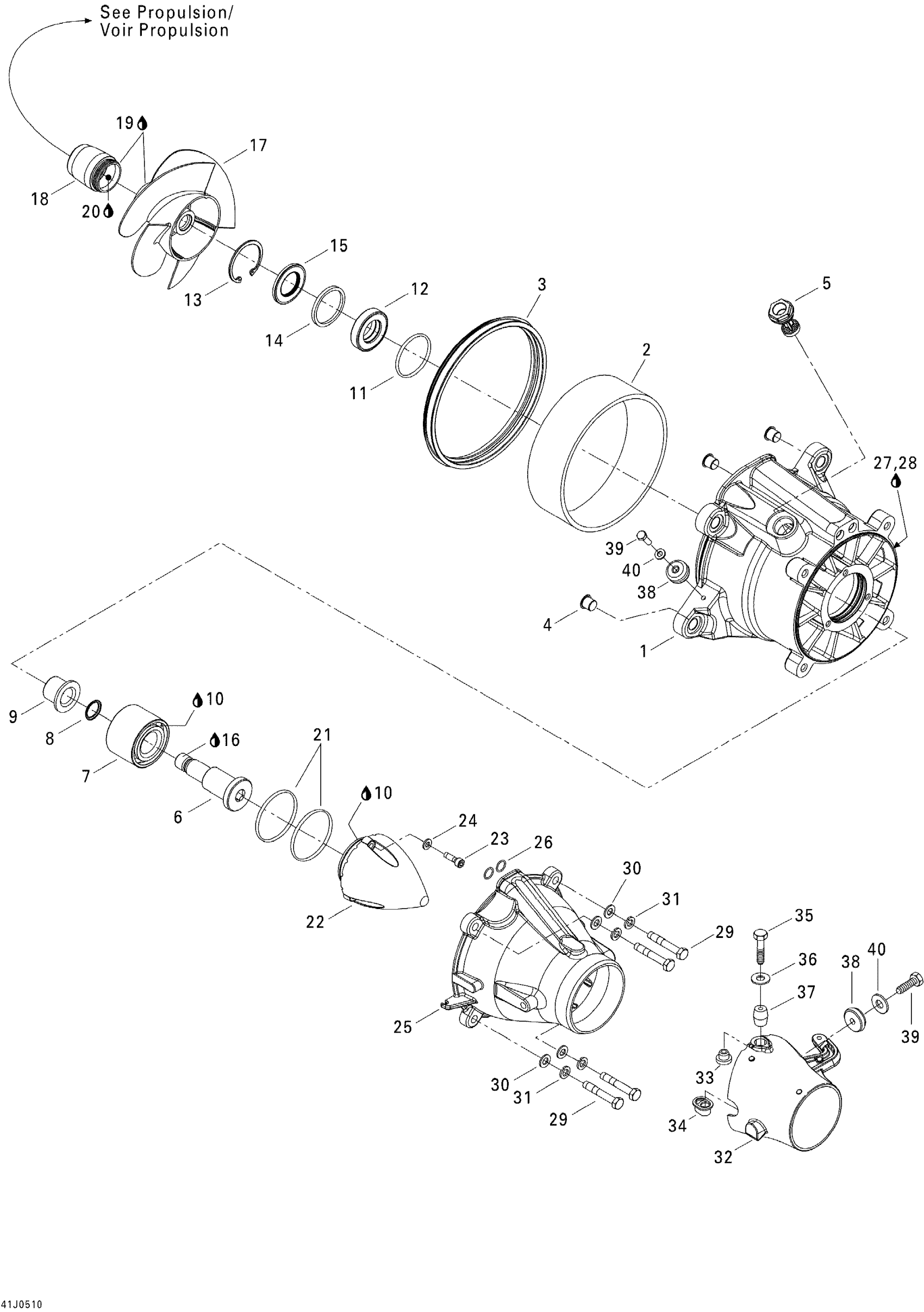

Sea-doo Challenger 180 4-TEC SCIC, 2005 05- Pump Diagram
#
Description
Price
1
Impeller Housing
267000083
Unavailable
2
Wear Ring
267000372
$84.99
3
Neoprene Seal
293200087
$12.63
4
Bushing
267000093
$9.59
5
Plug | Includes 370z to 370z1
267000282
$19.49
6
Impeller Shaft
267000054
$116.49
7
Angled Bearing This part replaces 267000030.
267000900
$80.99
8
O-Ring
505070315
$2.85
9
Shaft Sleeve
267000318
$134.99
10
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
11
O-Ring
293300090
$7.20
12
Seal
271002071
$33.99
13
Circlip
293370038
$8.79
14
Spacer
271001393
$8.59
15
Oil Seal
293200089
$19.99
16
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
17
Impeller Ass'y This part replaces 267000250.
267000699
$391.99
18
Guard
271002228
$12.99
19
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
20
Synthetic Grease, 400 G
293550010
Unavailable
21
O-Ring
293300086
$3.59
22
Impeller Cover
267000262
$21.99
23
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
24
Stainless Flat Washer M6
234061600
$0.33
25
VENTURI, BLACK - Call your local BRP dealership
271001485
Unavailable
26
O-Ring
293300013
$8.18
27
Was 293800041 Loctite Primer 7649
219704458
$39.99
28
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
29
Socket Screw M8 X 110, Scotch Grip
231181060
$9.89
30
Flat Washer M8.5 x 18
293050001
$3.07
31
Lock Washer 8 mm, Stainless
234181601
$0.55
32
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.
462125
Unavailable
33
Venturi Bushing
293900001
$7.62
34
Plastic Bushing
293900010
$9.59
35
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
36
Flat Washer M8.5 x 18
293050001
$3.07
37
Sleeve
271001816
$14.99
38
Anode Zinc
271001813
$18.99
39
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
40
Stainless Flat Washer M6
234061600
$0.33
