- Challenger 180 4-TEC SCIC, 2005
05- Propulsion

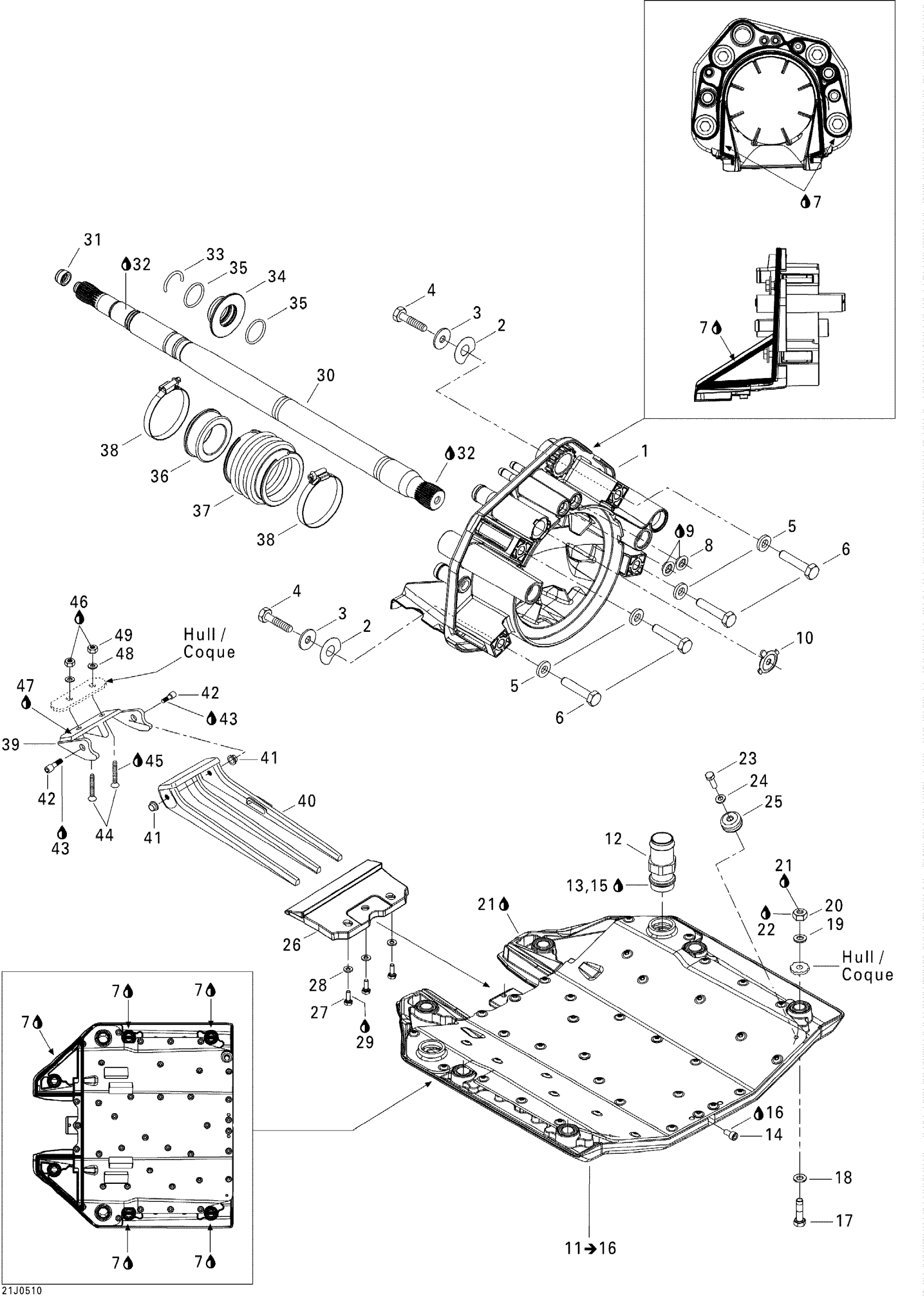

Sea-doo Challenger 180 4-TEC SCIC, 2005 05- Propulsion Diagram
#
1
Pump Support
204120277
Unavailable
2
Shim 0.3 mm
272000053
$11.49
3
Flat Washer 10 mm, Stainless
234002600
$2.22
4
HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership
250000189
Unavailable
5
Flat Washer
211200051
$1.68
6
HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership
250000188
Unavailable
7
Instant Gasket
219701421
$51.99
8
Watertight Seal
293250084
$7.49
9
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
10
Reducer This part replaces 291001887.
291004649
$17.49
11
Riding Plate | Includes 11 to 16
271001491
Unavailable
12
STRAIGHT PLASTIC FITTING - Call your local BRP dealership
293710087
Unavailable
13
Was 293800041 Loctite Primer 7649
219704458
$39.99
14
Socket Drain Plug M6 X 12
250500005
$16.49
15
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
16
Was 293800013 Loctite 56765
219704454
$65.99
17
Hex. Screw M8 X 40
207084060
$2.22
18
Stainless, Flat Washer 8 mm
234081600
$0.55
19
Flat Washer 8 mm, Stainless
234082600
$2.43
20
Hex. Elastic Nut M8
232581600
$1.48
21
Loctite 243, 10 ml
293800060
$21.49
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
23
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
24
Stainless Flat Washer M6
234061600
$0.33
25
Anode Zinc
271001813
$18.99
26
Pump Support Insert
204120292
Unavailable
27
Hex. Screw M6 X 16
207161660
$1.59
28
Stainless Flat Washer M6
234061600
$0.33
29
Loctite 271, 10 ml
293800005
$26.99
30
Drive Shaft
204120285
Unavailable
31
Drive Shaft Plug
272000173
$8.68
32
Synthetic Grease, 400 G
293550010
Unavailable
33
C-Clip
271001575
$6.11
34
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
35
O-Ring
293300044
$1.05
36
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
37
Bellows
272000183
$28.99
38
Norma Clamp
293650077
$7.41
39
GRATE SUPPORT - Call your local BRP dealership
204120014
Unavailable
40
Mobile Grate
204120291
Unavailable
41
PLASTIC BUSHING - Call your local BRP dealership
204390001
Unavailable
42
SOCKET SCREW M6 X 8 - Call your local BRP dealership
211000099
Unavailable
43
Loctite 243, 10 ml
293800060
$21.49
44
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
45
Loctite 243, 10 ml
293800060
$21.49
46
Silicone Sealant 51388, 300 ml
296000309
$36.99
47
Instant Gasket
219701421
$51.99
48
Flat Washer M6, Stainless
234062600
$0.77
49
Hex. Elastic Stop Nut M6
232561600
$1.15
