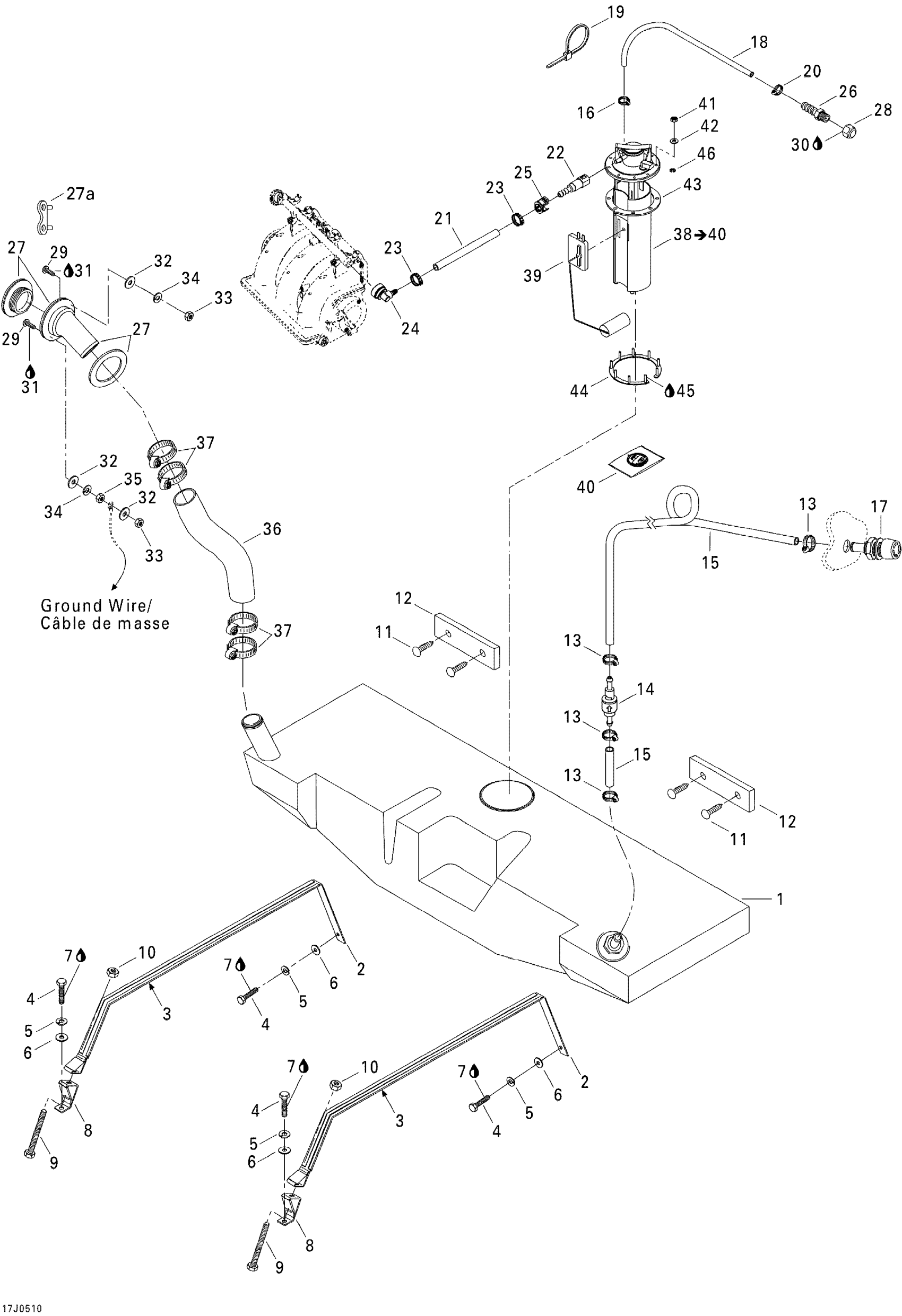

Sea-doo Challenger 180 4-TEC SCIC, 2005 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership

204560326

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Loctite 271, 10 ml

293800005

$26.99

8

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

9

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

10

Hex. Elastic Nut M8

232581600

$1.48

11

Black, Dart

293730006

$0.99

12

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

13

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

14

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

15

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

16

Tridon Gear Clamp

293650170

$1.99

17

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

18

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

19

Tie-Rap 173 mm

293750009

$1.04

20

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

21

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

22

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

23

Oetiker Clamp

293650011

$3.09

24

Elbow Fitting 90°

293710105

$14.22

25

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

26

COUPLER - Call your local BRP dealership

204560265

Unavailable

27

Fuel Filler Neck Ass'y

204560253

Unavailable

27a

FUEL CAP KEY - Call your local BRP dealership

219700344

Unavailable

28

Pipe Cap

204560263

Unavailable

29

Phillips Screw M5 X 3

208553060

Unavailable

30

Was 293800013 Loctite 56765

219704454

$65.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Flat Washer M5, Stainless

234051600

$0.77

33

Hex. Nut M5

232051600

$1.15

34

Helical Lock Washer M5

234151601

$1.15

35

Hex. Nut M5

232051600

$1.15

36

NECK FILLER HOSE - Call your local BRP dealership

219700374

Unavailable

37

Norma Clamp

293650081

$12.18

38

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

39

Sensor Level

270600012

Unavailable

40

Fuel Filter, Bosch

219700368

$39.99

41

Elastic Stop Nut 5 mm

232551200

$1.47

42

Flat Washer 5 mm, Stainless

234052400

$2.85

43

Gasket

293250088

$14.99

44

C-Ring, 9 Studs

275500679

$77.49

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

46

Circlip 5 mm

293370002

$5.50
