- Challenger 180 4-TEC SCIC, 2005
01- Cooling System

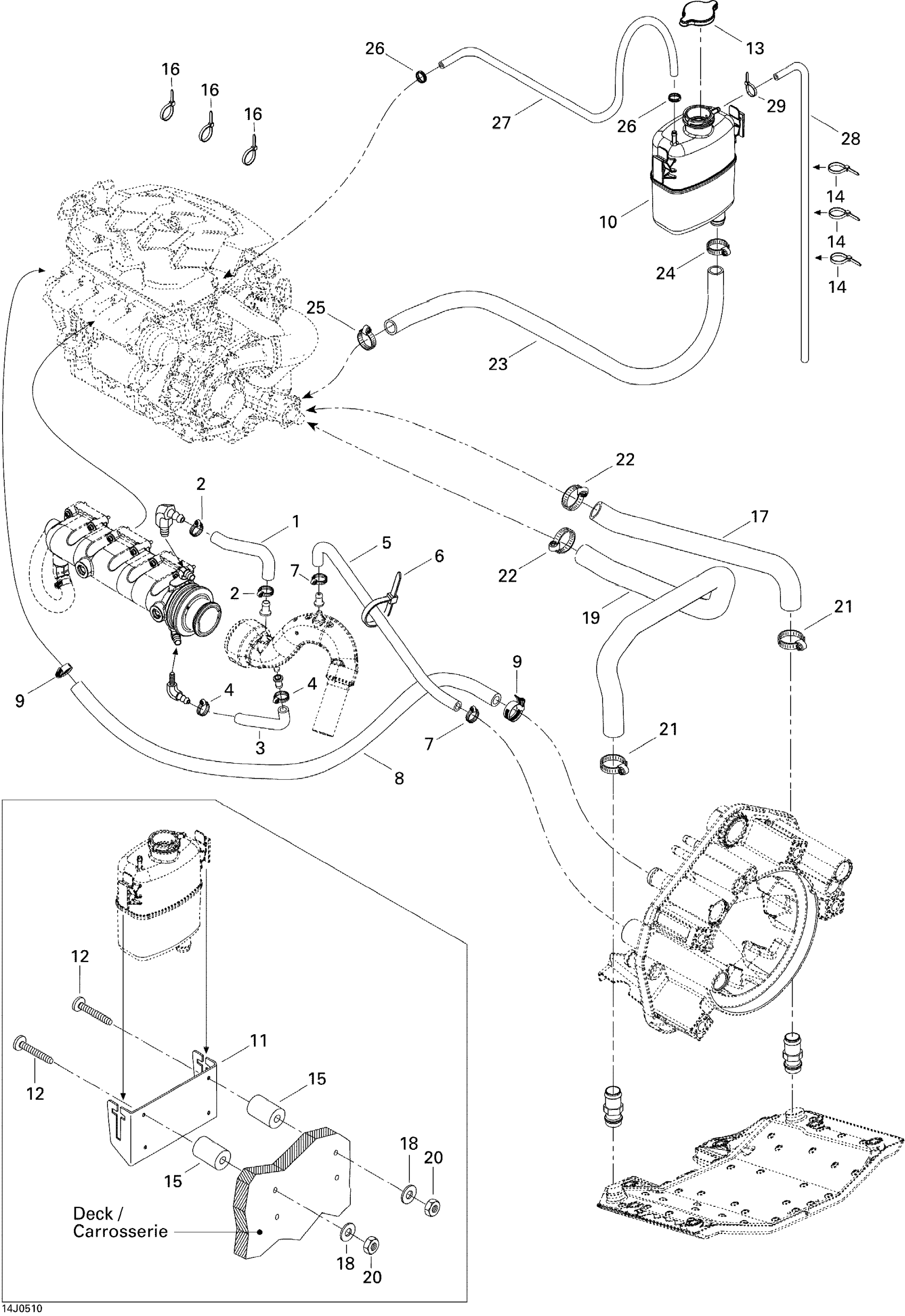

Sea-doo Challenger 180 4-TEC SCIC, 2005 01- Cooling System Diagram
#
Description
Price
1
UPPER FORMED HOSE - Call your local BRP dealership
276000103
Unavailable
2
Tridon Gear Clamp
293650172
$3.09
3
Lower Formed Hose
276000104
Unavailable
4
Tridon Gear Clamp
293650172
$3.09
5
Was 276000001 Hose 12.5 mm
219704394
$51.99
6
Tie Wrap 368 mm
293750008
$1.04
7
Tridon Gear Clamp
293650172
$3.09
8
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
9
Tridon Gear Clamp
293650051
$4.19
10
Coolant Tank
276000086
$109.99
11
Coolant Tank Bracket
204300165
Unavailable
12
Phillips Screw M5 X 35
208653560
$2.22
13
Pressure Cap | Includes 720 to 720a
276000100
$25.99
14
Tie Wrap 142 mm
293750002
$1.25
15
BUSHING - Call your local BRP dealership
204300166
Unavailable
16
Tie Wrap 142 mm
293750002
$1.25
17
RH Radiator Hose
276000248
$58.99
18
Flat Washer 5 mm, Stainless
234052600
$0.77
19
LH RADIATOR HOSE - Call your local BRP dealership
276000250
Unavailable
20
Hex. Elastic Nut M5 | X
232551600
$1.15
21
Tridon Gear Clamp
293650045
$5.69
22
Tridon Gear Clamp
293650045
$5.69
23
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
24
Tridon Gear Clamp
293650051
$4.19
25
Tridon Gear Clamp
293650019
$5.82
26
Oetiker Gear Clamp
293650025
$3.09
27
Was 275500549 Hose 1/4"
219704357
$194.99
28
Polyurethane Hose 10000Mm Long
219704410
$56.99
29
Tie Wrap 94 mm | 4X4
293750001
$1.03
