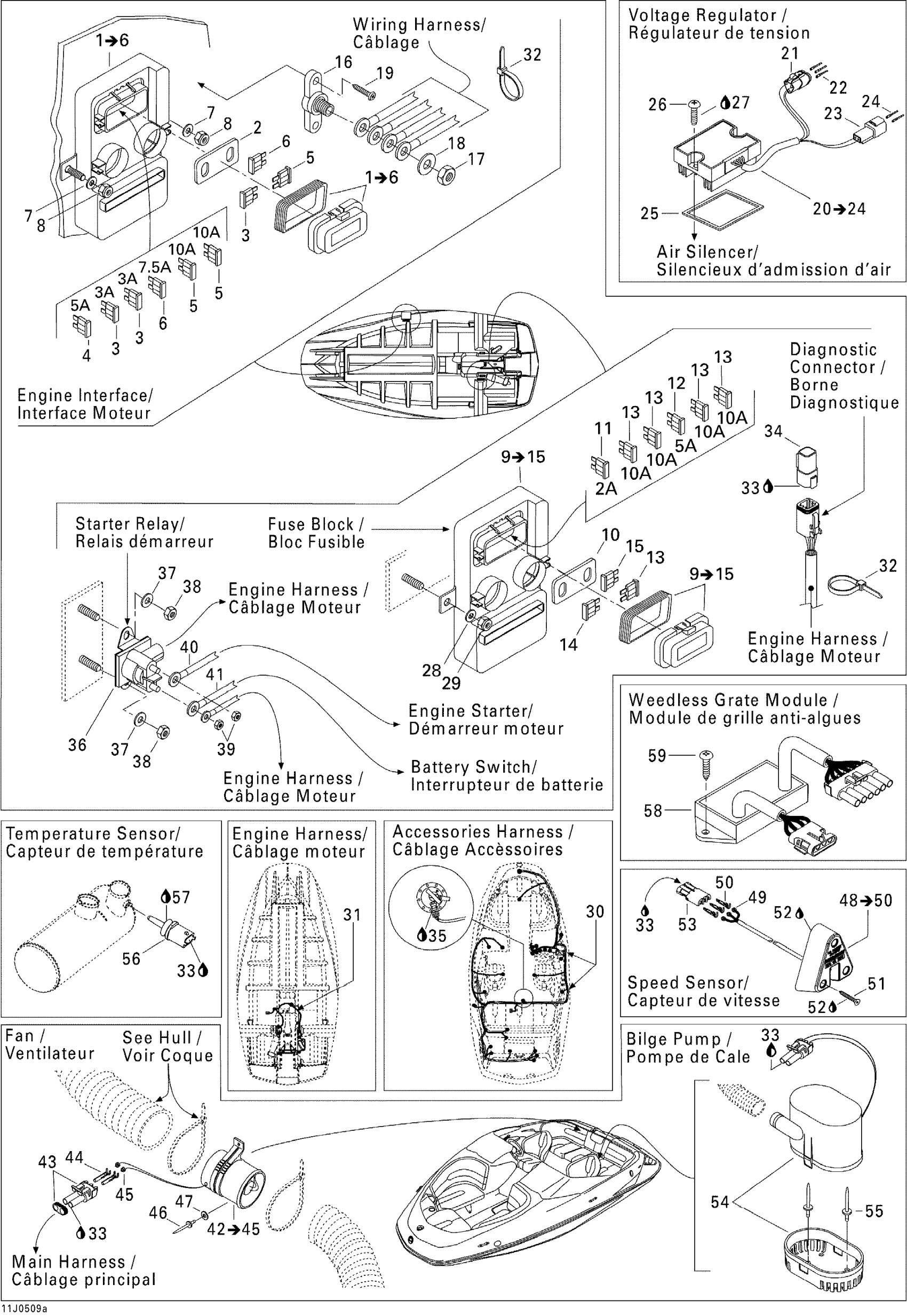

Sea-doo Challenger 180 4-TEC SC, 2005 Electrical Accessories 1 Diagram

#

Description
Price

1

SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6

204470771

Unavailable

2

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

Fuse, 10 Amperes | North America

278001197

$2.21

6

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

11

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

12

Fuse, 5 Amperes | CE

278000344

$3.28

13

Fuse, 10 Amperes | North America

278001197

$2.21

14

Fuse, 20 Amperes

403003900

Unavailable

15

Fuse, 30 Amperes

410917200

$3.28

16

Ground Post

204470715

Unavailable

17

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

18

Flat Washer 10 mm, Stainless

234001600

$1.15

19

SCREW-PAN HD.#10 X 1 BLACK - Call your local BRP dealership

204100115

Unavailable

20

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

21

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

22

Female Terminal

278000632

$2.09

23

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

24

Male Terminal

515175568

$9.12

25

SEAL - Call your local BRP dealership

293250123

Unavailable

26

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

Flat Washer M6, Stainless

234062600

$0.77

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

Accessories Wiring Harness

204470972

Unavailable

31

Engine Harness

204470973

Unavailable

32

Tie-Rap 180 mm

414115200

$0.11

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

Diagnostic Connector

278002704

$19.49

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

Starter Relay

278003012

$42.49

37

Flat Washer M6, Stainless

234062600

$0.77

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Hex. Elastic Stop Nut M6

232561600

$1.15

40

RED CABLE - Call your local BRP dealership

204470798

Unavailable

41

RED CABLE - Call your local BRP dealership

204470799

Unavailable

42

Fan Ass'y | Includes 44 to 47

204470108

$144.99

43

Male Connector, 2 Circuits

278000220

$15.49

44

Female Terminal

278000223

$3.19

45

Wire Seal

278000218

$4.39

46

Pop Rivet 3/16"

293150008

$0.50

47

Flat Washer 5 mm, Stainless

234052600

$0.77

48

Speed Sensor

278001993

$169.99

49

Wire Seal

710000048

$7.69

50

Male Terminal | XT Models

278000222

$3.19

51

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

52

Silicone Sealant 51388, 300 ml

296000309

$36.99

53

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

54

Bilge Pump

204471431

Unavailable

55

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

56

Temperature Sensor

278002895

$39.99

57

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

58

Weedless Grade Module

204470887

Unavailable

59

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable
