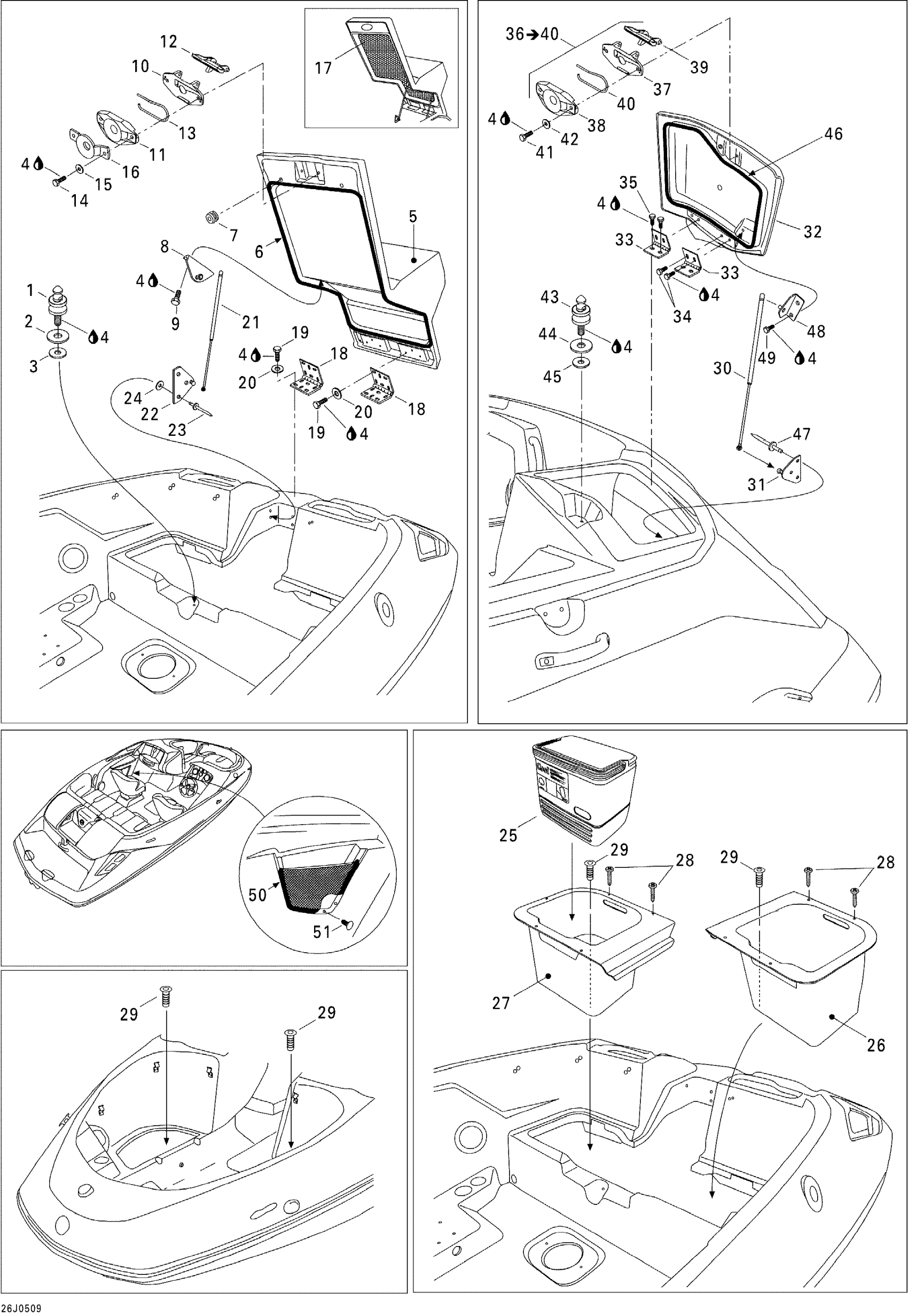

Sea-doo Challenger 180 4-TEC SC, 2005 Storage Compartment Diagram

#

Description
Price

1

Latch Stud

291001420

Unavailable

2

Flat Washer 10 mm, Stainless

234002600

$2.22

3

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

4

Loctite 243, 10 ml

293800060

$21.49

5

Engine Cover

204072246

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

GROMMET - Call your local BRP dealership

293720017

Unavailable

8

Angled Shock Bracket

204071699

Unavailable

9

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

10

Latch Ass'y

269700109

$24.99

11

Latch Ass'y

269700109

$24.99

12

Latch Ass'y

269700109

$24.99

13

Latch Spring

269700017

$9.19

14

Hex. Screw M6 X 25

207162560

$1.47

15

Stainless Flat Washer M6

234061600

$0.33

16

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

17

FOAM - ACOUSTIC - Call your local BRP dealership This part replaces 204073316.

291003867

Unavailable

18

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

19

Hex. Screw M6 X 25

207162560

$1.47

20

Stainless Flat Washer M6

234061600

$0.33

21

GAS SHOCK - Call your local BRP dealership

204071959

Unavailable

22

Shock Bracket

204071673

Unavailable

23

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

24

Flat Washer M5, Stainless

234051600

$0.77

25

16-QT COOLER - Call your local BRP dealership

291003362

Unavailable

26

Rear Storage Box, Port Side | Port Side

204072090

Unavailable

27

Rear Storage Box, Starboard | Starboard

204072091

Unavailable

28

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

29

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

30

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

31

RH SHOCK BRACKET - Call your local BRP dealership

204072219

Unavailable

31

LH SHOCK BRACKET - Call your local BRP dealership | Port Side

204072220

Unavailable

32

Rear Storage Lid, Port Side | Port Side

204072073

Unavailable

32

Rear Storage Lid, Starboard | Starboard

204072074

Unavailable

33

SUNDECK HINGE - Call your local BRP dealership

204612769

Unavailable

34

Hex. Cap Screw M6 X 12

207161260

$1.26

35

Hex. Screw M6 X 16

207161660

$1.59

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Latch Ass'y

269700109

$24.99

38

Latch Ass'y

269700109

$24.99

39

Latch Ass'y

269700109

$24.99

40

Latch Spring

269700017

$9.19

41

Hex. Screw M6 X 25

207162560

$1.47

42

Stainless Flat Washer M6

234061600

$0.33

43

Latch Stud

291001420

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

Seal Tray 1000Mm Long

219704368

$13.99

47

Pop Rivet 3/16"

293150043

$2.09

48

Angled Shock Bracket

204071699

Unavailable

49

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

50

Storage Net

204072210

Unavailable

51

Black, Dart

293730006

$0.99
