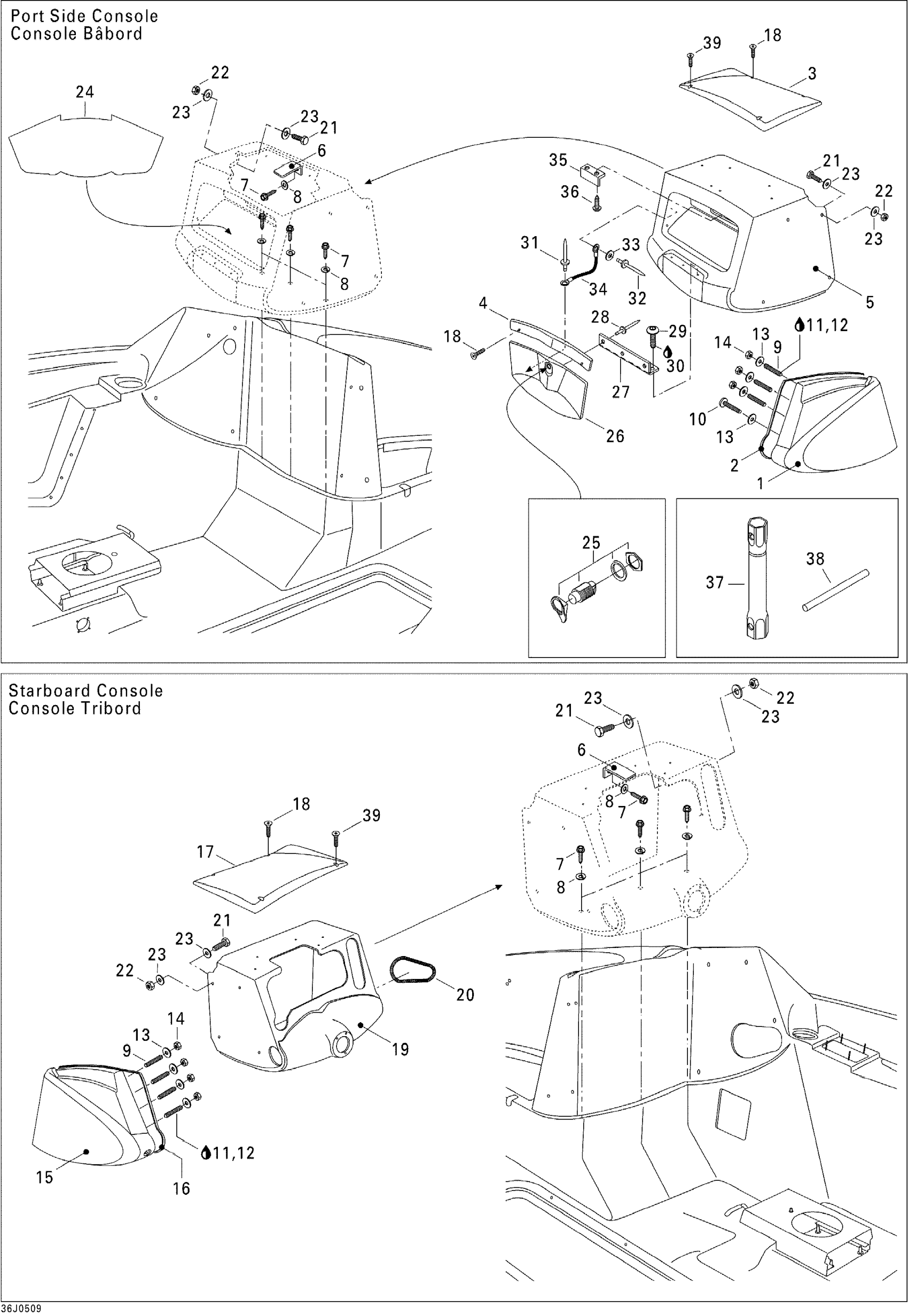

Sea-doo Challenger 180 4-TEC SC, 2005 Front Console And Glove Box Diagram

#

Description
Price

1

Console Cap, Port Side

204072071

Unavailable

2

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

3

Console Top Cap, Port Side

204072287

Unavailable

4

Glove Box Moulding

204072165

Unavailable

5

Console Ass'y, Port Side

204072087

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership

204050138

Unavailable

8

Lock Washer 1/4”

211200025

$1.29

9

SOCKET SET SCREW, M6 X 35 - Call your local BRP dealership

204100159

Unavailable

10

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership

205963060

Unavailable

11

Loctite 271, 10 ml

293800005

$26.99

12

Was 293800041 Loctite Primer 7649

219704458

$39.99

13

Flat Washer M6, Stainless

234062600

$0.77

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Console Cap, Starboard

204072072

Unavailable

16

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

17

Console Top Cap, Starboard

204072288

Unavailable

18

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

19

Console Ass'y, Starboard

204072088

Unavailable

20

Slit Conduit, Meter

204550045

Unavailable

21

Hex. Screw M6 X 35

207163560

$1.49

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Flat Washer M6, Stainless

234062600

$0.77

24

Glove Box Carpet

204072221

Unavailable

25

Latch

204072284

Unavailable

26

Glove Box Door

204072313

Unavailable

27

Hinge, Black

204071945

Unavailable

28

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

29

Socket Head Screw M4 X 16

205441660

$1.47

30

Loctite 243, 10 ml

293800060

$21.49

31

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

32

Pop Rivet 3/16"

293150008

$0.50

33

Flat Washer 5 mm, Stainless

234052600

$0.77

34

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

35

KEEPER - Call your local BRP dealership

204070060

Unavailable

36

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

37

Socket Wrench

529035731

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

PHILLIPS SCREW M4.2 X 45 - Call your local BRP dealership

209944560

Unavailable
