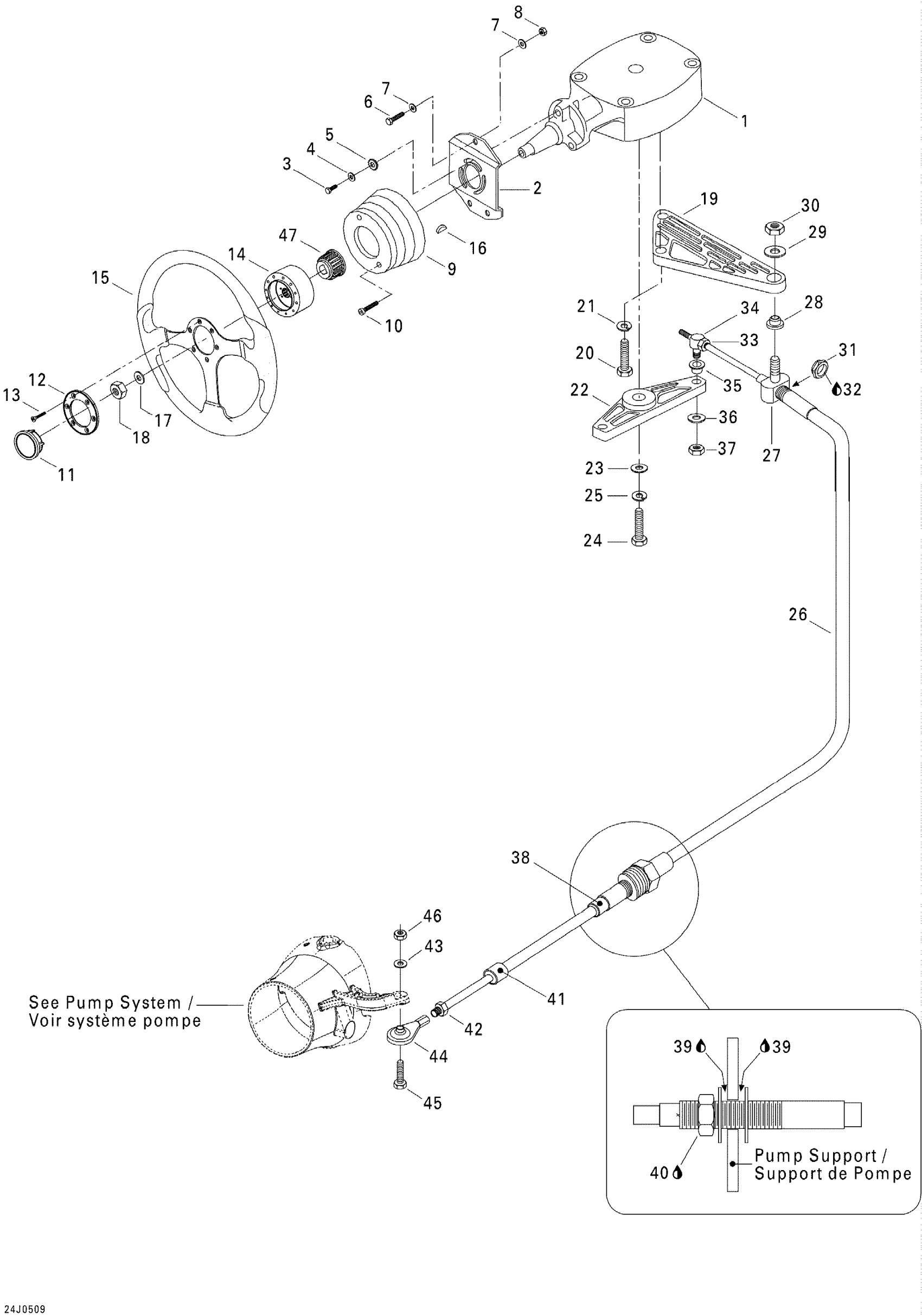

Sea-doo Challenger 180 4-TEC SC, 2005 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Serrated Lock Washer 8 mm

234481608

$1.15

6

Hex. Screw M6 X 40

207164060

$3.38

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

10

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

11

Center Cap

204390327

Unavailable

12

CENTER RING - Call your local BRP dealership

204390423

Unavailable

13

SCREW PACK - Call your local BRP dealership

204390329

Unavailable

14

Nylon Steering Hub

204390443

Unavailable

15

Steering Wheel

204390424

Unavailable

16

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

17

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

18

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

19

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

20

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

21

Lock Washer 1/4”

211200025

$1.29

22

ARM - Call your local BRP dealership

204390040

Unavailable

23

Flat Washer M6, Stainless

234062600

$0.77

24

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

25

Lock Washer 1/4”

211200025

$1.29

26

STEERING CABLE - Call your local BRP dealership

204390434

Unavailable

27

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

28

Flanged Bushing

293350014

$12.99

29

Flat Washer 10 mm, Stainless

234001600

$1.15

30

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

31

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

34

PIVOT - Call your local BRP dealership

277000456

Unavailable

35

BUSHING - Call your local BRP dealership

204130095

Unavailable

36

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

37

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

38

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

Loctite 243, 10 ml

293800060

$21.49

41

Terminal Wiper

277000441

$11.99

42

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

43

Stainless Flat Washer M6

234061600

$0.33

44

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

45

Hex. Screw M6 X 35

207063560

$2.22

46

Hex. Elastic Stop Nut M6

232561600

$1.15

47

Steering Hub Insert

204390444

Unavailable
