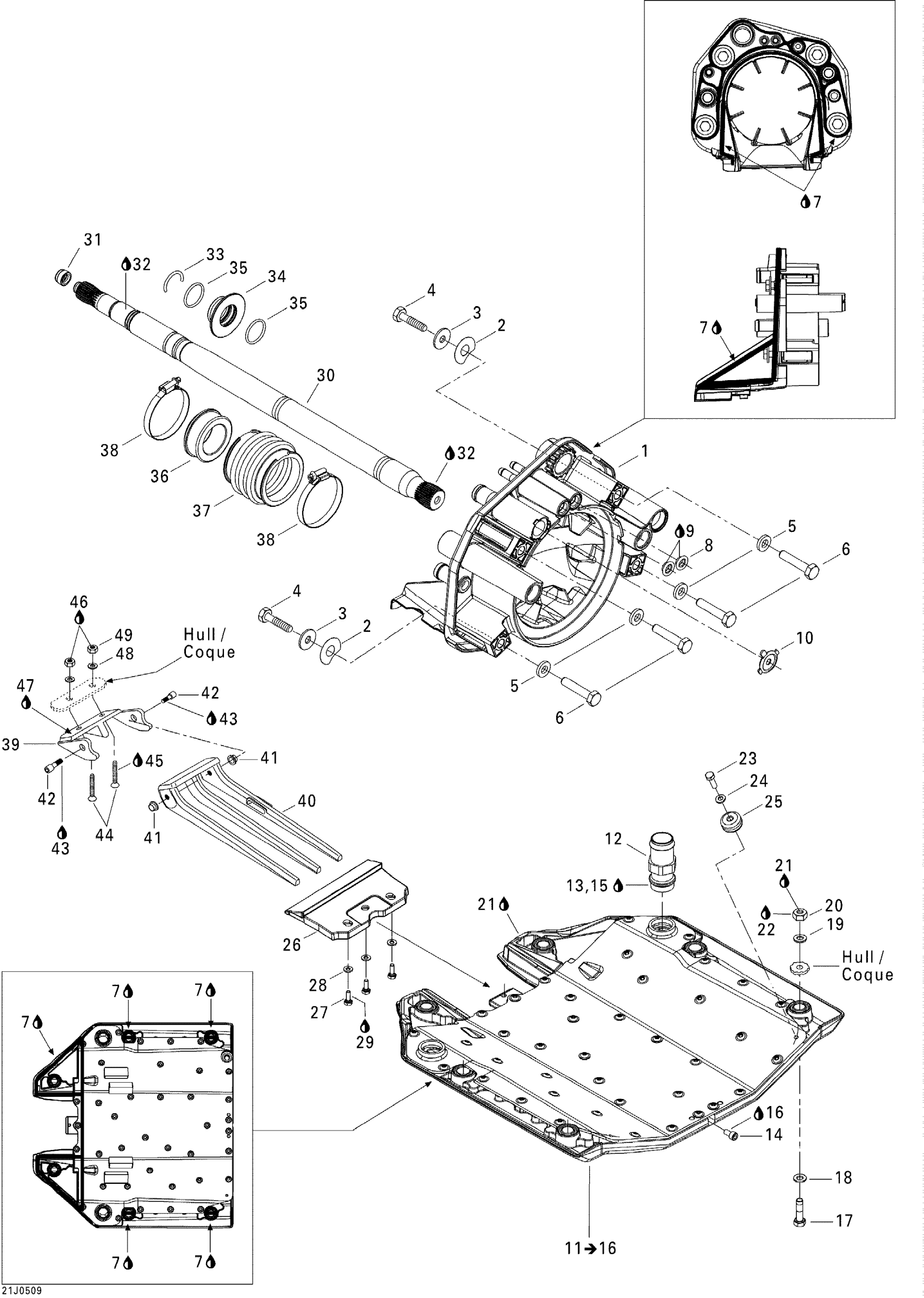

Sea-doo Challenger 180 4-TEC SC, 2005 Propulsion Diagram

#

Description
Price

1

Pump Support

204120277

Unavailable

2

Shim 0.3 mm

272000053

$11.49

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer

211200051

$1.68

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Instant Gasket

219701421

$51.99

8

Watertight Seal

293250084

$7.49

9

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

10

Reducer

291001888

Unavailable

11

Riding Plate | Includes 11 to 16

271001491

Unavailable

12

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

13

Was 293800041 Loctite Primer 7649

219704458

$39.99

14

Socket Drain Plug M6 X 12

250500005

$16.49

15

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

16

Was 293800013 Loctite 56765

219704454

$65.99

17

Hex. Screw M8 X 40

207084060

$2.22

18

Stainless, Flat Washer 8 mm

234081600

$0.55

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

Hex. Elastic Nut M8

232581600

$1.48

21

Loctite 243, 10 ml

293800060

$21.49

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

Anode Zinc

271001813

$18.99

26

Pump Support Insert

204120292

Unavailable

27

Hex. Screw M6 X 16

207161660

$1.59

28

Stainless Flat Washer M6

234061600

$0.33

29

Loctite 271, 10 ml

293800005

$26.99

30

Drive Shaft

204120285

Unavailable

31

Drive Shaft Plug

272000173

$8.68

32

Synthetic Grease, 400 G

293550010

Unavailable

33

C-Clip

271001575

$6.11

34

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

35

O-Ring

293300044

$1.05

36

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

37

Bellows

272000183

$28.99

38

Norma Clamp

293650077

$7.41

39

GRATE SUPPORT - Call your local BRP dealership

204120014

Unavailable

40

Mobile Grate

204120291

Unavailable

41

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

42

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

43

Loctite 243, 10 ml

293800060

$21.49

44

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

45

Loctite 243, 10 ml

293800060

$21.49

46

Silicone Sealant 51388, 300 ml

296000309

$36.99

47

Instant Gasket

219701421

$51.99

48

Flat Washer M6, Stainless

234062600

$0.77

49

Hex. Elastic Stop Nut M6

232561600

$1.15
