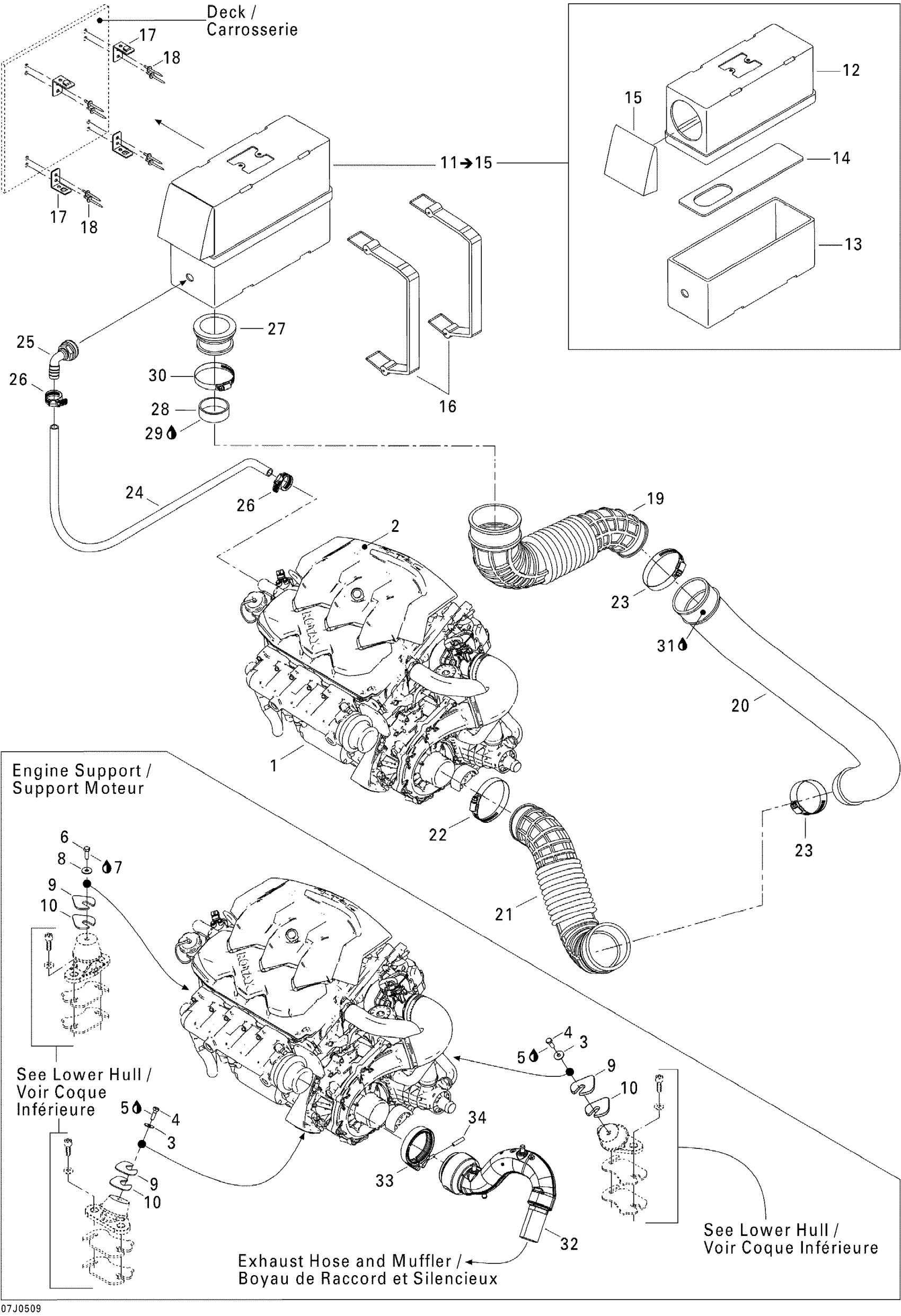

Sea-doo Challenger 180 4-TEC SC, 2005 Engine And Air Intake Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503 SC»

270000644

Unavailable

1

REBUILD-LONG BLOCK 1503BV - Call your local BRP dealership

421000653

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

10

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

11

Air Silencer Ass'y | Includes 13 to 14

204250333

Unavailable

12

Air Silencer, Upper

204250260

Unavailable

13

Air Silencer, Bottom

204250334

Unavailable

14

Air Silencer Divider

204250324

Unavailable

15

Air Silencer Hood

204250270

Unavailable

16

Retainer Strap

293850097

$11.64

17

Strap Clip 90°

204060017

Unavailable

18

Pop Rivet 3/16"

293150008

$0.50

19

Intake Hose

204250331

Unavailable

20

Intake Hose

204250332

Unavailable

21

Intake Hose

204250331

Unavailable

22

Tridon Clamp

293650179

$11.49

23

Tridon Clamp

293650179

$11.49

24

HOSE 3/4 - Call your local BRP dealership

204250353

Unavailable

25

Fitting 90°

204250335

Unavailable

26

Tridon Gear Clamp

293650051

$4.19

27

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

28

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

29

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

30

Tridon Clamp

293650179

$11.49

31

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

32

EXHAUST PIPE - Call your local BRP dealership

274001089

Unavailable

33

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

34

Polyurethane Hose 10000Mm Long

219704410

$56.99
