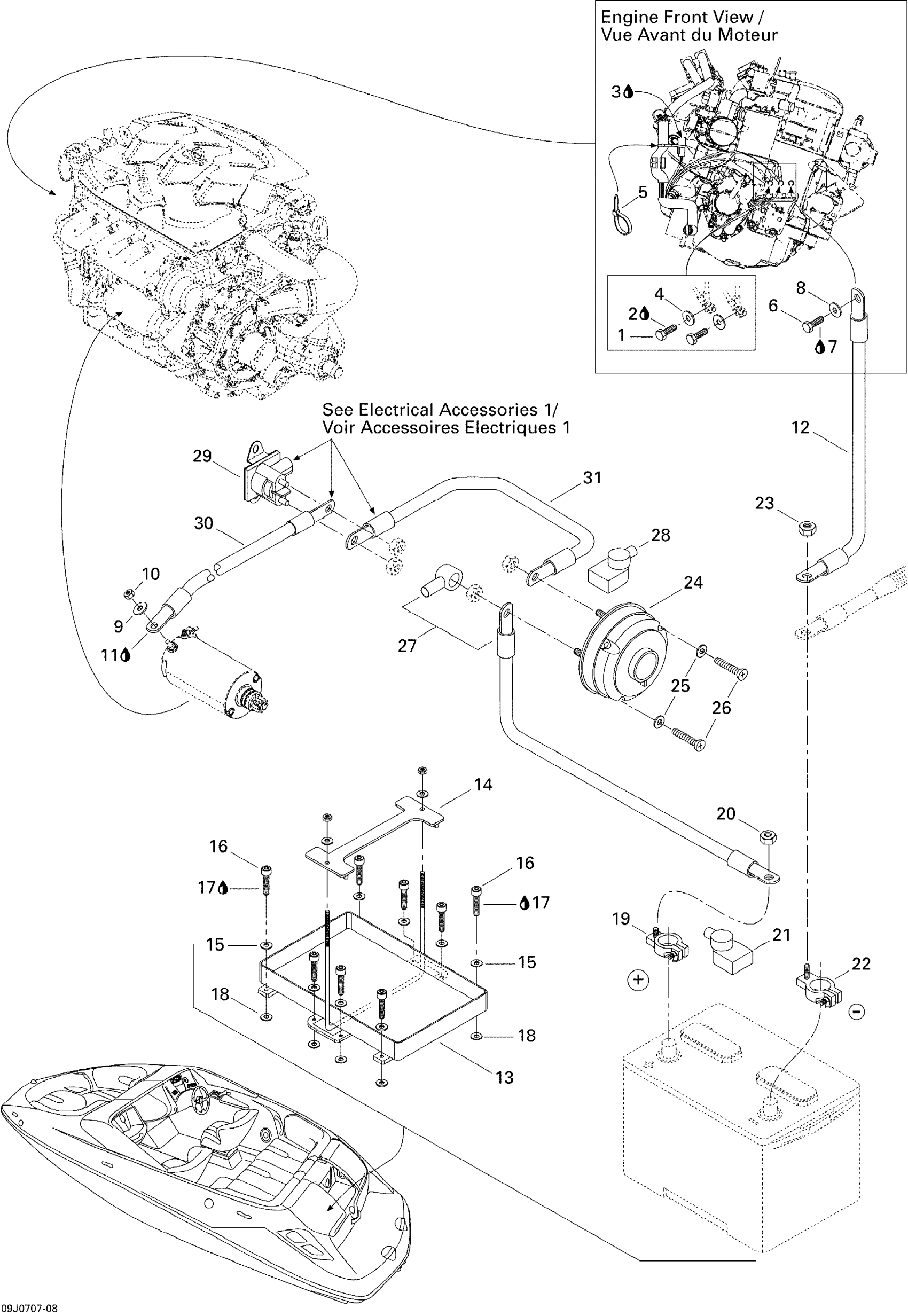

Sea-doo Challenger 180 215 IC, 2007 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

4

Stainless Flat Washer M6

234061600

$0.25

5

Tie-Rap 180 mm

414115200

$0.09

6

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.64

9

Stainless Flat Washer M6

234061600

$0.25

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

Not Available As Spare Part - Friction Washer

Unavailable

12

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

13

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

14

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

15

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

16

Socket Head Screw M6 X 25

205062560

$1.42

17

Loctite 243, 10 ml

293800060

$20.77

18

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

19

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

20

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

21

RED BOOT - Call your local BRP dealership

204470269

Unavailable

22

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

23

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

24

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.64

26

PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership

250000089

Unavailable

27

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

28

RED BOOT - Call your local BRP dealership

204470269

Unavailable

29

Starter Relay

278003012

$35.07

30

RED CABLE - Call your local BRP dealership

204470798

Unavailable

31

RED CABLE - Call your local BRP dealership

204470799

Unavailable
