- Challenger 180 215 IC, 2007
10- Electrical Accessories 2

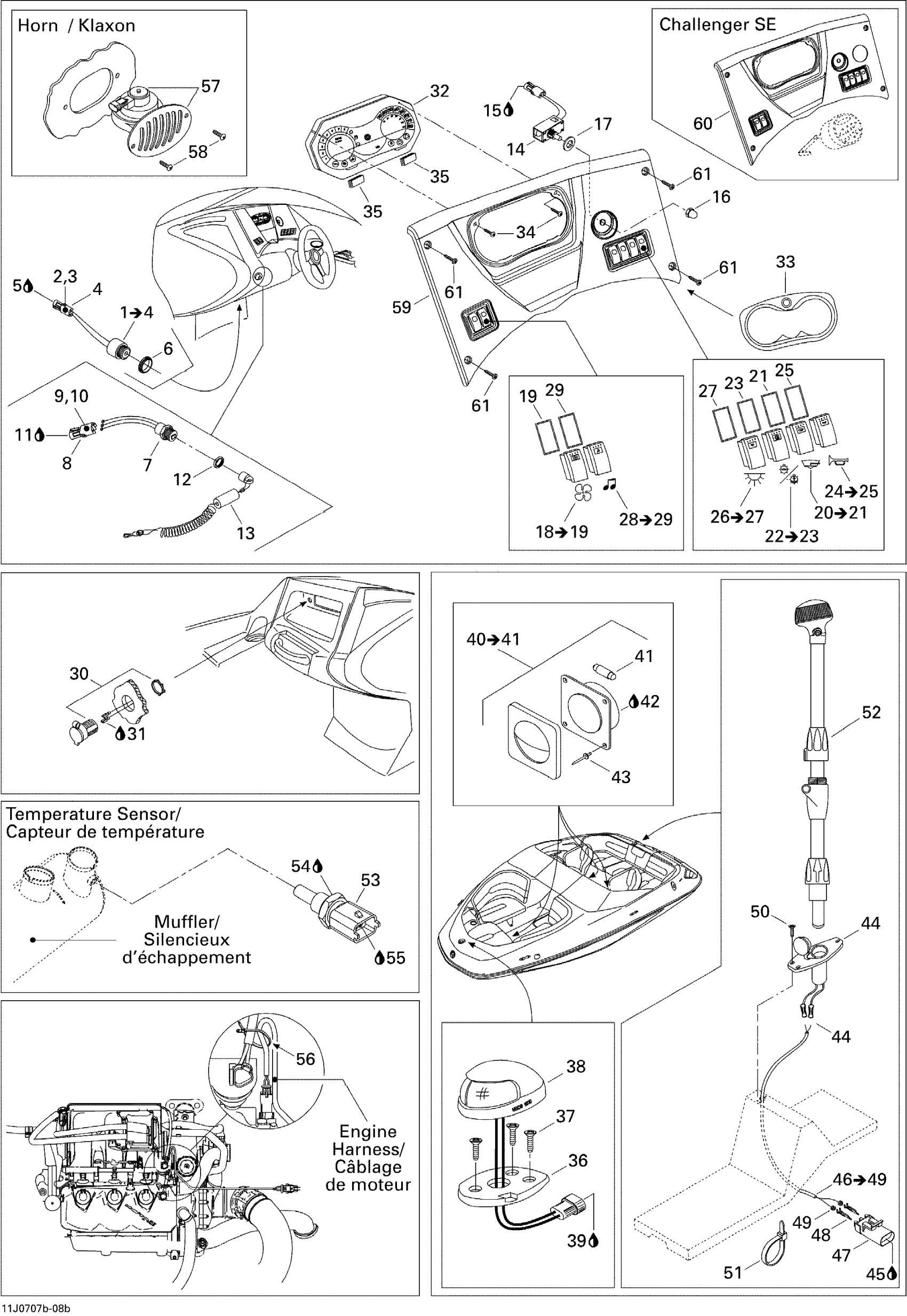

Sea-doo Challenger 180 215 IC, 2007 10- Electrical Accessories 2 Diagram
#
1
Buzzer Ass'y
204470913
$92.99
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Female Housing, 2 Circuits
278000217
$9.59
5
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
6
Buzzer Nut
278000707
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Housing, 3 Circuits
278000273
$9.59
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
12
Safety Nut (DESS Switch)
278002963
$3.28
13
Safety Lanyard
204471206
$56.99
14
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
17
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
18
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
19
Gasket
204470132
Unavailable
20
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
21
Gasket
204470132
Unavailable
22
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
23
Gasket
204470132
Unavailable
24
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
25
Gasket
204470132
Unavailable
26
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
27
Gasket
204470132
Unavailable
28
STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29
204471116
Unavailable
29
Gasket
204470132
Unavailable
30
DC Outlet
710001248
$37.99
31
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
32
Cluster Gauge
204471378
$899.99
33
Gauge Bezel, Chrome
278002144
$38.99
34
Hex. Flange Screw K40 X 25
241142560
$2.64
35
TRIM - Call your local BRP dealership
293830113
Unavailable
36
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
37
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
38
Front Lamp
204470372
Unavailable
39
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
40
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
41
BULB - Call your local BRP dealership
204470081
Unavailable
42
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
43
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
44
REAR LIGHT BASE - Call your local BRP dealership
204470990
Unavailable
45
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
46
REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42
204470980
Unavailable
47
Female Housing, 2 Circuits
278000217
$9.59
48
Male Terminal | XT Models
278000222
$3.19
49
Wire Seal
278000218
$4.39
50
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
51
Tie Wrap 142 mm
293750002
$1.25
52
REAR LIGHT POLE - Call your local BRP dealership
204470979
Unavailable
53
Temperature Sensor
278002895
$39.99
54
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
55
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
56
Tie Wrap 142 mm
293750002
$1.25
57
HORN - Call your local BRP dealership
204470801
Unavailable
58
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
59
Fascia
204471106
Unavailable
60
Not Available As Spare Parts
XXX
Unavailable
61
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
