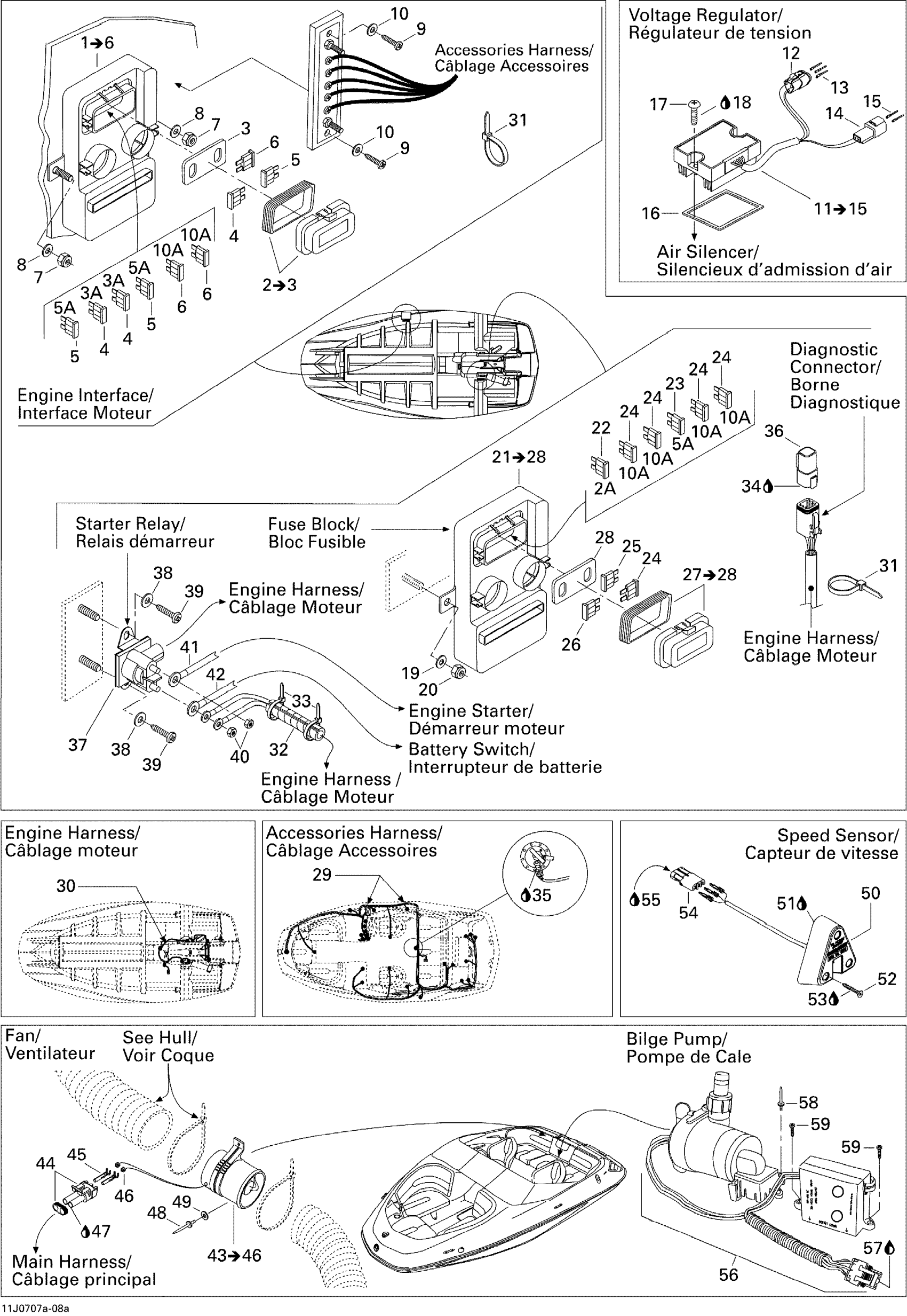

Sea-doo Challenger 180 215 IC, 2007 Electrical Accessories 1 Diagram

#

Description
Price

1

Simple Engine Interface | Includes 1 to 6

204471102

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.12

6

Fuse, 10 Amperes | North America

278001197

$1.79

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Flat Washer M6, Stainless

234062600

$0.64

9

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

10

Flat Washer 4 mm, Stainless

234041600

$0.91

11

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

12

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

13

Female Terminal

278000632

$1.69

14

Male Housing, 2 Circuits

409206900

$8.72

15

Female Terminal

515175567

$5.85

16

SEAL - Call your local BRP dealership

293250123

Unavailable

17

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

18

Loctite 271, 10 ml

293800005

$20.77

19

Flat Washer M6, Stainless

234062600

$0.64

20

Hex. Elastic Stop Nut M6

232561600

$0.92

21

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

22

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

23

Fuse, 5 Amperes | CE

278000344

$3.12

24

Fuse, 10 Amperes | North America

278001197

$1.79

25

Fuse, 20 Amperes

409003900

$3.12

26

Fuse, 30 Amperes

410917200

$3.12

27

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

28

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

29

Accessories Wiring Haness

204471104

Unavailable

30

Engine Harness

204470973

Unavailable

31

Tie-Rap 180 mm

414115200

$0.09

32

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

33

Tie Wrap 142 mm

293750002

$0.88

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

36

Diagnostic Connector

278002704

$15.57

37

Starter Relay

278003012

$35.07

38

Flat Washer 5 mm, Stainless

234052600

$0.64

39

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

$0.92

41

RED CABLE - Call your local BRP dealership

204470798

Unavailable

42

RED CABLE - Call your local BRP dealership

204470799

Unavailable

43

Fan Ass'y | Includes 44 to 47

204470108

$114.37

44

Male Connector, 2 Circuits

278000220

$11.02

45

Female Terminal

278000223

$2.55

46

Wire Seal

278000218

$3.48

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

Pop Rivet 3/16"

293150008

$0.40

49

Flat Washer 5 mm, Stainless

234052600

$0.64

50

Speed Sensor

278001993

$143.62

51

Silicone Sealant 51388, 300 ml

296000309

$35.72

52

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

53

Silicone Sealant 51388, 300 ml

296000309

$35.72

54

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

55

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

56

BILGE PUMP - Call your local BRP dealership

204471078

Unavailable

57

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

58

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

59

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable
