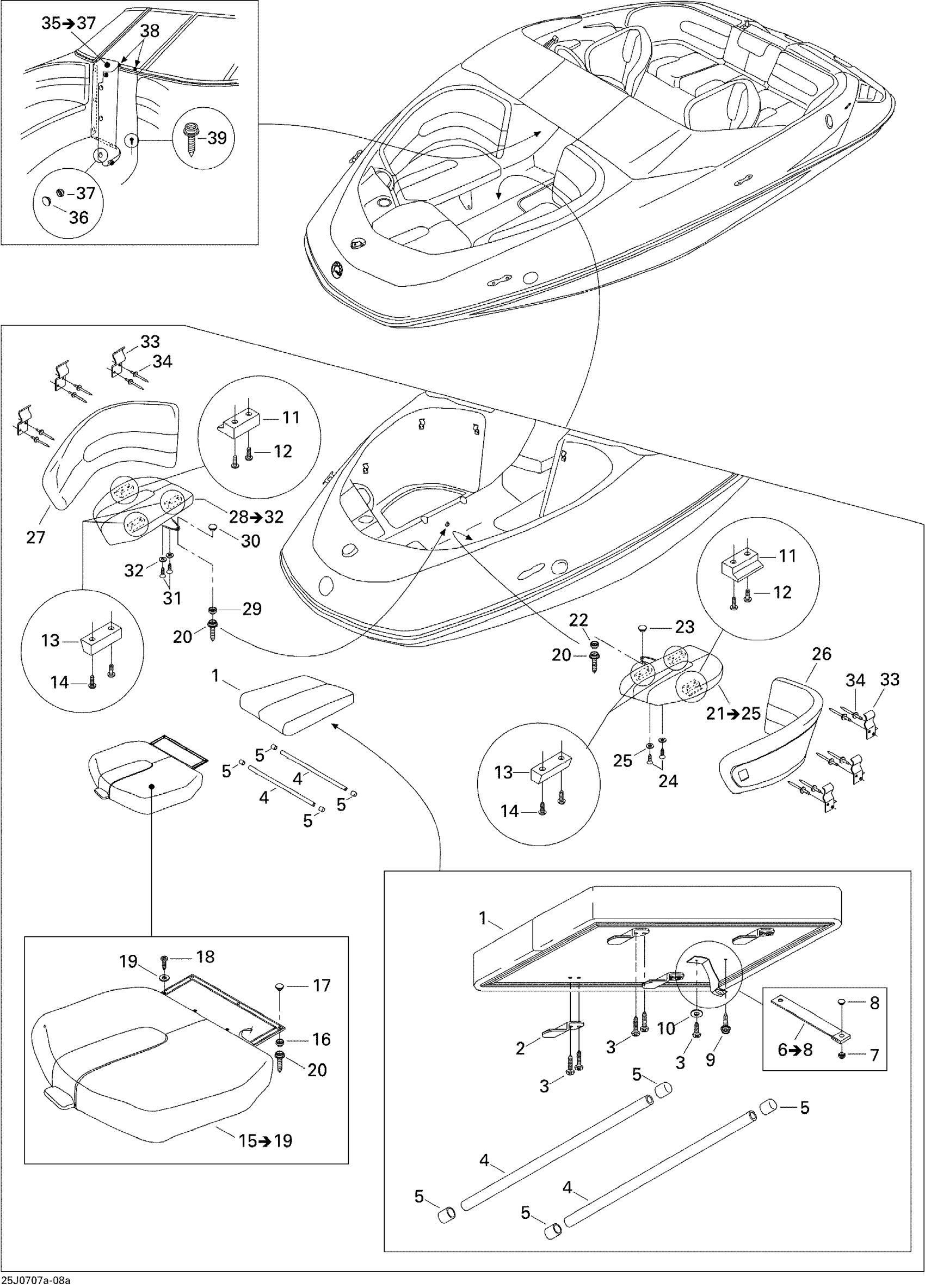

Sea-doo Challenger 180 215 IC, 2007 09- Seat, Front View Diagram

#

Description
Price

1

Seat Ass'y, Bow (Grey)

204613121

Unavailable

1

Seat Ass'y, Bow (Champagne) | Gold

204613528

Unavailable

2

BRACKET - Call your local BRP dealership | Except STD

204613161

Unavailable

3

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

4

TUBE, STAINLESS - Call your local BRP dealership | Except STD

204613164

Unavailable

5

TUBE CAP - Call your local BRP dealership | Except STD

204613165

Unavailable

6

Retaining Strap Ass'y | Includes 27 to 29

204613173

Unavailable

7

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

8

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

9

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

10

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

11

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

12

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

13

LATCH - Call your local BRP dealership

204611805

Unavailable

14

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

15

Front Seat Ass'y, Bow (Blue) | Includes 15 to 19, Blue

204613210

Unavailable

15

Front Seat Ass'y, Bow (Champagne) | Includes 15 to 19, Gold

204613532

Unavailable

16

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

17

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

18

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

20

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

21

Front Seat Ass'y, Port Side (Blue) | Includes 21 to 25, Blue

204613458

Unavailable

21

Front Seat Ass'y, Port Side (Champagne) | Includes 21 to 25, Gold

204613536

Unavailable

22

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

23

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

24

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

25

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

26

Backrest Ass'y, Port Side (Blue) | Blue

204613462

Unavailable

26

Backrest Ass'y, Port Side (Champagne) | Gold

204613538

Unavailable

27

Backrest Ass'y, Starboard (Blue) | Blue

204613466

Unavailable

27

BACKREST ASS'Y, STARBOARD (CHAMPAGNE) - Call your local BRP dealership | Gold

204613540

Unavailable

28

Front Seat Ass'y, Starboard (Blue) | Includes 28 to 32, Blue

204613470

Unavailable

28

Front Seat Ass'y, Starboard (Champagne) | Includes 28 to 32, Gold

204613542

Unavailable

29

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

30

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

31

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

32

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

33

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

34

Pop Rivet 3/16"

293150043

$2.09

35

Walk-thru Curtain | Includes 35 to 37

204613514

Unavailable

36

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

37

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

38

SNAP - Call your local BRP dealership

204613741

Unavailable

39

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable
