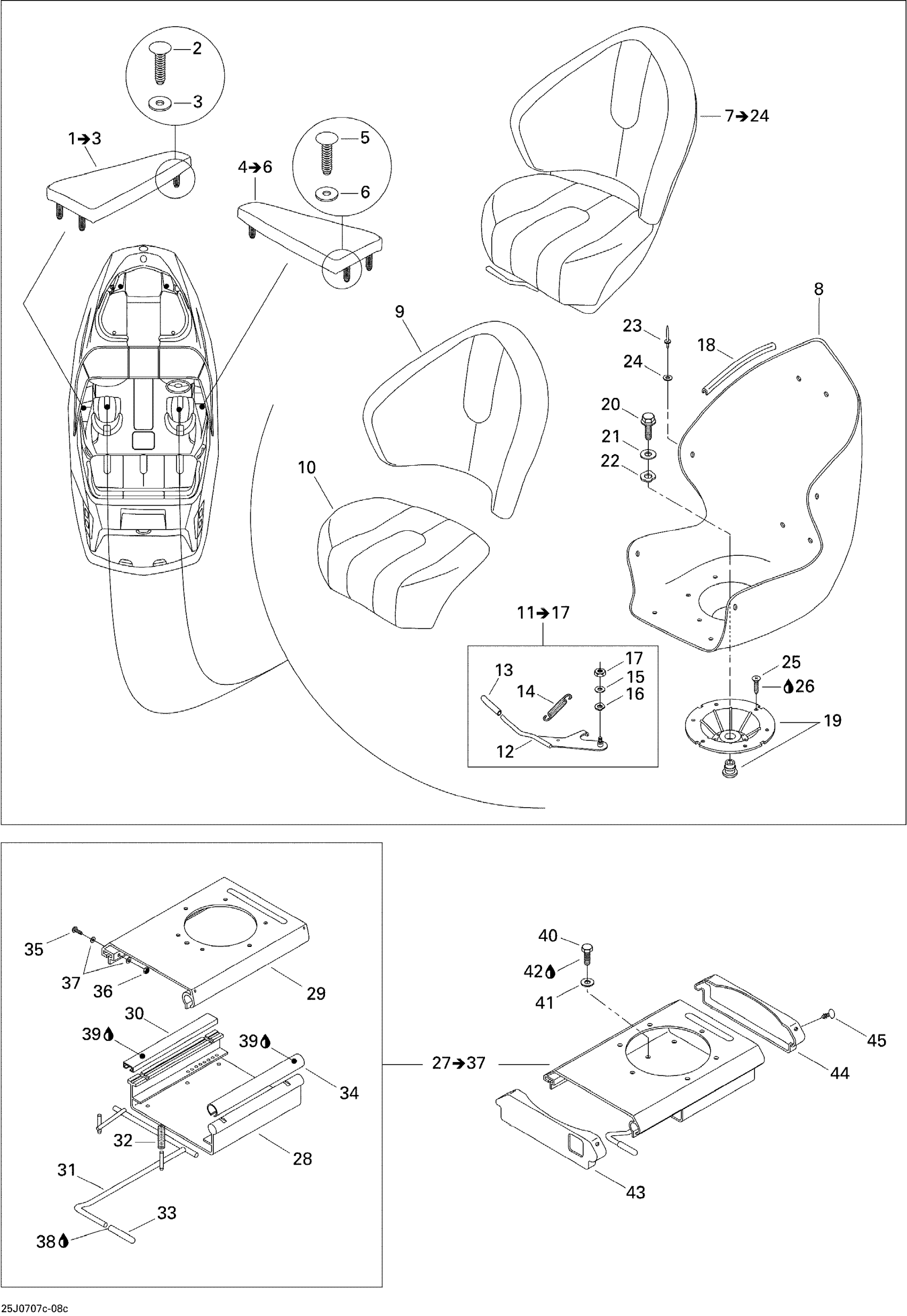

Sea-doo Challenger 180 215 IC, 2007 09- Seat Diagram
#
1
Elbow Rest Ass'y, Port Side (Blue) | Includes 1 to 3, Blue
204612816
Unavailable
1
Elbow Rest Ass'y, Port Side (Champagne) | Includes 1 to 3, Gold
204613555
Unavailable
2
Black Dart
293730014
$0.99
3
Flat Washer M6, Stainless
234062600
$0.77
4
Elbow Rest Ass'y, Starboard (Blue) | Includes 4 to 6, Blue
204612817
Unavailable
4
Elbow Rest Ass'y, Starboard (Champagne) | Includes 4 to 6, Gold
204613557
Unavailable
5
Black, Dart
293730006
$0.99
6
Flat Washer M6, Stainless
234062600
$0.77
7
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Seat Base
204611146
Unavailable
9
Backrest Cushion (Blue) | Blue
204613234
Unavailable
9
Backrest Cushion (Champagne) | Gold
204613560
Unavailable
10
Seat Cushion (Blue) | Blue
204613236
Unavailable
10
Seat Cushion (Champagne) | Gold
204613562
Unavailable
11
Lever Arm Ass’y
204610523
Unavailable
12
Lever Arm
204610524
Unavailable
13
Handle
204610348
Unavailable
14
SPRING - Call your local BRP dealership
204610349
Unavailable
15
Stainless Flat Washer M6
234061600
$0.33
16
Washer
211200059
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
19
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
20
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
21
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
22
WASHER - Call your local BRP dealership
293200056
Unavailable
23
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
24
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
25
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
26
Loctite 243, 10 ml
293800060
$21.49
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Lower Part
269500636
Unavailable
29
Upper Part
269500637
Unavailable
30
Rectangular Bushing
269500638
Unavailable
31
Rod Ass'y
269500639
Unavailable
32
Spring
269500640
Unavailable
33
Handle
204610348
Unavailable
34
Circle Bushing
269500642
Unavailable
35
Hex. Screw M6 X 50
207065060
$2.22
36
Hex. Elastic Stop Nut M6
232561600
$1.15
37
Stainless Flat Washer M6
234061600
$0.33
38
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
39
Synthetic Grease, 400 G
293550010
Unavailable
40
Hex. Screw M6 X 35
207163560
$1.49
41
Flat Washer M6, Stainless
234062600
$0.77
42
Loctite 243, 10 ml
293800060
$21.49
43
Front Protector
204610375
Unavailable
44
Rear Protector
204610376
Unavailable
45
Black, Dart
293730006
$0.99
