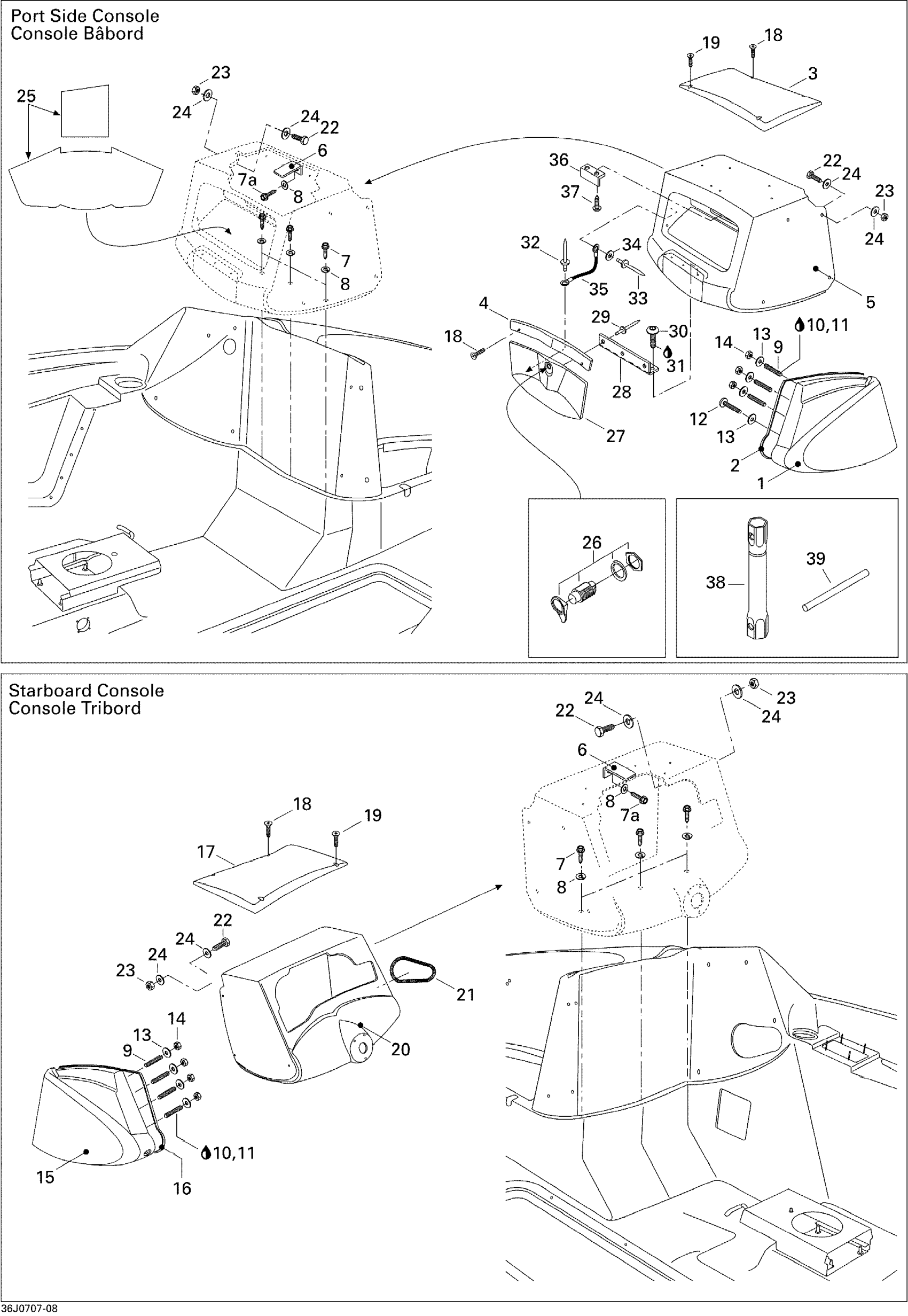

Sea-doo Challenger 180 215 IC, 2007 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Cap, Port Side

204072849

Unavailable

2

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

3

Console Top Cap, Port Side

204072744

Unavailable

4

Glove Box Moulding

204072165

Unavailable

5

Console Ass'y, Port Side

204072755

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership

204050138

Unavailable

7a

SCREW-SELF DRILLING HEX.HD. #14X1-1/2 - Call your local BRP dealership

204100176

Unavailable

8

Lock Washer 1/4”

211200025

$1.29

9

SOCKET SET SCREW, M6 X 35 - Call your local BRP dealership

204100159

Unavailable

10

Loctite 271, 10 ml

293800005

$26.99

11

Was 293800041 Loctite Primer 7649

219704458

$39.99

12

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership

205963060

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Console Cap, Starboard

204072850

Unavailable

16

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

17

Console Top Cap, Starboard

204072745

Unavailable

18

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

19

PHILLIPS SCREW M4.2 X 45 - Call your local BRP dealership

209944560

Unavailable

20

Console Ass'y, Starboard

204072756

Unavailable

21

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

22

Hex. Screw M6 X 35

207163560

$1.49

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Flat Washer M6, Stainless

234062600

$0.77

25

MAT - Call your local BRP dealership

204072704

Unavailable

26

Latch

204072284

Unavailable

27

Glove Box Door

204072313

Unavailable

28

Hinge, Black

204072286

Unavailable

29

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

30

Socket Head Screw M4 X 16

205441660

$1.47

31

Loctite 243, 10 ml

293800060

$21.49

32

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

33

Pop Rivet 3/16"

293150008

$0.50

34

Flat Washer 5 mm, Stainless

234052600

$0.77

35

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

36

KEEPER - Call your local BRP dealership

204072476

Unavailable

37

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable
