- Challenger 180 215 IC, 2007
09- Central Cover And Accessories

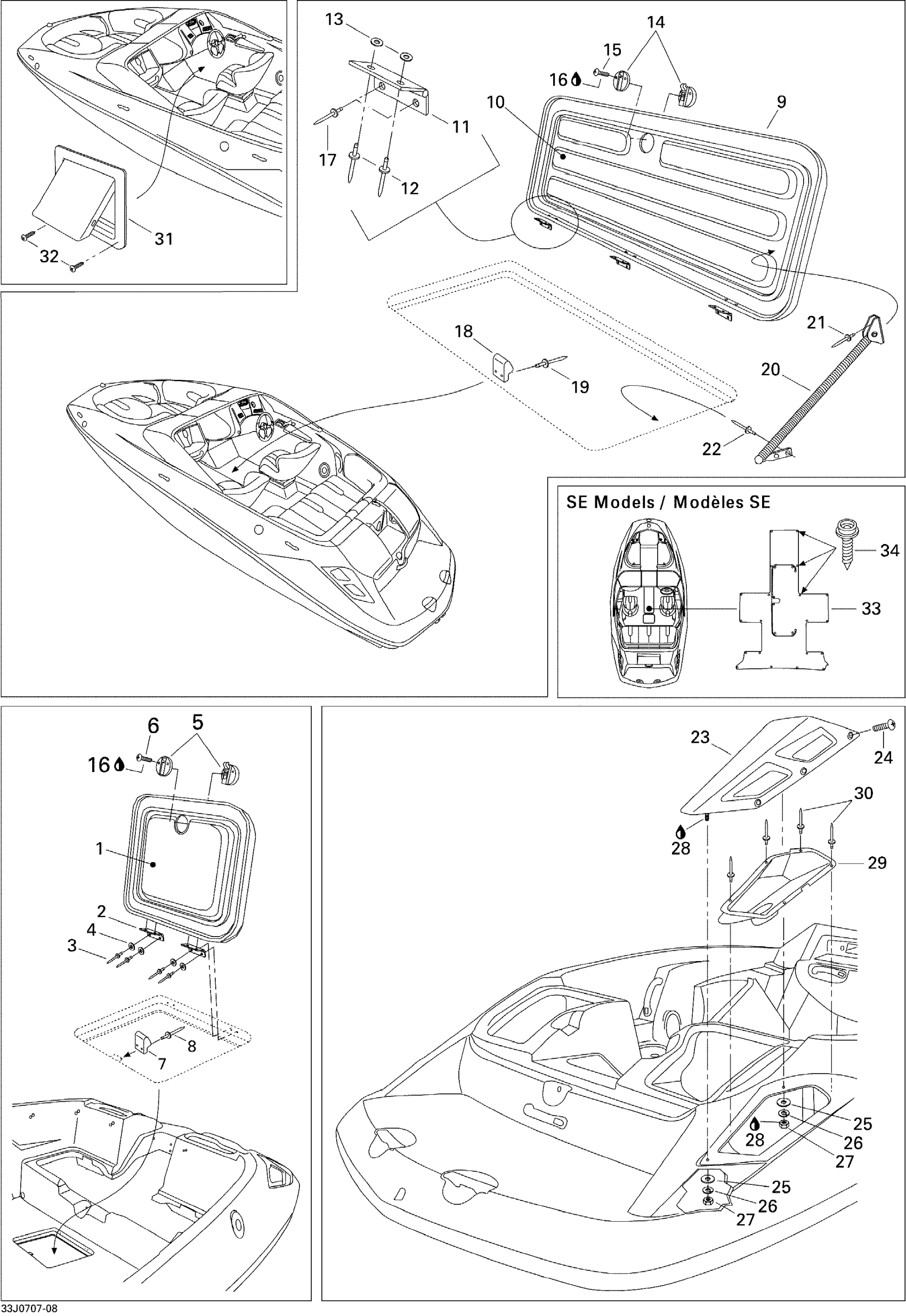

Sea-doo Challenger 180 215 IC, 2007 09- Central Cover And Accessories Diagram
#
Description
Price
1
ACCESS DOOR - Call your local BRP dealership
204072592
Unavailable
2
HINGE - Call your local BRP dealership
204072601
Unavailable
3
Pop Rivet 3/16"
293150088
$0.99
4
Flat Washer M5, Stainless
234051600
$0.77
5
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
6
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
7
LATCH BRACKET - Call your local BRP dealership
204070050
Unavailable
8
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
9
CENTER COVER - Call your local BRP dealership
204073144
Unavailable
10
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
11
HINGE - Call your local BRP dealership
204072601
Unavailable
12
Pop Rivet 3/16"
293150088
$0.99
13
Flat Washer M5, Stainless
234051600
$0.77
14
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
15
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
16
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
17
Pop Rivet 3/16"
293150005
$0.52
18
LATCH BRACKET - Call your local BRP dealership
204070050
Unavailable
19
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
20
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
21
Pop Rivet 3/16"
204000081
$1.49
22
Pop Rivet 3/16"
293150043
$2.09
23
VENT COVER ASS'Y, STARBOARD - Call your local BRP dealership | Starboard
204072293
Unavailable
23
VENT COVER ASS'Y, PORT SIDE - Call your local BRP dealership | Port Side
204072292
Unavailable
24
PHILLIPS SCREW 1 - Call your local BRP dealership
204100154
Unavailable
25
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
26
Lock Washer 1/4”
211200025
$1.29
27
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
28
Loctite 243, 10 ml
293800060
$21.49
29
VENT - INLET / STBD - Call your local BRP dealership | Starboard This part replaces 204072231.
204073836
Unavailable
29
VENT INLET, PORT SIDE - Call your local BRP dealership | Port Side
291003407
Unavailable
30
Pop Rivet 1/8”
293150015
$0.40
31
ACCESS DOOR - Call your local BRP dealership
204072447
Unavailable
32
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
