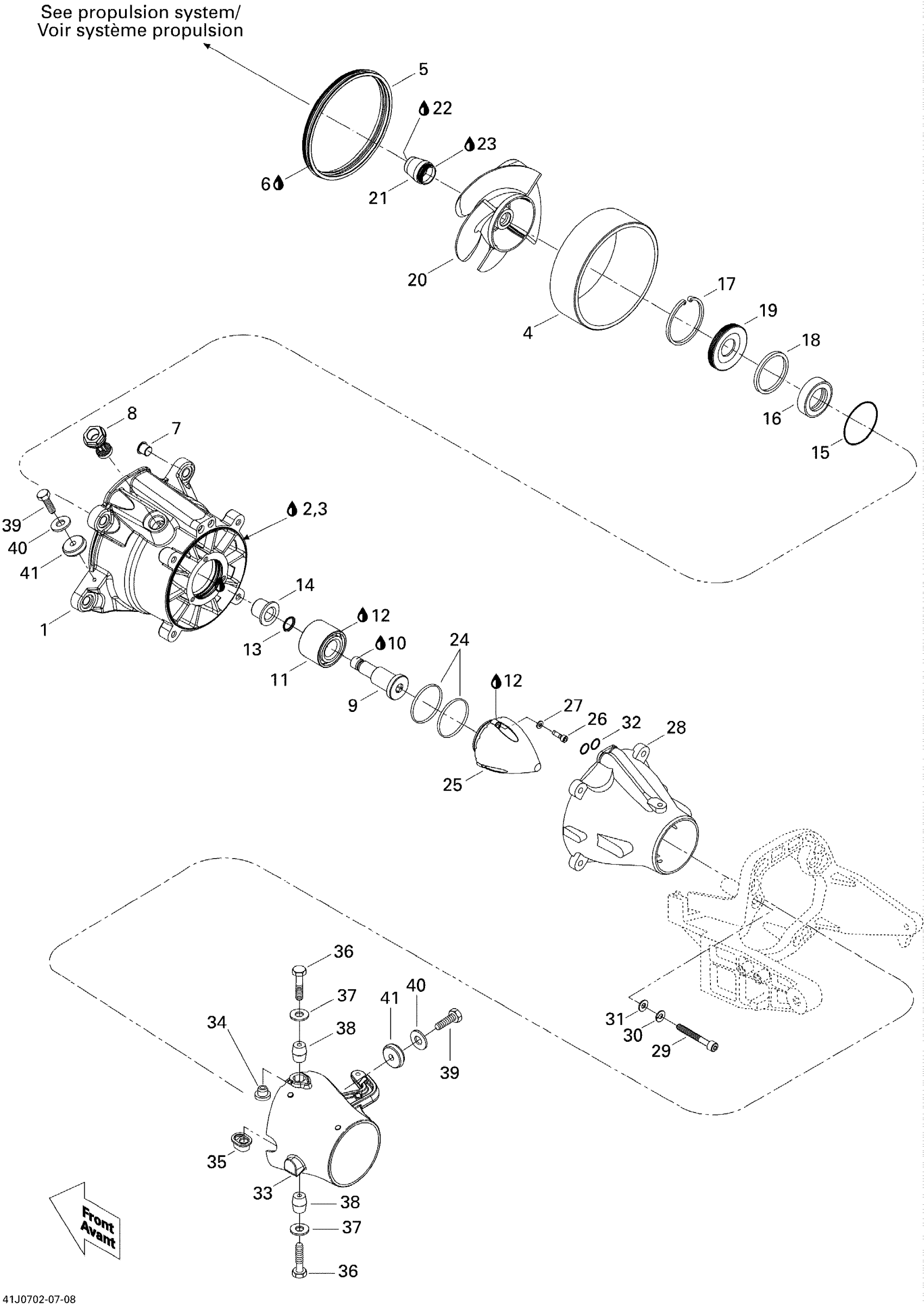

Sea-doo Challenger 180 215 IC, 2007 05- Pump Diagram
#
Description
Price
1
Impeller Housing
267000084
Unavailable
2
Was 293800041 Loctite Primer 7649
219704458
$39.99
3
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
4
Wear Ring
267000372
$84.99
5
Neoprene Seal
293200087
$12.63
6
Glue Tube, Loctite 454, 20 G
413708300
$60.99
7
Bushing
267000093
$9.59
8
Plug | Includes 370z to 370z1
267000282
$19.49
9
Impeller Shaft
267000054
$116.49
10
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
11
Angled Bearing This part replaces 267000030.
267000900
$80.99
12
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
13
O-Ring
505070315
$2.85
14
Shaft Sleeve
267000318
$134.99
15
O-Ring
293300090
$7.20
16
Seal
271002071
$33.99
17
Circlip
293370038
$8.79
18
Spacer
271001393
$8.59
19
Oil Seal
293200089
$19.99
20
Impeller Ass'y This part replaces 267000250.
267000699
$391.99
21
Guard
271002228
$12.99
22
Synthetic Grease, 400 G
293550010
Unavailable
23
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
24
O-Ring
293300086
$3.59
25
Impeller Cover
267000262
$21.99
26
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
27
Stainless Flat Washer M6
234061600
$0.33
28
Black, Venturi - Call your local BRP dealership
204160302
Unavailable
29
Socket Screw M8 X 110, Scotch Grip
231181060
$9.89
30
Lock Washer 8 mm, Stainless
234181601
$0.55
31
Flat Washer M8.5 x 18
293050001
$3.07
32
O-Ring
293300013
$8.18
33
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.
462125
Unavailable
34
Venturi Bushing
293900001
$7.62
35
Plastic Bushing
293900010
$9.59
36
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
37
Flat Washer M8.5 x 18
293050001
$3.07
38
Sleeve
271001816
$14.99
39
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
40
Stainless Flat Washer M6
234061600
$0.33
41
Anode Zinc
271001813
$18.99
