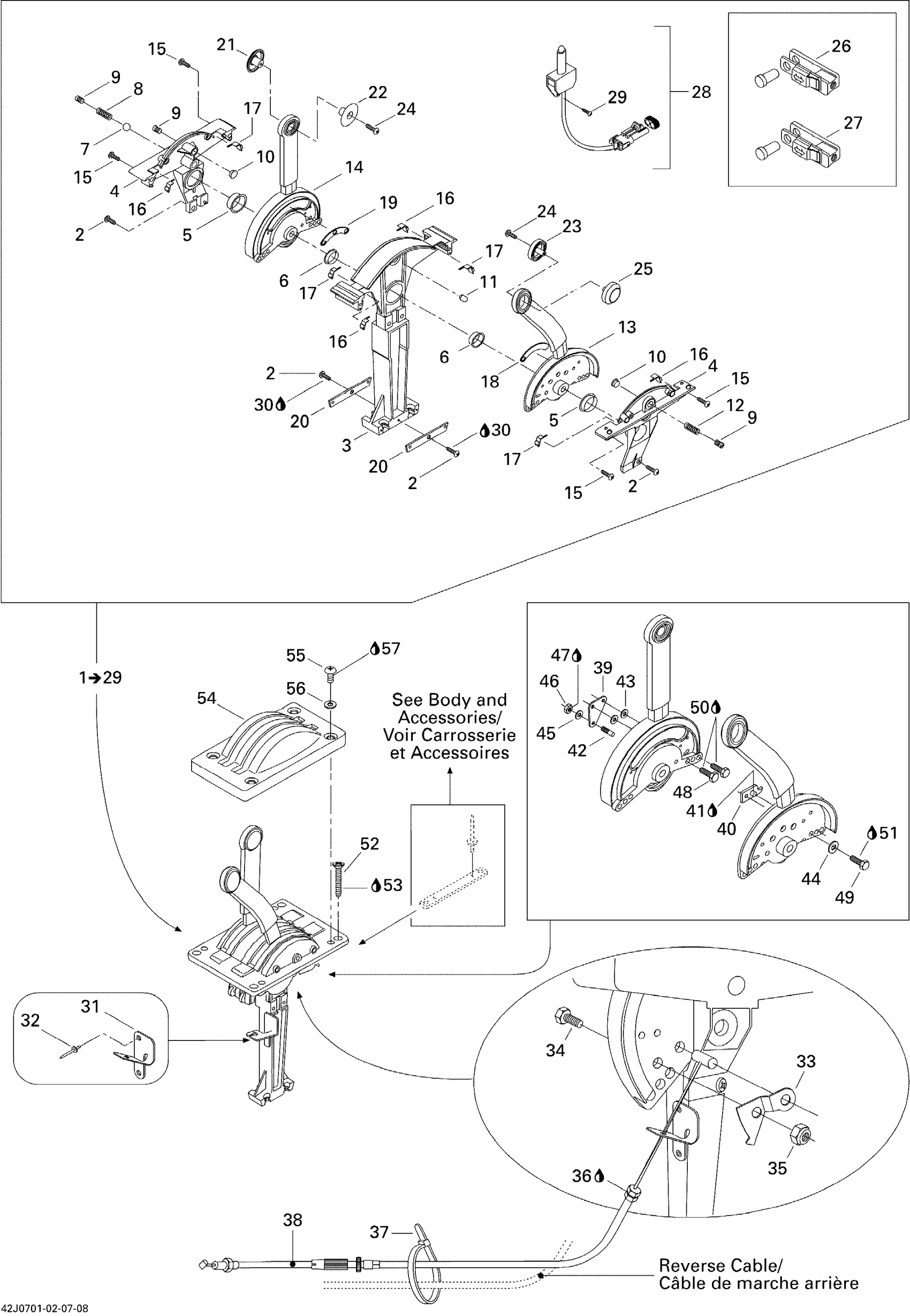

Sea-doo Challenger 180 215 IC, 2007 05- Control Handle Diagram

#

Description
Price

1

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

2

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

3

LH Frame

204390378

Unavailable

4

Half-Case

277000703

Unavailable

5

BUSHING - Call your local BRP dealership

277000397

Unavailable

6

BUSHING - Call your local BRP dealership

277000398

Unavailable

7

BALL - Call your local BRP dealership

277000399

Unavailable

8

SPRING - Call your local BRP dealership

277000400

Unavailable

9

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

10

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

11

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

12

SPRING - Call your local BRP dealership

277000401

Unavailable

13

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

14

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

15

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

16

RH Water Seal

277000423

Unavailable

17

LH Water Seal

277000424

Unavailable

18

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

19

Shift Lever Spacer

277000408

Unavailable

20

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

21

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

22

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

23

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

24

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

25

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

26

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

27

CLEVIS L25 - Call your local BRP dealership

204390225

Unavailable

28

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

29

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

32

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

33

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

34

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

35

Hex. Elastic Nut M5 | X

232551600

$1.15

36

Loctite 243, 10 ml

293800060

$21.49

37

Tie-Rap 180 mm

414115200

$0.11

38

RH THROTTLE CABLE - Call your local BRP dealership

204390576

Unavailable

39

STOP-REVERSE - Call your local BRP dealership

204390369

Unavailable

40

REVERSE CATCH - Call your local BRP dealership

204390373

Unavailable

41

Sealant Loctite 648

219703000

$45.99

42

REVERSE PIN - Call your local BRP dealership

204390370

Unavailable

43

Lock Washer 1/4”

211200025

$1.29

44

Lock Washer 1/4”

211200025

$1.29

45

Lock Washer 1/4”

211200025

$1.29

46

Hex. Elastic Stop Nut M6

232561600

$1.15

47

Loctite 243, 10 ml

293800060

$21.49

48

Hex. Cap Screw M6 X 12

207161260

$1.26

49

Hex. Cap Screw M6 X 12

207161260

$1.26

50

Loctite 243, 10 ml

293800060

$21.49

51

Loctite 243, 10 ml

293800060

$21.49

52

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

53

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

54

Control Cover

204390123

Unavailable

55

Phillips Screw M4 X 10

208641060

$1.01

56

Flat Washer 4 mm

234040600

$0.55

57

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99
