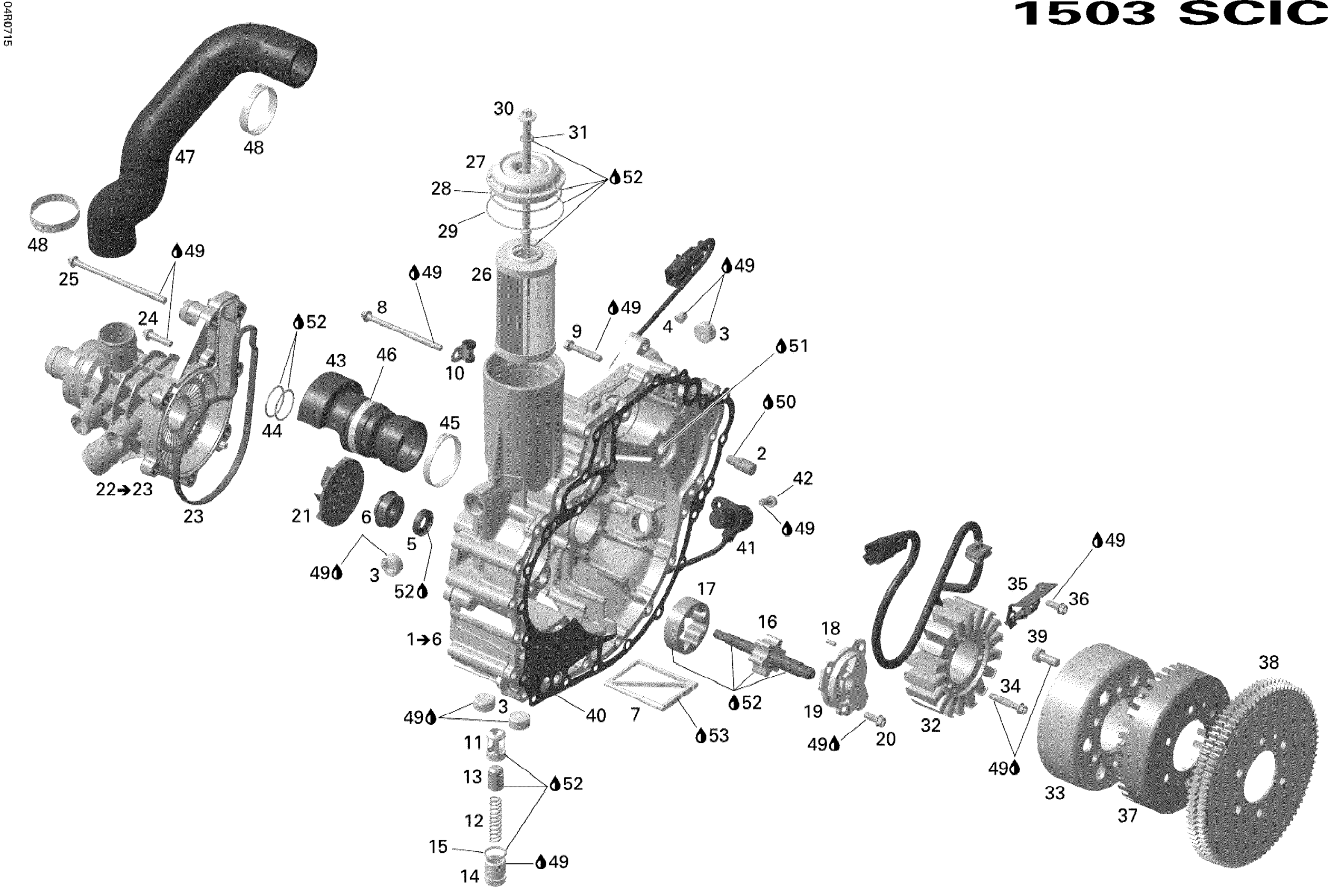

Sea-doo Challenger 180 215 IC, 2007 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/drive Cover Ass'y | Includes 1 to 6

420812622

Unavailable

2

SPRAY NOZZLE - Call your local BRP dealership

420856012

Unavailable

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Oil Seal

420650315

$9.62

6

Rotary Seal

420650371

$35.72

7

Oil Sieve

420956950

$12.48

8

Torx Flange Screw M6 X 85

420641228

$6.11

9

Torx Flange Screw M6 X 35

420440274

$0.83

10

Clamp

420853414

$14.92

11

Valve Seat Sleeve

420256606

$24.02

12

Compression Spring

420939410

Unavailable

13

Piston Valve

420256638

Unavailable

14

Plug Screw M20 X 1.5

420641052

$31.17

15

O-Ring

420230890

$4.41

16

Pump Shaft Ass'y

420837472

$45.47

17

Oil Pump Rotor 16 mm

420956675

$29.22

18

Needle Pin

420929070

$1.56

19

Oil Pump Cover

420811591

$29.87

20

Torx Flange Screw M6 X 16

420641048

$2.46

21

Impeller

420922801

$14.27

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$241.12

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

24

Torx Flange Screw M6 X 25

420641238

$2.68

25

Torx Flange Screw M6 X 105

420641338

$6.11

26

Oil Filter

420956741

$11.14

27

Oil Filter Cover

420610329

$27.27

28

O-Ring

420850500

$2.63

29

O-Ring

420230923

$2.59

30

Oil Filter Screw Kit

295501207

$32.47

31

O-Ring

420950860

$3.20

32

Stator Plate This part replaces 420889721.

420889726

$278.82

33

Magneto Flywheel

420296900

$459.52

34

Torx Flange Screw M6 X 35

420440274

$0.83

35

Retaining Plate

420926300

$12.97

36

Torx Flange Screw M6 X 16

420641048

$2.46

37

Trigger Wheel

420966851

$14.92

38

Starter Double Gear 87/86T

420834871

$250.22

39

Hex Screw

295501162

$11.47

40

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

41

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

42

Torx Flange Screw M6 X 16

420641048

$2.46

43

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$114.37

44

O-Ring

420631612

$3.52

45

Gear Clamp

420851653

$6.11

46

Gear Clamp 46.8-50.0MM

420853023

$6.11

47

Formed Hose

420922822

$53.27

48

Oetiker Clamp

420851687

$9.43

49

Loctite 243, 10 ml

293800060

$20.77

50

Sealant Loctite 648

219703000

$35.72

51

Dow Corning 111, 150 g

413707000

$57.82

52

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

53

Loctite 5910, 300 ml

293800081

$57.99
