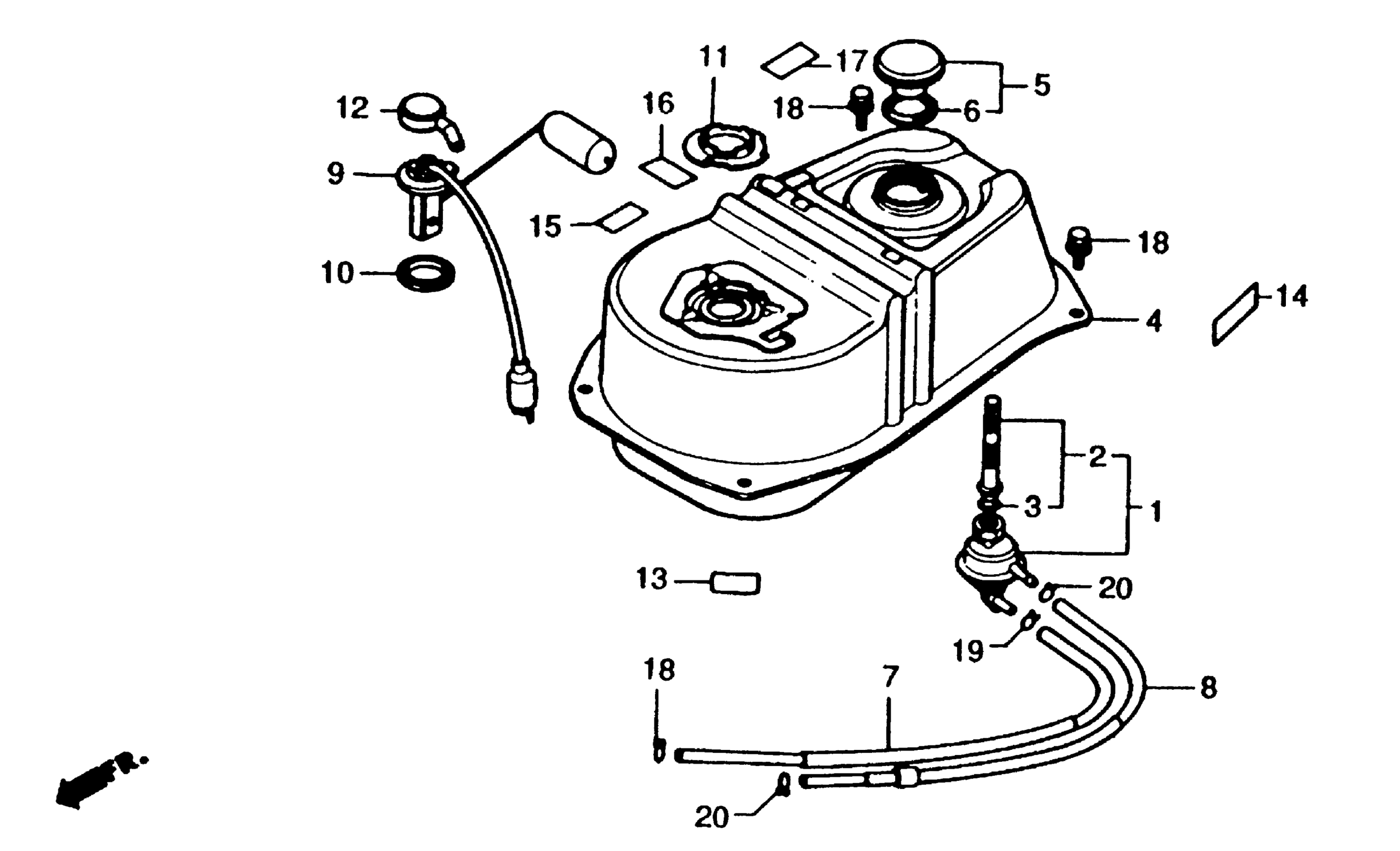

Honda CH80AC (92) ELITE 80, MEX, VIN# 3H1HF031-ND700001 FUEL TANK 86-92 Diagram

#

Description
Price

1

PETCOCK ASSY., AUTO This part replaces 16950-KJ9-751.

16950-KJ9-752

$57.98

1

PETCOCK ASSY., AUTO

16950-KJ9-752

$57.98

2

SCREEN SET, FUEL STRAINER

16952-GM8-305

$19.69

2

SCREEN SET, FUEL STRAINER This part replaces 16952-KJ9-751.

16952-GM8-305

$19.69

3

O-RING

16958-397-771

$5.30

4

TANK, FUEL

17500-GV4-920

Unavailable

5

CAP, FUEL FILLER

17620-GE1-871

Unavailable

6

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

7

TUBE, FUEL

17680-GE1-770

Unavailable

8

TUBE, FUEL

17681-GE1-771

Unavailable

9

FUEL UNIT

37800-GE1-771

Unavailable

10

GASKET, BASE

37801-GA7-700

$5.17

11

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

13

DIAGRAM, VACUUM HOSE ROUTING

87135-GV4-780

Unavailable

14

LABEL, HIGH ALTITUDE

87139-463-670

$7.08

15

LABEL, NOISE INFORMATION

87529-GV4-770

Unavailable

16

LABEL, COLOR (R110) (TYPE10)

87565-GV4-790ZD

Unavailable

17

LABEL, FUEL (TYPEW) This part replaces 87586-MR6-670ZB.

87586-MR6-670ZD

Unavailable

17

LABEL, FUEL (TYPEW)

87586-MR6-670ZD

Unavailable

18

BOLT-WASHER (6X20)

93405-06020-00

$1.87

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

CLIP, TUBE (B8)

95002-02080

$1.80
