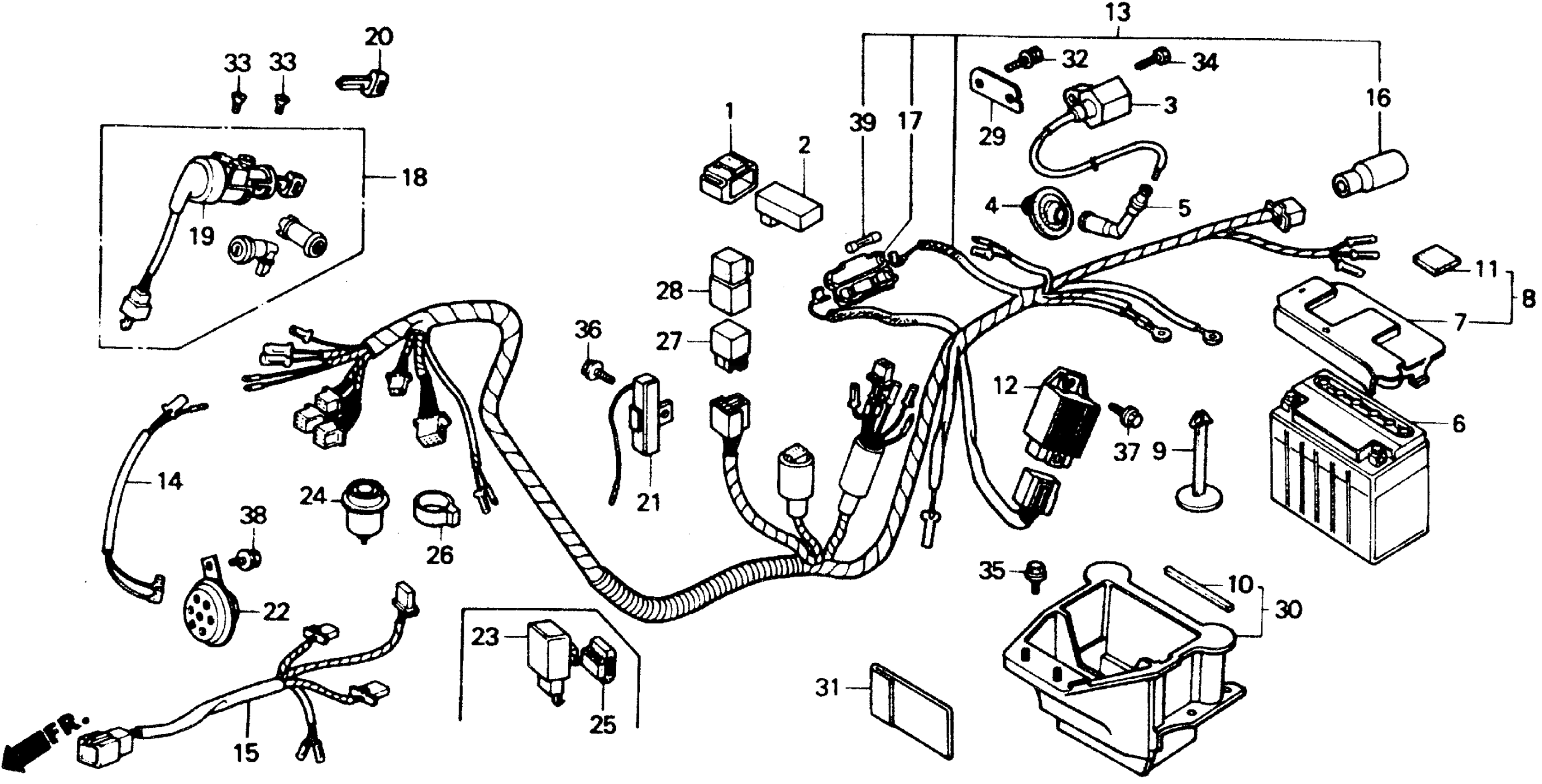

Honda CH80AC (87) ELITE 80, JPN, VIN# JH2HF031-HS200001 TO JH2HF031-HS205744 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB6-000

$5.17

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI)

30410-GE1-670

Unavailable

3

COIL, IGNITION This part replaces 30510-GE1-770.

30510-GE1-771

Unavailable

3

COIL, IGNITION

30510-GE1-771

Unavailable

4

SEAL, IGNITION

30605-GK1-000

Unavailable

5

CAP ASSY. This part replaces 30700-GK1-000.

30700-MG7-003

$14.30

5

CAP ASSY. This part replaces 30700-GK1-010.

30700-MG7-003

$14.30

5

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-771.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-772.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-773.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-774.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-775.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-777.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-778.

31500-KY4-905AH

$75.46

6

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-GE1-778AH.

31500-KY4-905AH

$75.46

7

COVER, BATTERY This part replaces 31506-GE1-740.

31506-GV4-900

Unavailable

7

COVER, BATTERY

31506-GV4-900

Unavailable

9

STOPPER, BATTERY COVER

31507-GE1-770

Unavailable

10

RUBBER, BATTERY

31508-GE1-670

$4.80

12

RECTIFIER, REGULATE (SHINDENGEN)

31600-GW0-004

Unavailable

12

RECTIFIER, REGULATOR (SHINDENGEN) This part replaces 31600-GN2-003.

31600-GW0-004

Unavailable

13

WIRE HARNESS

32100-GE1-770

Unavailable

14

SUB-WIRE HARNESS A

32101-GE1-670

Unavailable

15

SUB-WIRE HARNESS B

32105-GE1-830

Unavailable

16

COVER, WIRE HARNESS CONNECTOR | Use up to Frame SN HS204809

32108-046-000

Unavailable

16

COVER, WIRE HARNESS CONNECTOR | Use from Frame SN HS204810

32108-003-000

$4.95

17

CASE, FUSE (10A)

32126-463-770

$10.51

18

LOCK SET (NOT AVAILABLE)

35010-GE1-740

Unavailable

19

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GE1-740.

35100-GE1-741

$83.21

19

SWITCH ASSY., COMBINATION & LOCK

35100-GE1-741

$83.21

20

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

20

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

20

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

20

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

20

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

20

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

21

RESISTOR ASSY.

35400-166-611

Unavailable

22

HORN (HIGH) This part replaces 38110-GJ1-731.

38110-KY0-621

Unavailable

22

HORN (HIGH) This part replaces 38110-KE5-601.

38110-KY0-621

Unavailable

22

HORN (HIGH) This part replaces 38110-KE8-601.

38110-KY0-621

Unavailable

22

HORN (HIGH)

38110-KY0-621

Unavailable

22

HORN (HIGH) This part replaces 38110-MB2-621.

38110-KY0-621

Unavailable

22

HORN (HIGH) This part replaces 38110-413-000.

38110-KY0-621

Unavailable

24

RELAY, TURN SIGNAL This part replaces 38301-KM1-831.

38301-KM1-832

Unavailable

24

RELAY, TURN SIGNAL

38301-KM1-832

Unavailable

26

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

27

RELAY, STARTER (DENSO)

38501-KG8-003

$69.80

27

RELAY, STARTER (OMRON)

38501-KG8-004

$47.44

28

SUSPENSION, STARTER RELAY (DENSO)

38506-KG8-003

$8.08

28

SUSPENSION, STARTER RELAY (OMRON)

38506-KG8-004

Unavailable

29

STAY, IGNITION COIL

50175-GE1-670

Unavailable

30

BASE, SEAT & BATTERY

50325-GE1-670

$121.03

31

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

32

BOLT-WASHER (5X14)

90101-SA7-000

$6.95

33

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

34

BOLT, HEX. (5X18) This part replaces 92000-05018-0A.

92101-05018-0A

$1.49

34

BOLT, HEX. (5X18)

92101-05018-0A

$1.49

35

BOLT-WASHER (6X20)

93495-06020-00

Unavailable

36

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

36

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

37

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

37

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

38

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.49

38

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

39

FUSE A (10A)

98200-11000

$1.80
