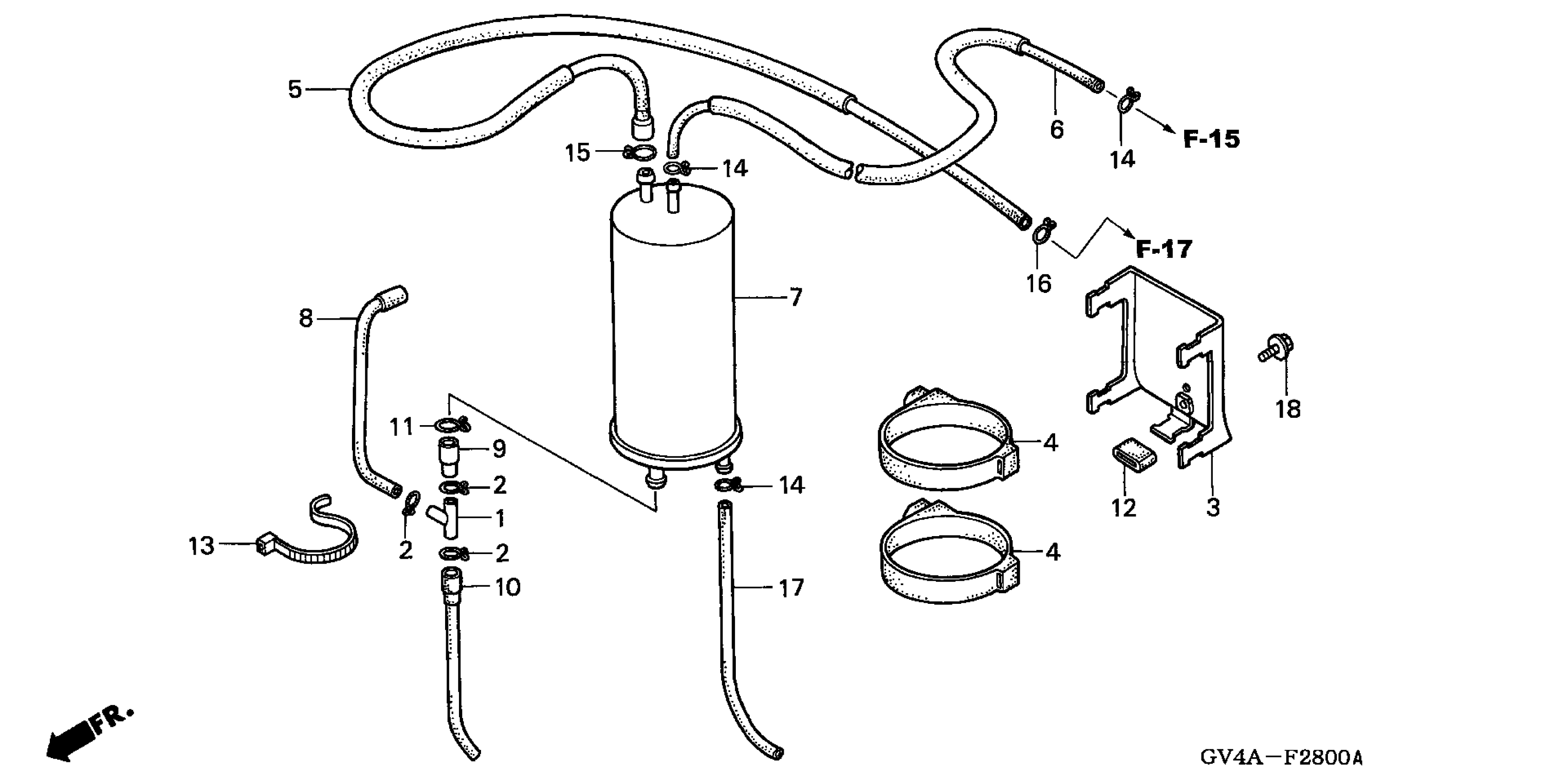

Honda CH80AC (07) ELITE 80, MEX, VIN# 3H1HF031-7D200001 EVAP CANISTER Diagram

JOINT, BREATHER THREE WAY

15772-376-000

$19.49

CLIP, BREATHER TUBE

15772-551-000

$2.05

STAY, CANISTER SETTING

17302-GE1-870

Unavailable

BAND, CANISTER SETTING

17303-MG9-640

$8.43

TUBE (45MM)

17307-GE1-870

$15.75

TUBE, CANISTER

17309-GE1-870

Unavailable

EVAPORATIVE EMISSION CANISTER ASSY.

17310-GE1-871

$101.30

TUBE, PURGE

17311-GE1-670

$13.36

JOINT A, TUBE

17312-GE1-670

Unavailable

TUBE ASSY., DRAIN

17313-GE1-670

$8.28

CLIP, BREATHER TUBE

17371-174-670

$2.20

RUBBER B, BATTERY MOUNTING

31503-044-670

$2.56

BAND, NYLON

83645-GG0-000

$1.93

CLIP, TUBE (B7)

95002-02070

$1.80

CLAMP, TUBE (D12)

95002-41200-08

$2.34

CLIP, TUBE (C9)

95002-50000

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X180)

95005-35001-20M

$9.67

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
