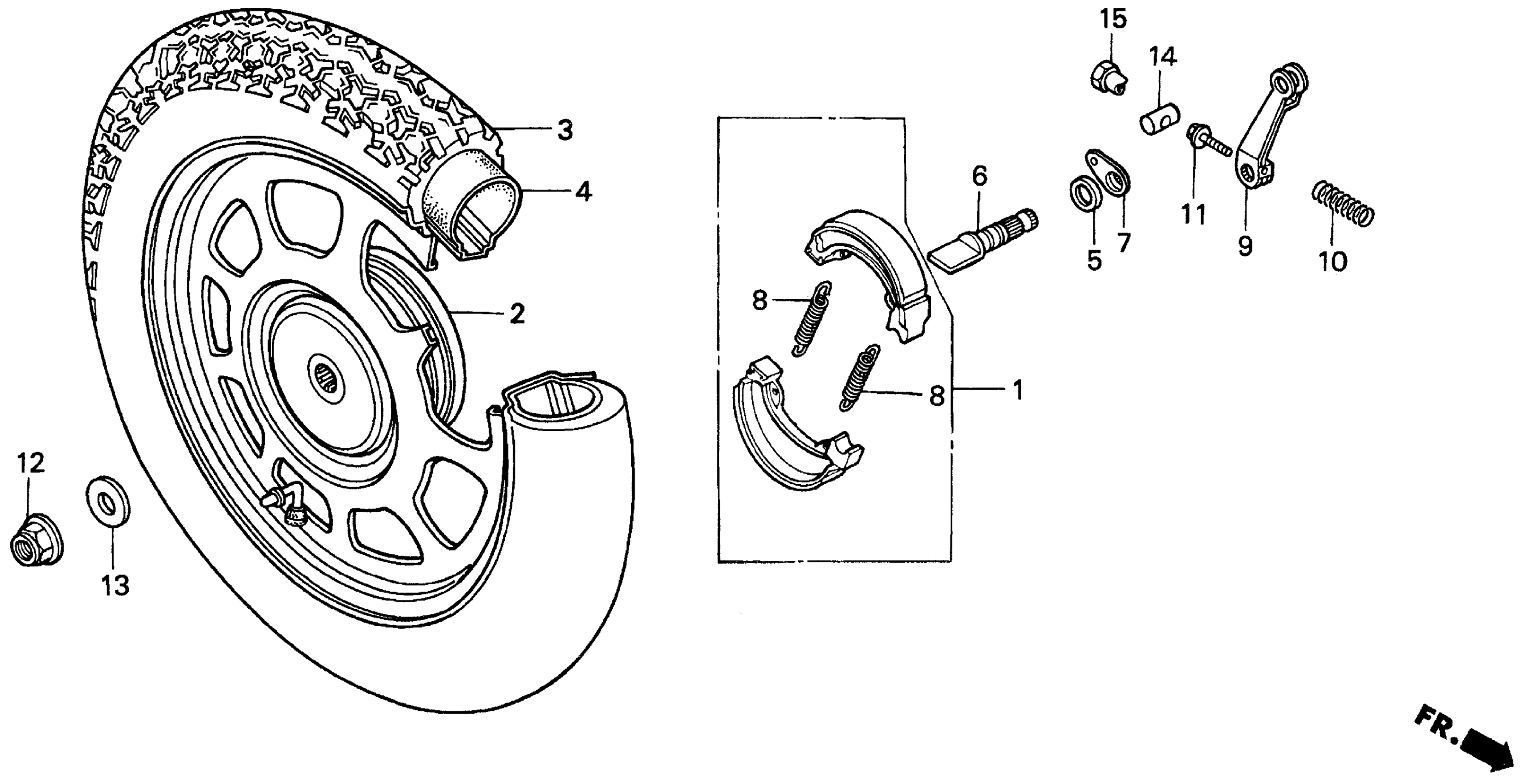

Honda CH80A (99) ELITE 80, MEX, VIN# 3H1HF030-XD400001 REAR WHEEL Diagram

SHOE KIT, BRAKE SHOE SET, BRAKE (JB NH FE)

06430-GN1-731

$28.62

WHEEL, RR. *NH138* (SHASTA WHITE)

42650-GE1-772ZB

Unavailable

TIRE (3.50-10) (4PR/51J 3R) (IRC) This part replaces 42711-GC8-673.

42711-GC8-679

$71.87

TUBE, TIRE (3.50-10) (INOUE)

42712-GC8-005

Unavailable

SEAL, BRAKE CAM

43134-196-000

$2.56

CAM SET, RR. BRAKE

43140-GE0-711

$20.98

INDICATOR, RR. BRAKE

43145-GN2-000

$4.28

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

ARM, RR. BRAKE

43410-GK1-010

Unavailable

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

NUT, U (16MM)

90305-GW2-711

$16.36

WASHER (16MM)

90501-KBN-900

$12.43

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
