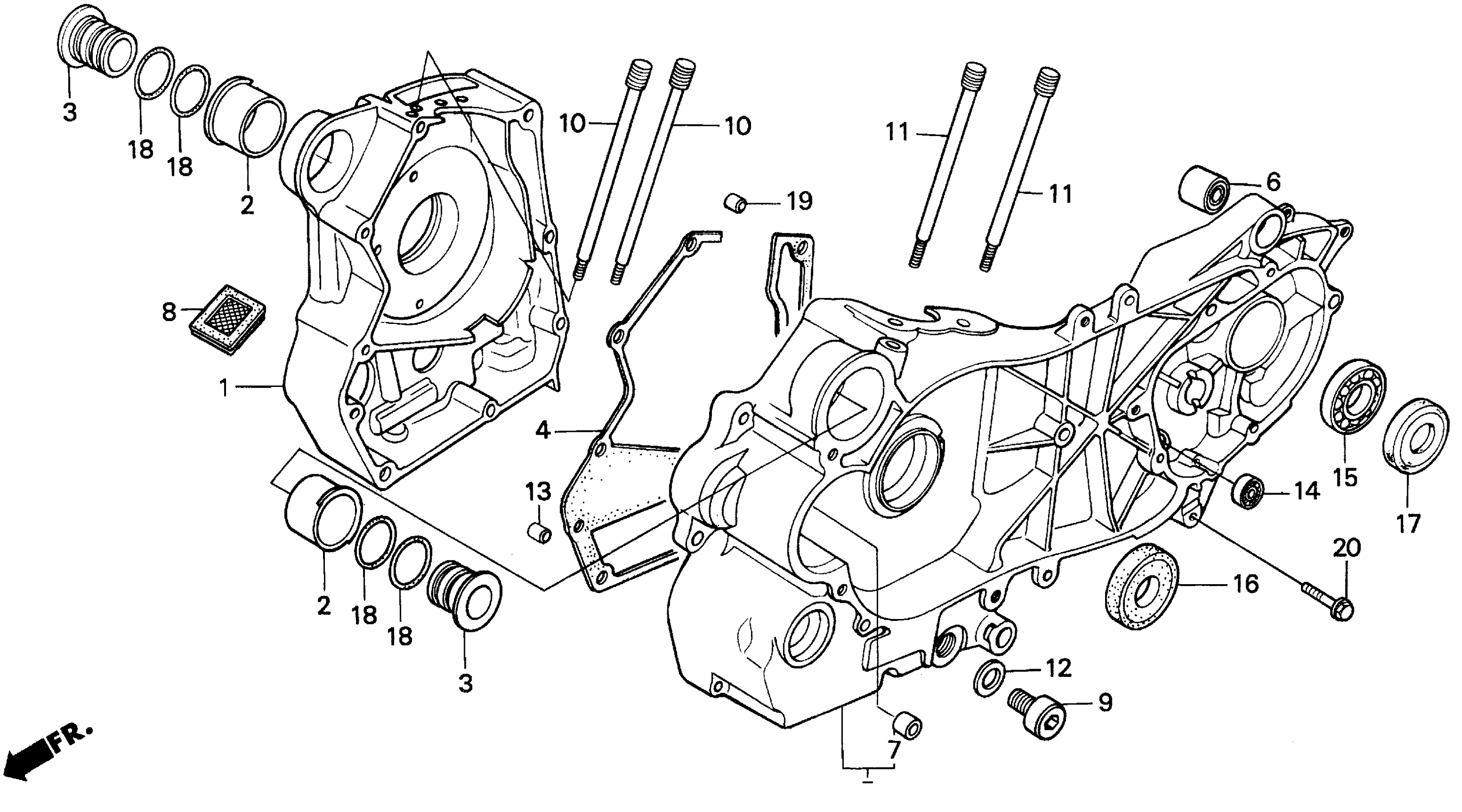

Honda CH80A (93) ELITE 80, MEX, VIN# 3H1HF030-PD800001 TO 3H1HF030-PD803100 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GE1-711

Unavailable

2

BUSH, ENGINE HANGER (OUTER)

11103-GE1-710

Unavailable

3

BUSH, ENGINE HANGER (INNER)

11105-KM1-670

Unavailable

4

GASKET, CRANKCASE | Use up to Engine SN 2713711 This part replaces 11192-GE1-712.

11192-GE1-713

Unavailable

4

GASKET, CRANKCASE

11192-GE1-713

Unavailable

5

CRANKCASE, L. | Use up to Engine SN 2711007 This part replaces 11201-GE1-773.

11201-GE1-774

Unavailable

5

CRANKCASE, L.

11201-GE1-774

Unavailable

6

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

7

BUSH (8X12X8) | Use up to Engine SN 2711007 This part replaces 11205-GF0-761.

11205-GAH-003

$9.77

7

BUSH (8X12X8)

11205-GAH-003

$9.77

8

SCREEN, OIL FILTER

15421-035-010

$3.80

9

BOLT, SOCKET DRAIN PLUG (12MM)

90013-GK1-000

Unavailable

10

BOLT A, CYLINDER STUD

90031-GK1-000

$6.25

11

BOLT B, CYLINDER STUD

90032-GK1-000

$6.85

12

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

13

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

13

PIN A, DOWEL (10X14)

94301-10140

$2.28

14

BEARING, RADIAL BALL (6201) (NTN CORP.) This part replaces 91003-GE0-711.

91003-GE0-712

$24.48

14

BEARING, RADIAL BALL (6201) (NTN CORP.)

91003-GE0-712

$24.48

15

BEARING, RADIAL BALL (6004UU) (NACHI)

91009-GE0-003

$37.15

15

BEARING, RADIAL BALL (6004UU) (NTN)

91009-GE0-004

$14.88

16

OIL SEAL (26X34.5X5.5)

91214-GK1-004

$5.69

17

OIL SEAL (27X42X7) (NOK)

91255-GE0-003

$11.16

18

O-RING (14.8X2.4)

91354-671-004

$3.69

19

PIN, DOWEL (8X14)

94301-08140

$2.25

20

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
