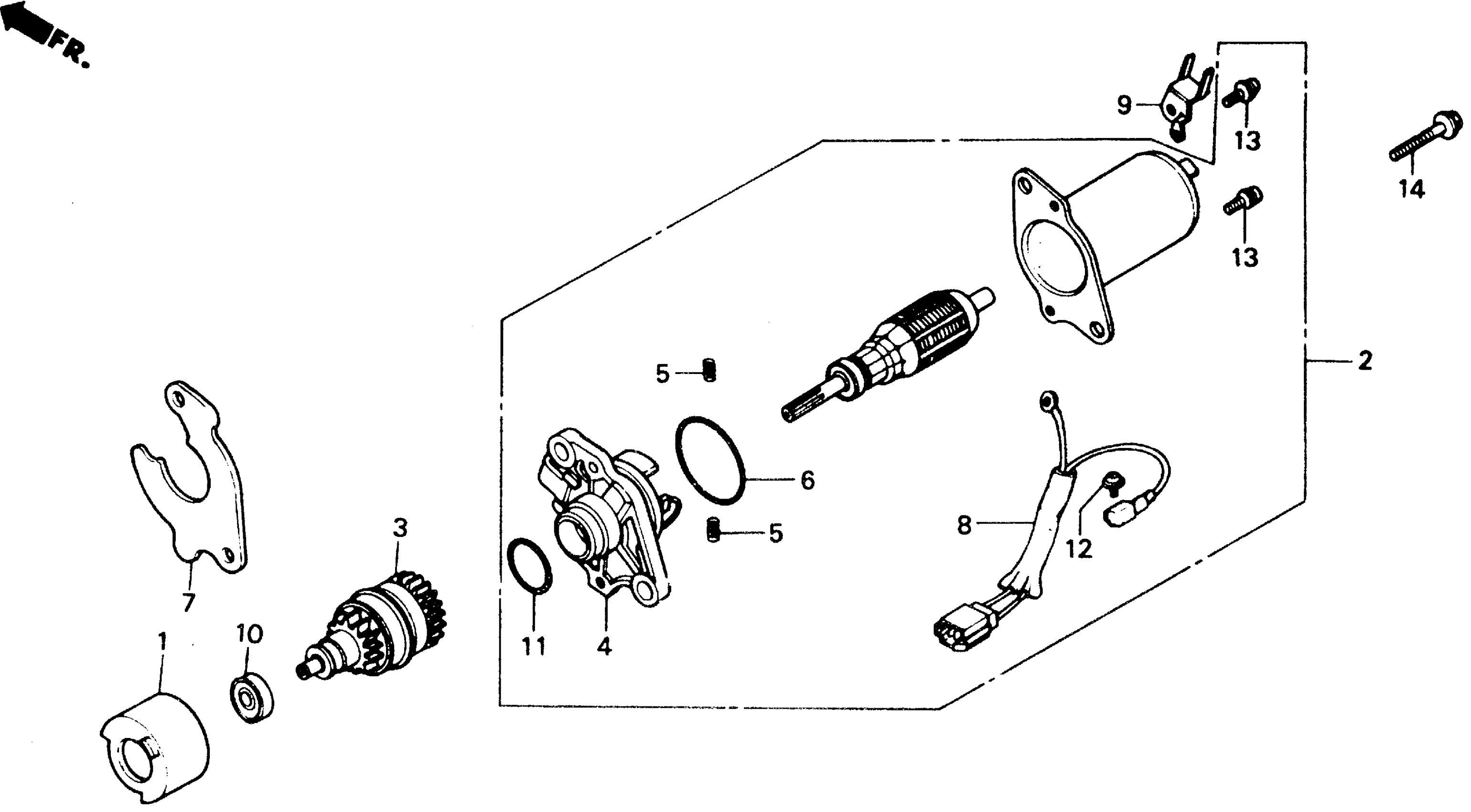

Honda CH80A (92) ELITE 80, MEX, VIN# 3H1HF030-ND700001 STARTING MOTOR Diagram

#

Description

Price

1

HOLDER, STARTER PINION

11351-GE0-711

Unavailable

2

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-GE1-741

Unavailable

3

PINION ASSY., STARTER This part replaces 31209-GE1-713.

31209-GE1-714

Unavailable

3

PINION ASSY., STARTER This part replaces 31209-GE1-712.

31209-GE1-714

Unavailable

3

PINION ASSY., STARTER

31209-GE1-714

Unavailable

4

BRACKET, FR.

31213-GK1-004

Unavailable

5

SPRING, BRUSH

31214-GF0-762

Unavailable

6

GASKET

31217-GF0-762

Unavailable

7

INSULATOR, STARTER MOTOR

31221-GE1-712

Unavailable

8

SUB-HARNESS

32105-GE1-740

Unavailable

9

CLAMP, WIRE

32964-GK1-000

Unavailable

10

BEARING, RADIAL BALL (608ZZ)

91011-GK1-003

$82.82

11

O-RING, STARTER (19.3X2.4)

91309-GF0-760

Unavailable

12

SCREW-WASHER (4X6)

93892-04006-08

$1.06

13

SCREW-WASHER (4X14)

93892-04014-08

$1.01

14

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
