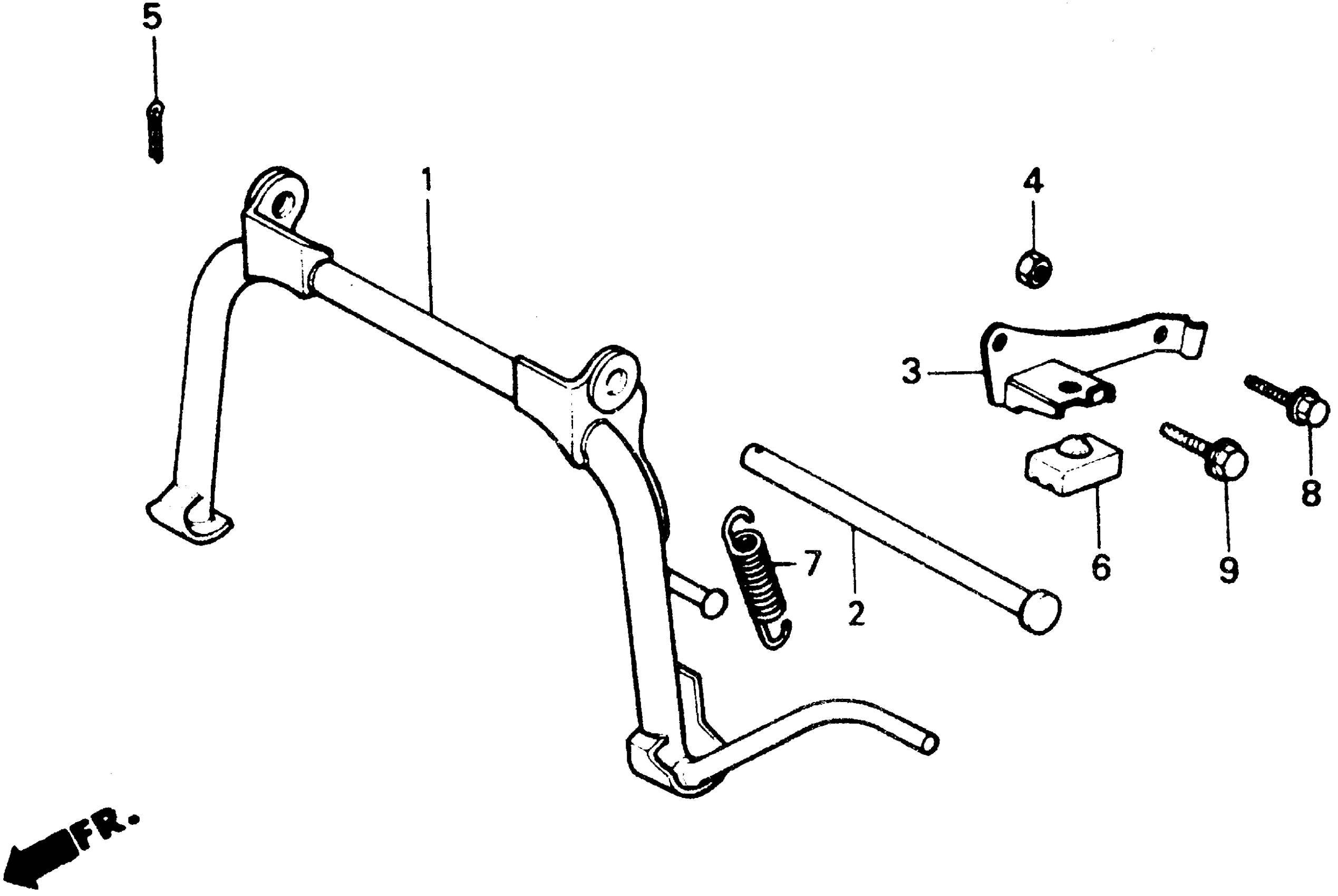

Honda CH80A (92) ELITE 80, MEX, VIN# 3H1HF030-ND700001 MAIN STAND Diagram

STAND, MAIN

50500-GV4-900

$88.66

SHAFT, MAIN STAND

50503-GE0-710

Unavailable

BRACKET, STAND STOPPER

50505-GE1-670

Unavailable

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, SPLIT (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

RUBBER A, STAND STOPPER

95011-61000

$1.49

SPRING D, MAIN STAND

95014-71402

$2.48

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (8X32)

95801-08032-00

$2.07
