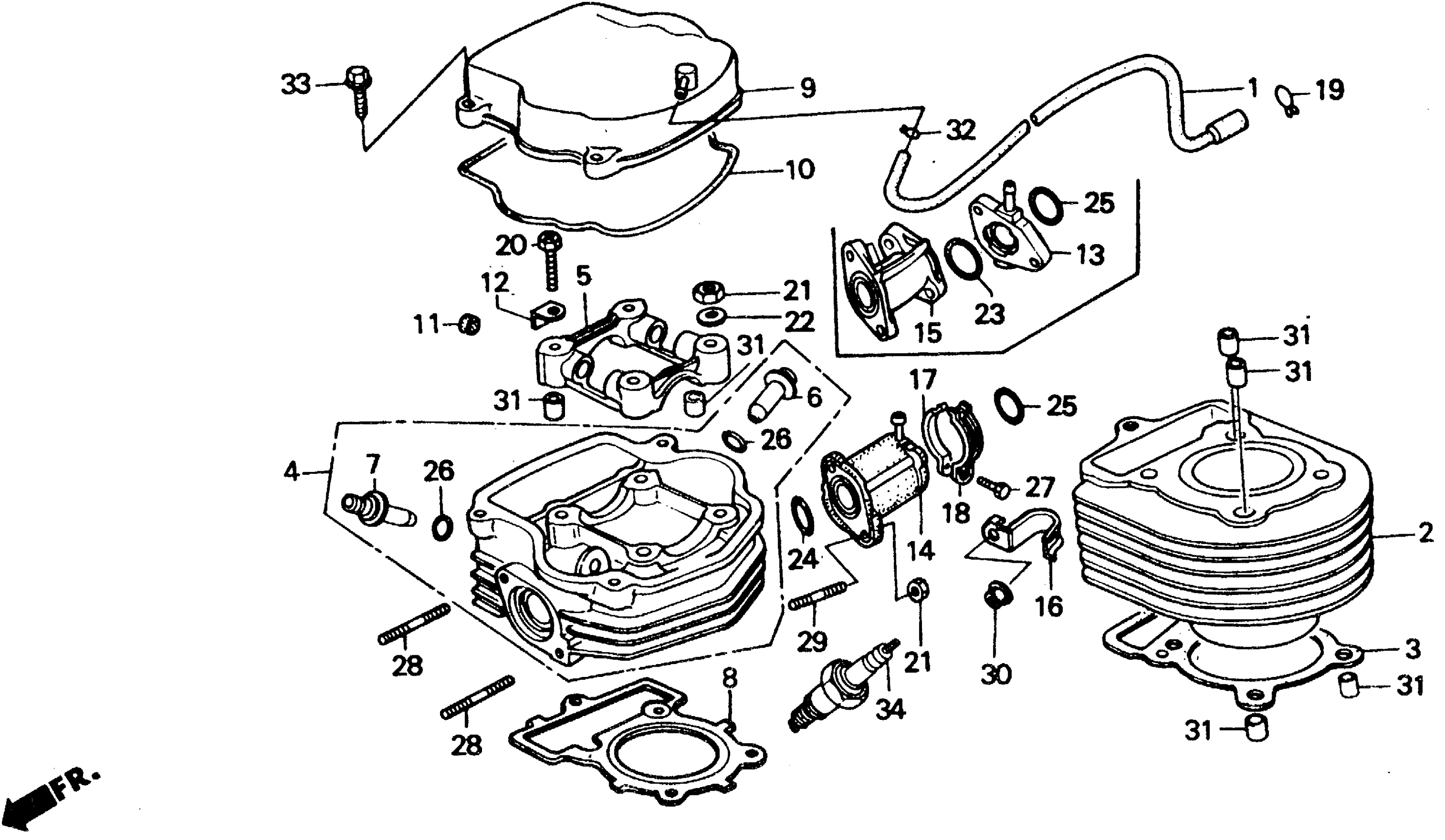

Honda CH80A (92) ELITE 80, MEX, VIN# 3H1HF030-ND700001 CYLINDER Diagram

#

Description
Price

1

TUBE, ENGINE BREATHER

11221-GE1-710

Unavailable

2

CYLINDER

12100-GE1-710

Unavailable

3

GASKET, CYLINDER This part replaces 12191-GE1-711.

12191-GE1-712

Unavailable

3

GASKET, CYLINDER

12191-GE1-712

Unavailable

4

CYLINDER HEAD This part replaces 12200-GE1-710.

12200-GE1-711

Unavailable

4

CYLINDER HEAD

12200-GE1-711

Unavailable

5

HOLDER, CAMSHAFT

12210-GK1-030

$70.84

6

GUIDE, IN. VALVE (OS)

12237-GB4-305

$14.20

7

GUIDE, EX. VALVE (OS)

12245-GB4-305

$14.20

8

GASKET, CYLINDER HEAD

12250-GE1-713

Unavailable

9

COVER, HEAD

12310-GE1-713

$61.18

10

GASKET, HEAD COVER

12391-GK1-000

Unavailable

11

PLUG, RUBBER

12969-GR0-000

$3.08

12

PLATE, HEAD PLUG RUBBER

12980-GK1-000

Unavailable

14

PIPE, INLET

17110-GE1-832

Unavailable

16

CLAMP, CARBURETOR TUBE

17112-GE1-830

Unavailable

17

BAND A, IN. PIPE

17115-GE1-831

$15.48

18

BAND B, IN. PIPE

17116-GE1-831

Unavailable

19

CLIP, DRAIN TUBE

17371-098-850

Unavailable

20

BOLT (6MM)

90082-035-010

$2.39

21

NUT, HEX. (6MM)

90230-087-000

$1.80

22

WASHER, DRUM STOPPER

90417-360-000

$1.74

24

O-RING (22X2) (ARAI)

91301-GK1-003

$2.89

24

O-RING (22X2) (ARAI) This part replaces 91301-GK1-004.

91301-GK1-003

$2.89

25

O-RING (20.6X1.9)

91304-GB0-910

$3.77

26

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

26

O-RING (9X1.6) (ARAI)

91305-028-900

$2.92

27

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

28

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

29

BOLT, STUD (6X25)

90032-399-000

$2.34

30

NUT, HEX. (6MM)

90230-087-000

$1.80

31

PIN, DOWEL (8X14)

94301-08140

$2.25

32

CLIP, TUBE (B8)

95002-02080

$1.80

33

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

34

SPARK PLUG (CR6HS) (NGK) | (Optional).

98056-56716

$2.62

34

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

34

SPARK PLUG (CR7HS) (NGK)

98056-57716

$2.62

34

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

34

SPARK PLUG (CR8HS) (NGK) | (Optional).

98056-58716

$2.62

34

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
