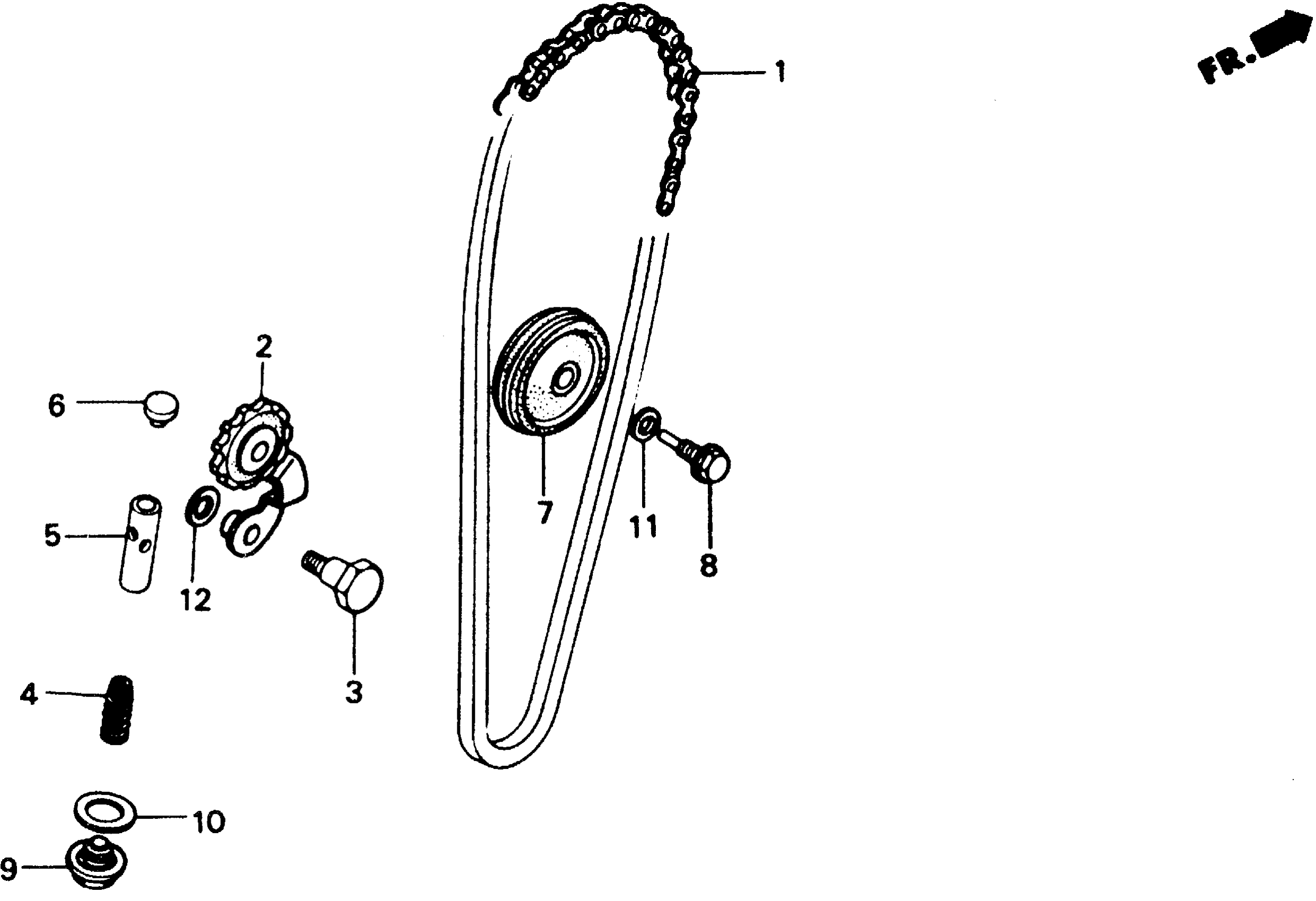

Honda CH80A (92) ELITE 80, MEX, VIN# 3H1HF030-ND700001 CAM CHAIN Diagram

CHAIN, CAM (76L)

14401-GK1-003

Unavailable

ARM, CAM CHAIN TENSIONER

14500-GE1-710

Unavailable

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

SPRING, CAM CHAIN TENSIONER This part replaces 14541-GB4-680.

14541-GB4-681

$4.75

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

ROD, CAM CHAIN TENSIONER PUSH This part replaces 14550-GK1-000.

14550-GK1-010

Unavailable

ROD, CAM CHAIN TENSIONER PUSH

14550-GK1-010

Unavailable

HEAD, TENSIONER PUSH ROD

14566-GE0-000

Unavailable

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

ROLLER, CAM CHAIN GUIDE

14610-086-010

$20.24

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-013.

14610-086-010

$20.24

PIN, GUIDE ROLLER

14615-GE0-000

Unavailable

BOLT, SEALING (14MM)

90081-035-000

$4.24

WASHER, SEALING (14MM)

90441-035-000

$2.39

WASHER (8MM)

90481-035-000

$1.87

WASHER (8MM)

90485-040-000

$1.77
