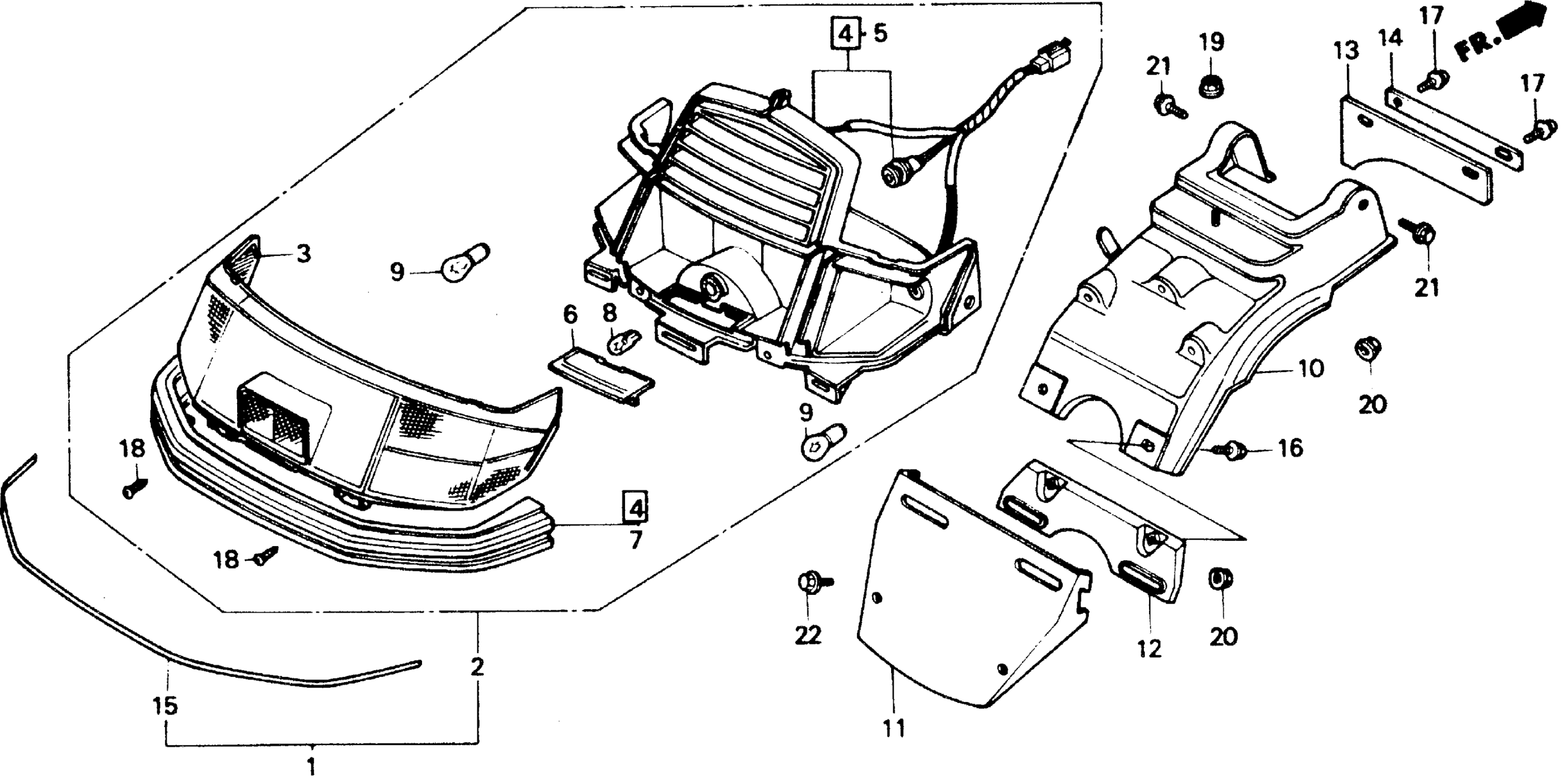

Honda CH80A (91) ELITE 80, MEX, VIN# 3H1HF030-MD600001 TO 3H1HF030-MD600600 REAR TURN SIGNAL Diagram

#

Description
Price

2

COMBINATION UNIT, RR. *NH154R* (TASHMAN GRAY) (TASMAN GRAY) This part replaces 33500-GV4-900ZA.

33500-GV4-900ZC

Unavailable

2

COMBINATION UNIT, RR. *NH154R* (TASHMAN GRAY) (TASMAN GRAY)

33500-GV4-900ZC

Unavailable

3

LENS, RR. TURN SIGNAL *NH154R* (TASMAN GRAY) This part replaces 33502-GV4-900ZA.

33502-GV4-900ZC

Unavailable

3

LENS, RR. TURN SIGNAL *NH154R* (TASMAN GRAY)

33502-GV4-900ZC

Unavailable

5

HOUSING, RR. TURN SIGNAL *NH154R* (TYPE1) (TASMAN GRAY)

33510-GV4-900ZA

Unavailable

6

LENS, LICENSE

33703-GE1-671

$12.00

7

COVER, TAILLIGHT *NH154R* (TASMAN GRAY) This part replaces 33706-GV4-900ZA.

33706-GV4-900ZC

Unavailable

7

COVER, TAILLIGHT *NH154R* (TASMAN GRAY)

33706-GV4-900ZC

Unavailable

8

BULB, WEDGE BASE (12V 5W)

34901-671-671

$3.11

9

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

10

BRACKET, TAILLIGHT

50358-GV4-900

Unavailable

11

BASE, NUMBER PLATE

50359-GE1-670

$48.02

12

BRACKET, NUMBER PLATE

50360-GV4-900

$48.52

13

SPLASH GUARD

80121-GE1-670

$7.03

14

STAY, SPLASH GUARD

80122-GE1-670

Unavailable

16

BOLT-WASHER (6X16)

93404-06016-00

$1.55

16

BOLT-WASHER (6X16) This part replaces 93414-06016-00.

93404-06016-00

$1.55

17

SCREW-WASHER (5X12)

93891-05012-00

$1.49

18

SCREW, TAPPING (4X12)

93901-34320

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

NUT-WASHER (6MM)

94070-06080

$1.49

21

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
