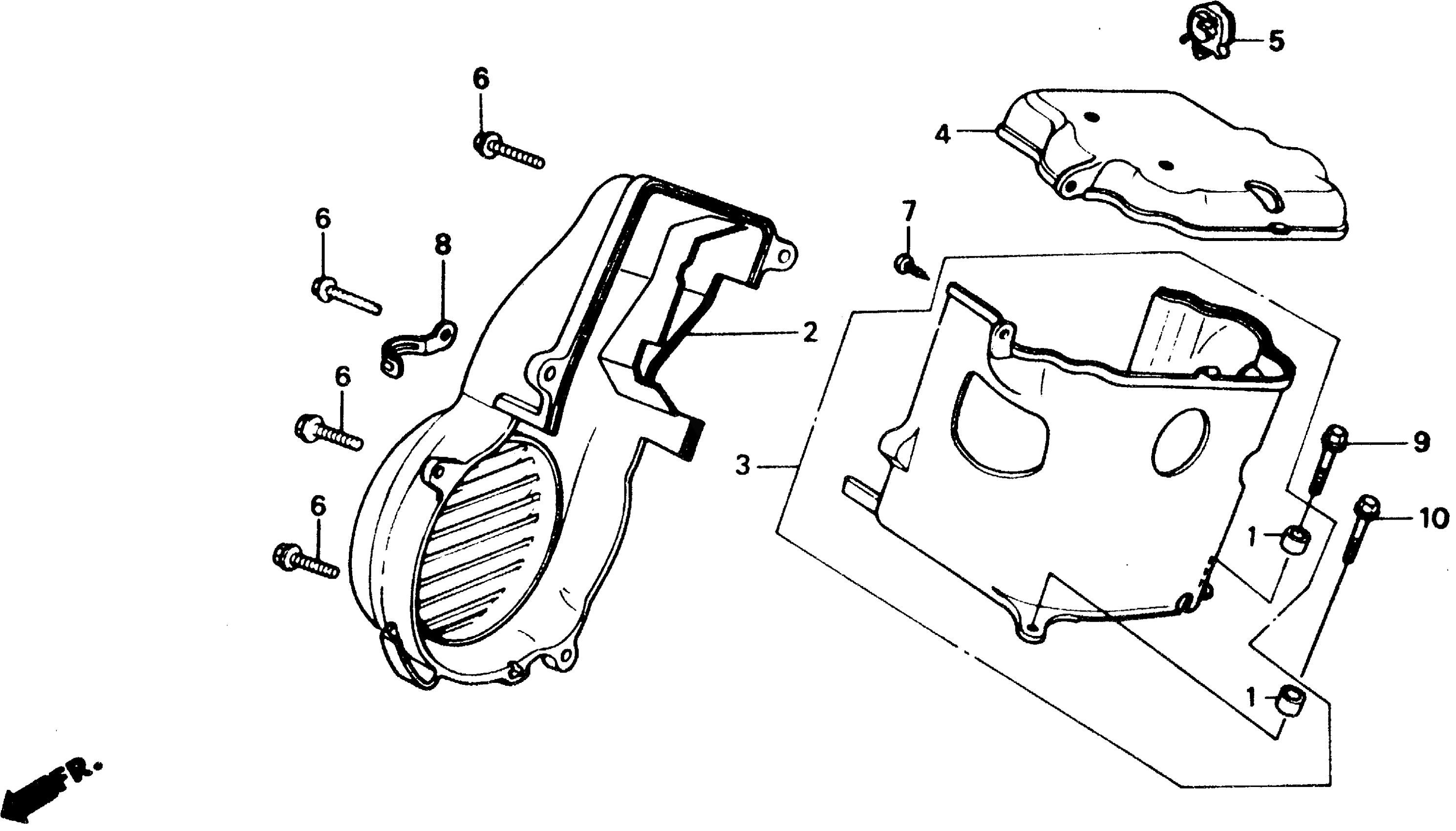

Honda CH80A (90) ELITE 80, MEX, VIN# 3H1HF030-LD500001 TO 3H1HF030-LD503000 FAN COVER Diagram

#

Description

Price

1

COLLAR, RADIATOR COVER

19033-415-000

$2.92

2

COVER, FAN

19610-GE1-771

Unavailable

3

SHROUD (A)

19620-GE1-772

$37.61

4

SHROUD (B)

19630-GE1-711

Unavailable

5

CLIP, HARNESS This part replaces 19635-GE0-711.

90684-ZA0-601

$2.93

6

BOLT, FLANGE (6X20) (NSHF) This part replaces 90014-GK1-000.

90005-GHB-650

$4.59

7

SCREW, TAPPING (4X12)

93903-44310

$1.49

8

CLIP (2X50)

94591-25000

$2.31

9

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

9

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

10

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

10

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
