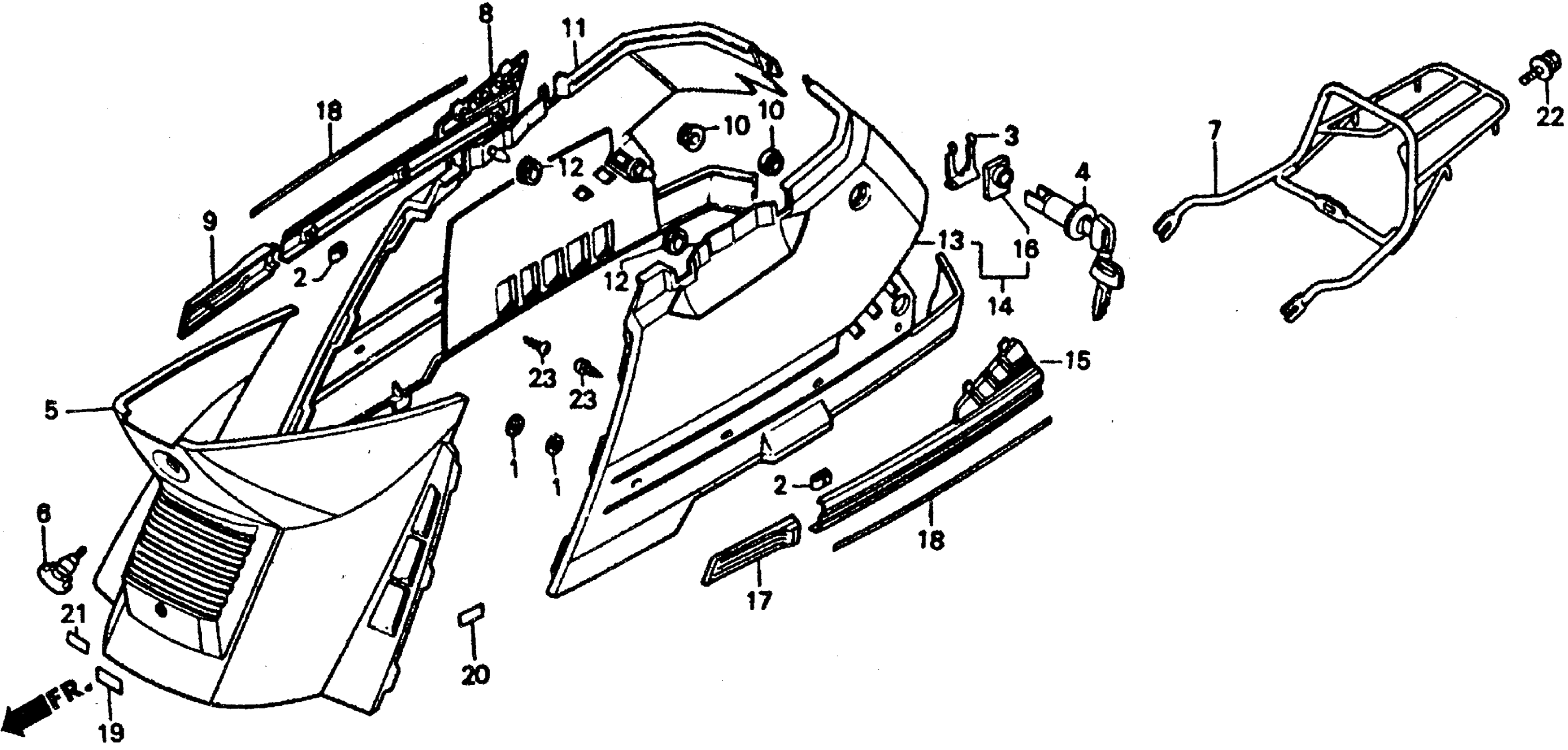

Honda CH80A (90) ELITE 80, MEX, VIN# 3H1HF030-LD500001 TO 3H1HF030-LD503000 CENTER COVER Diagram

NUT, SPEED (4MM) This part replaces 64436-692-000.

90313-172-000

$5.85

NUT, CENTER PANEL

66871-611-000

$4.83

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

LOCK ASSY., SEAT

77230-GE0-003

$57.77

COVER, CENTER *NH154R* (TASMAN GRAY)

80151-GE0-000ZK

Unavailable

COVER, CENTER *NH196R* (ROSS WHITE)

80151-GE0-000ZL

$184.23

KNOB, BATTERY COVER

80157-GC8-000

Unavailable

CARRIER, LUGGAGE *NH105* (MAT BLACK)

81200-GV4-900ZA

Unavailable

MOLDING, R. RR. SIDE *NH196R* (ROSS WHITE)

83501-GV4-900ZB

Unavailable

MOLDING, R. RR. SIDE *NH154R* (TASMAN GRAY)

83501-GV4-900ZA

Unavailable

SPACER, R. SIDE MOLDING *NH196R* (ROSS WHITE)

83502-GV4-900ZB

Unavailable

SPACER, R. SIDE MOLDING *NH154R* (TASMAN GRAY)

83502-GV4-900ZA

Unavailable

GROMMET, RR. COVER

83504-GE0-000

$2.92

COVER, R. RR. *PB112MU* (WOL) (NASSAU BLUE METALLIC)

83520-GE1-770ZE

$203.20

COVER, R. RR. *NH196* (WOL) (ROSS WHITE)

83520-GE1-770ZF

$203.20

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER, L. RR. *PB112MU* (WOL) (NASSAU BLUE METALLIC)

83600-GE1-770ZE

Unavailable

COVER, L. RR. *NH196* (WOL) (ROSS WHITE)

83600-GE1-770ZF

Unavailable

MOLDING, L. RR. SIDE *NH196R* (ROSS WHITE)

83601-GV4-900ZB

$65.51

MOLDING, L. RR. SIDE *NH154R* (TASMAN GRAY)

83601-GV4-900ZA

Unavailable

COLLAR, SEAT LOCK

83602-GE0-000

Unavailable

SPACER, L. SIDE MOLDING *NH196R* (ROSS WHITE)

83602-GV4-900ZB

Unavailable

SPACER, L. SIDE MOLDING *NH154R* (TASMAN GRAY)

83602-GV4-900ZA

Unavailable

LABEL, TIRE

87505-GV4-910

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

LABEL, ACCESSORIES & LOADING

87512-GV4-910

Unavailable

BOLT-WASHER (8X20)

93401-08020-00

$1.49

BOLT-WASHER (8X20) This part replaces 93491-08020-00.

93401-08020-00

$1.49

SCREW, TAPPING (4X12)

93903-24310

$1.49
