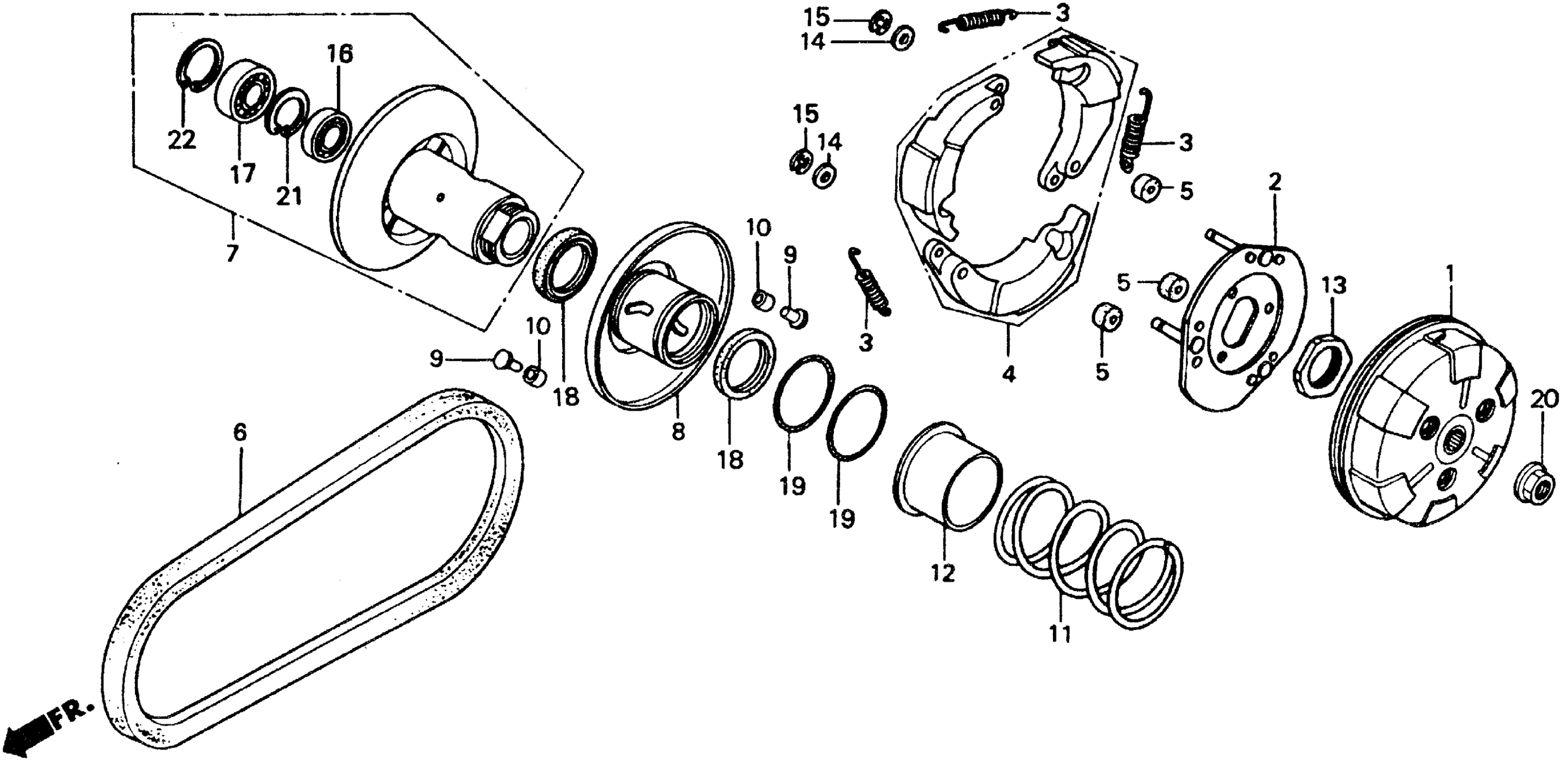

Honda CH80A (86) ELITE 80, JPN, VIN# JH2HF030-GS100013 TO JH2HF030-GS121277 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER) This part replaces 22100-GE1-710.

22100-GR0-000

Unavailable

1

CLUTCH (OUTER)

22100-GR0-000

Unavailable

2

PLATE, DRIVE

22350-GK1-003

Unavailable

3

SPRING, CLUTCH

22401-GE1-710

Unavailable

4

WEIGHT SET, CLUTCH This part replaces 22535-GC7-305.

22535-GC7-315

Unavailable

4

WEIGHT SET, CLUTCH

22535-GC7-315

Unavailable

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT, DRIVE

23100-GE1-711

Unavailable

7

FACE SET, DRIVEN This part replaces 23205-GE1-305.

23205-GV4-305

Unavailable

7

FACE SET, DRIVEN

23205-GV4-305

Unavailable

8

FACE, MOVABLE DRIVEN

23220-GE1-710

$60.41

9

PIN, GUIDE ROLLER

23225-187-003

Unavailable

10

ROLLER, GUIDE

23226-187-003

Unavailable

11

SPRING, DRIVEN FACE

23233-GE0-710

$16.15

12

COLLAR, SEAL

23237-GE1-710

$14.72

13

NUT, SPECIAL (28MM)

90202-187-000

$7.32

14

WASHER, THRUST

90442-GK1-003

$2.11

15

CIRCLIP (7MM)

90605-166-720

$1.80

16

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

17

BEARING, RADIAL BALL (6902U) (TOYO)

91002-GA7-701

$24.58

17

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

18

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.98

19

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

CIRCLIP, INNER (24MM)

94520-24000

$1.49

22

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
