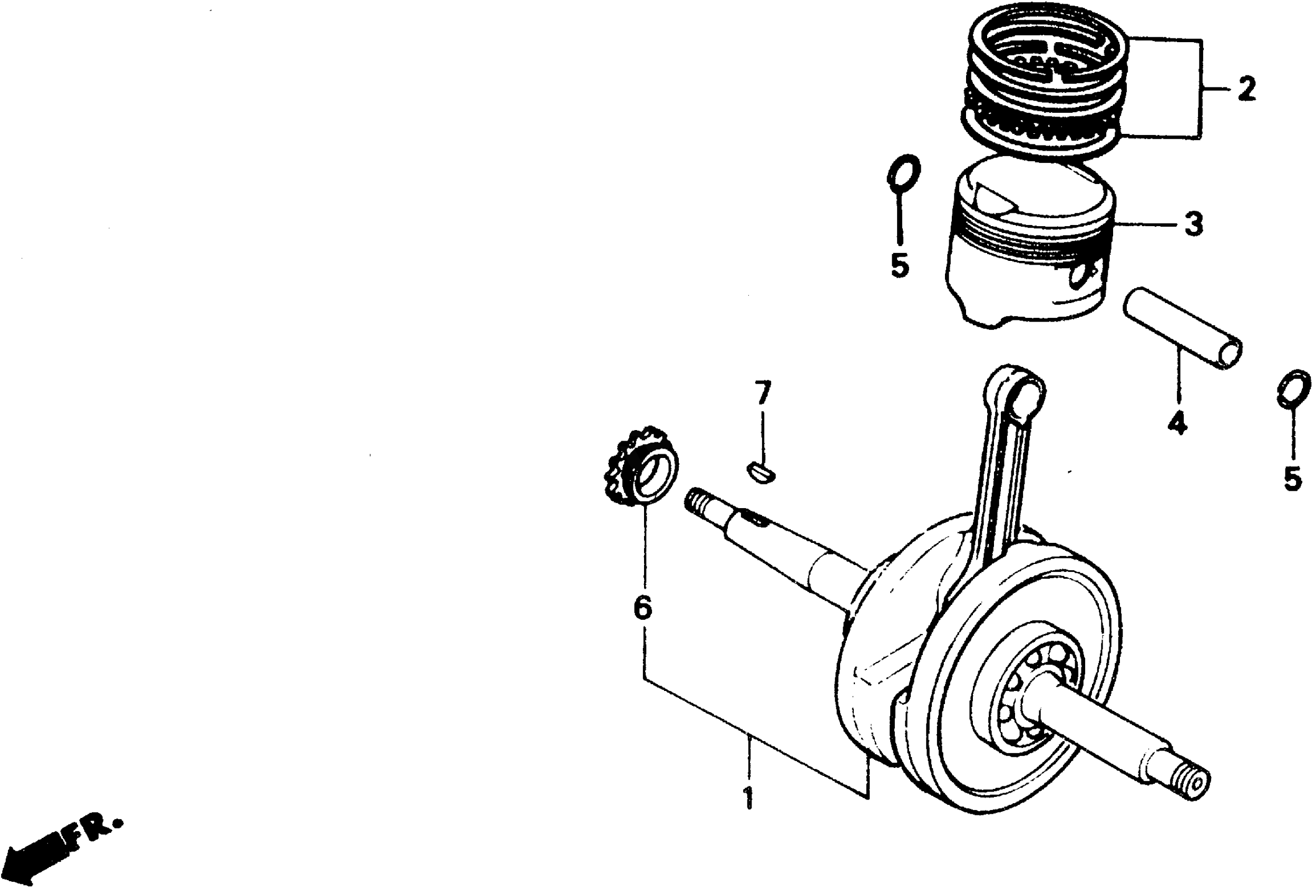

Honda CH80A (86) ELITE 80, JPN, VIN# JH2HF030-GS100013 TO JH2HF030-GS121277 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GE1-711

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-GE1-306.

13011-GE1-307

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-GE1-306.

13021-GE1-307

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-GE1-306.

13031-GE1-307

Unavailable

2

RING SET, PISTON (OS 0.75) | (Optional). This part replaces 13041-GE1-306.

13041-GE1-307

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13051-GE1-306.

13051-GE1-307

Unavailable

2

RING SET, PISTON (STD)

13011-GE1-307

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-GE1-307

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-GE1-307

Unavailable

2

RING SET, PISTON (OS 0.75) | (Optional).

13041-GE1-307

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-GE1-307

Unavailable

3

PISTON (STD) This part replaces 13101-GE1-710.

13101-GE1-830

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-GE1-306.

13102-GE1-307

$52.21

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-GE1-306.

13103-GE1-307

Unavailable

3

PISTON (OS 0.75) | (Optional). This part replaces 13104-GE1-306.

13104-GE1-307

Unavailable

3

PISTON (1.00) | (Optional). This part replaces 13105-GE1-306.

13105-GE1-307

Unavailable

3

PISTON (STD)

13101-GE1-830

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-GE1-307

$52.21

3

PISTON (OS 0.50) | (Optional).

13103-GE1-307

Unavailable

3

PISTON (OS 0.75) | (Optional).

13104-GE1-307

Unavailable

3

PISTON (1.00) | (Optional).

13105-GE1-307

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

SPROCKET, TIMING (13T)

14311-GE1-710

$16.82

7

KEY, WOODRUFF (3MM)

90741-035-000

$4.19
