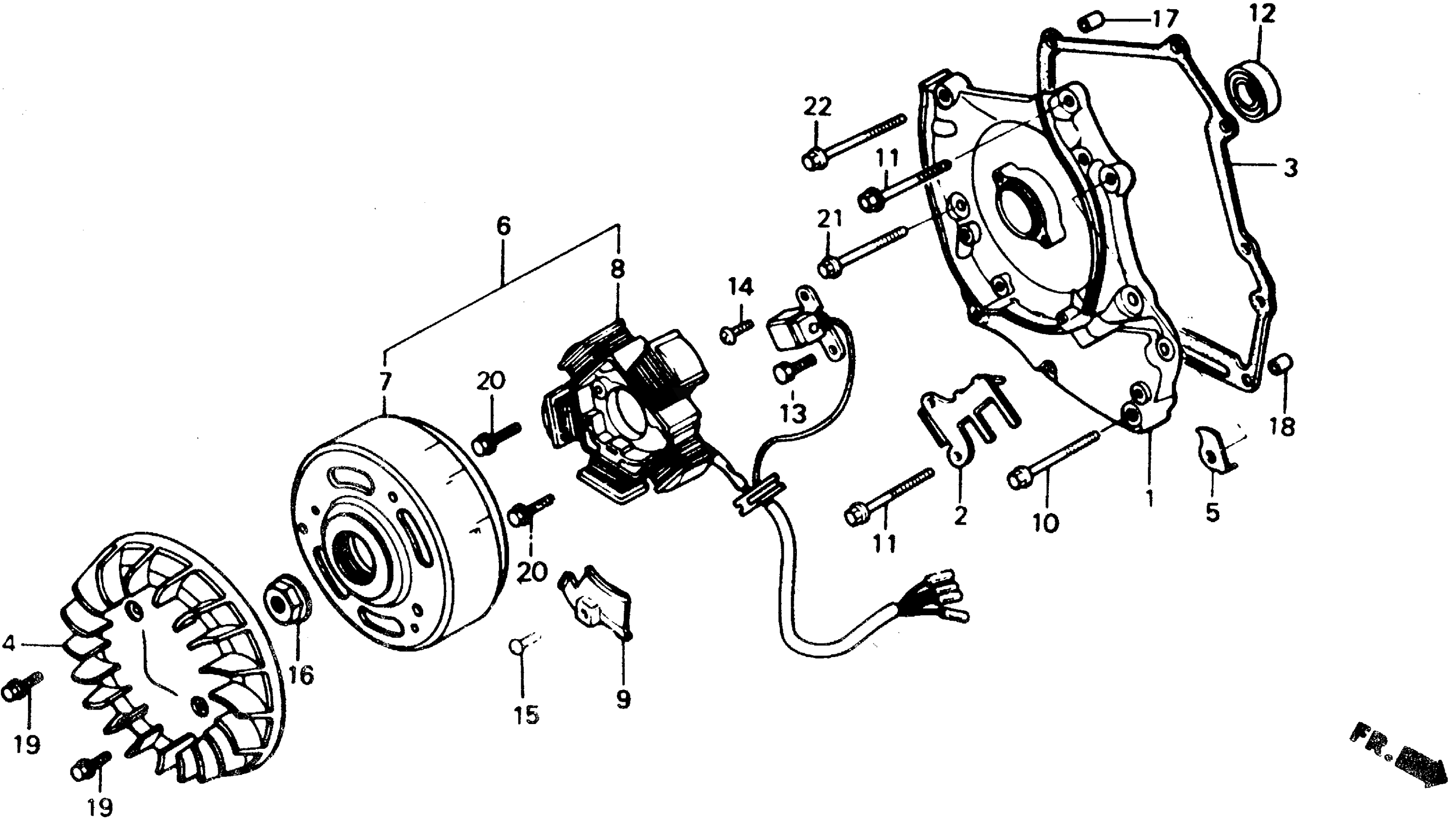

Honda CH80A (85) ELITE 80, JPN, VIN# JH2HF030-FS000049 TO JH2HF030-FS014538 ALTERNATOR 85 Diagram

#

Description
Price

1

COVER, R. This part replaces 11330-GK1-020.

11330-GK1-030

Unavailable

2

CLAMP, ALTERNATOR WIRE

11331-GE0-710

$5.59

3

GASKET, R. COVER This part replaces 11394-GK1-010.

11394-GK1-030

$9.72

3

GASKET, R. COVER This part replaces 11394-GK1-020.

11394-GK1-030

$9.72

3

GASKET, R. COVER

11394-GK1-030

$9.72

4

FAN, COOLING This part replaces 19520-GE1-710.

19520-GE1-711

Unavailable

4

FAN, COOLING

19520-GE1-711

Unavailable

5

STOPPER, ENGINE HANGER

21304-GE1-710

$3.84

6

ALTERNATOR ASSY. This part replaces 31100-GE1-711.

31100-GE1-712

Unavailable

7

FLYWHEEL This part replaces 31110-GE1-711.

31110-GE1-742

Unavailable

8

STATOR (MITSUBA) (NOT AVAILABLE)

31120-GE1-711

Unavailable

9

CLAMP, ALTERNATOR WIRE

32961-GK1-000

Unavailable

11

BOLT, SPECIAL (102)

90004-GE0-710

$9.69

11

BOLT, FLANGE (6X85)

90135-964-000

$4.93

12

OIL SEAL (17X32X6)

91234-GK1-004

Unavailable

13

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$1.49

13

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

13

BOLT, HEX. (5X8) This part replaces 92100-05008-0A.

92101-05008-0A

$1.49

13

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

13

BOLT, HEX. (5X8) This part replaces 93000-05008.

92101-05008-0A

$1.49

14

SCREW, PAN (5X6)

93500-05006-0A

$1.49

15

SCREW, PAN (5X8)

93500-05008-0A

$1.49

15

SCREW, PAN (5X8) This part replaces 93500-05008-1A.

93500-05008-0A

$1.49

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

PIN, DOWEL (8X14)

94301-08140

$2.25

18

PIN A, DOWEL (10X14)

94301-10140

$2.28

19

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

20

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

21

BOLT, FLANGE (6X90) This part replaces 96000-06090-00.

96001-06090-00

$1.95

21

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

22

BOLT, FLANGE (6X100) This part replaces 96000-06100-00.

96001-06100-00

$1.95

22

BOLT, FLANGE (6X100)

96001-06100-00

$1.95
