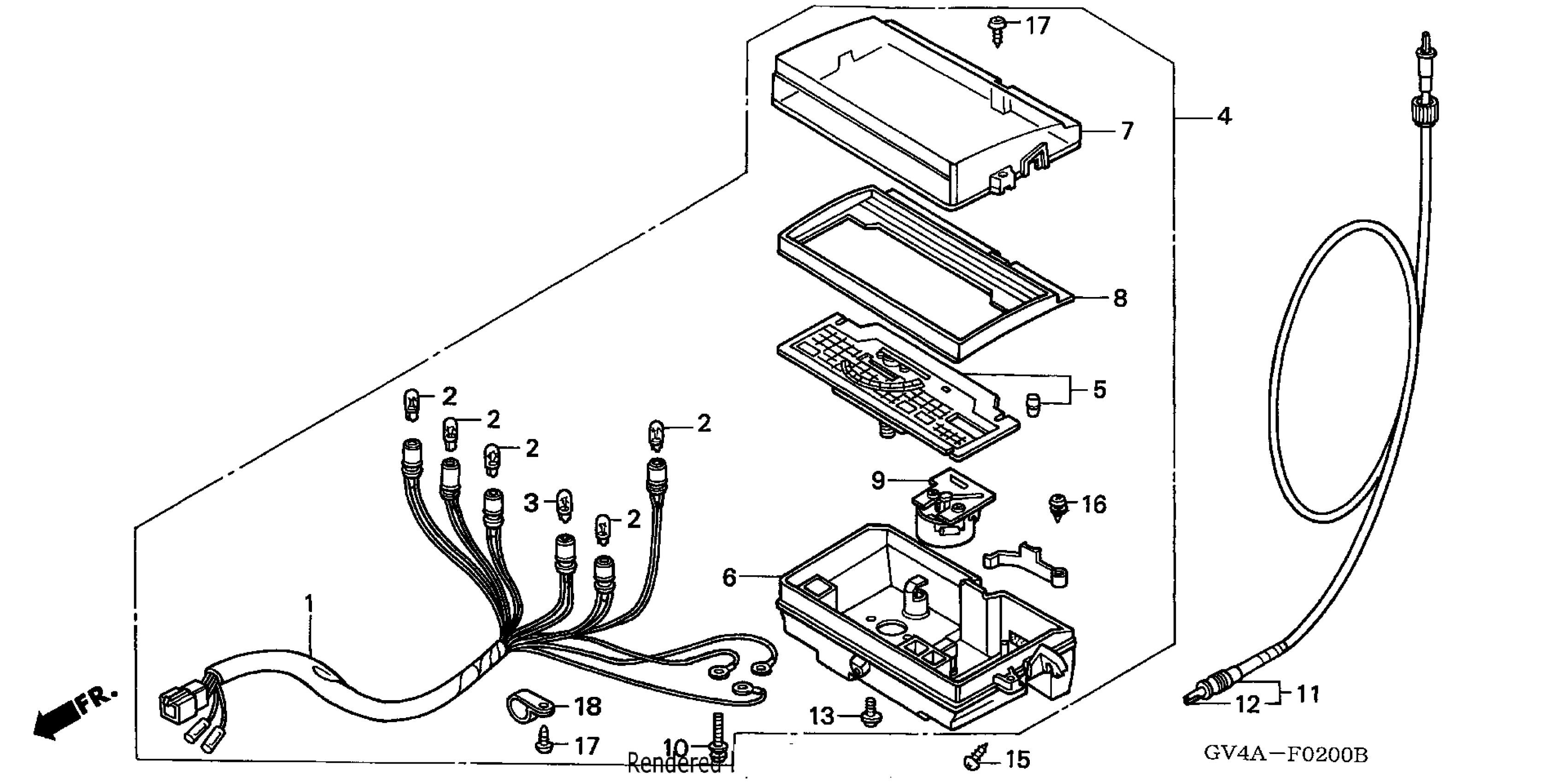

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 SPEEDOMETER Diagram

#

Description
Price

1

SOCKET

32110-GV4-A80

$64.59

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$3.90

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$3.90

2

BULB (14V 3.4W) (NS)

37237-SA5-003

$3.90

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$3.90

3

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.65

4

SPEEDOMETER ASSY. (MPH)

37200-GV4-A81

Unavailable

5

SPEEDOMETER

37210-GE1-670

Unavailable

6

CASE, SPEEDOMETER

37211-GE1-670

Unavailable

7

LENS, METER

37215-GE1-670

Unavailable

8

PLATE, REFLECTING

37217-GV4-A80

$24.00

9

METER ASSY., FUEL

37300-GE1-771

Unavailable

10

SCREW-WASHER (3X22)

37305-KE5-008

$1.81

11

CABLE, SPEEDOMETER

44830-GE0-710

Unavailable

12

CABLE (INNER)

44831-GE0-710

Unavailable

13

SCREW-WASHER (4X12)

93893-04012-08

$1.22

13

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.22

14

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$0.83

14

SCREW, TAPPING (4X12) (PO)

93913-14280

$0.83

15

SCREW, TAPPING (4X16) (PO) This part replaces 90102-SA4-000.

93913-14480

$0.83

15

SCREW, TAPPING (4X16) (PO)

93913-14480

$0.83

16

SCREW-WASHER (4X8)

93893-04008-08

$1.22

16

SCREW-WASHER (4X8) This part replaces 93893-04008-18.

93893-04008-08

$1.22

17

SCREW, TAPPING (4X16)

93903-24420

$0.83

18

CLAMP

37215-GV4-A80

$2.57
