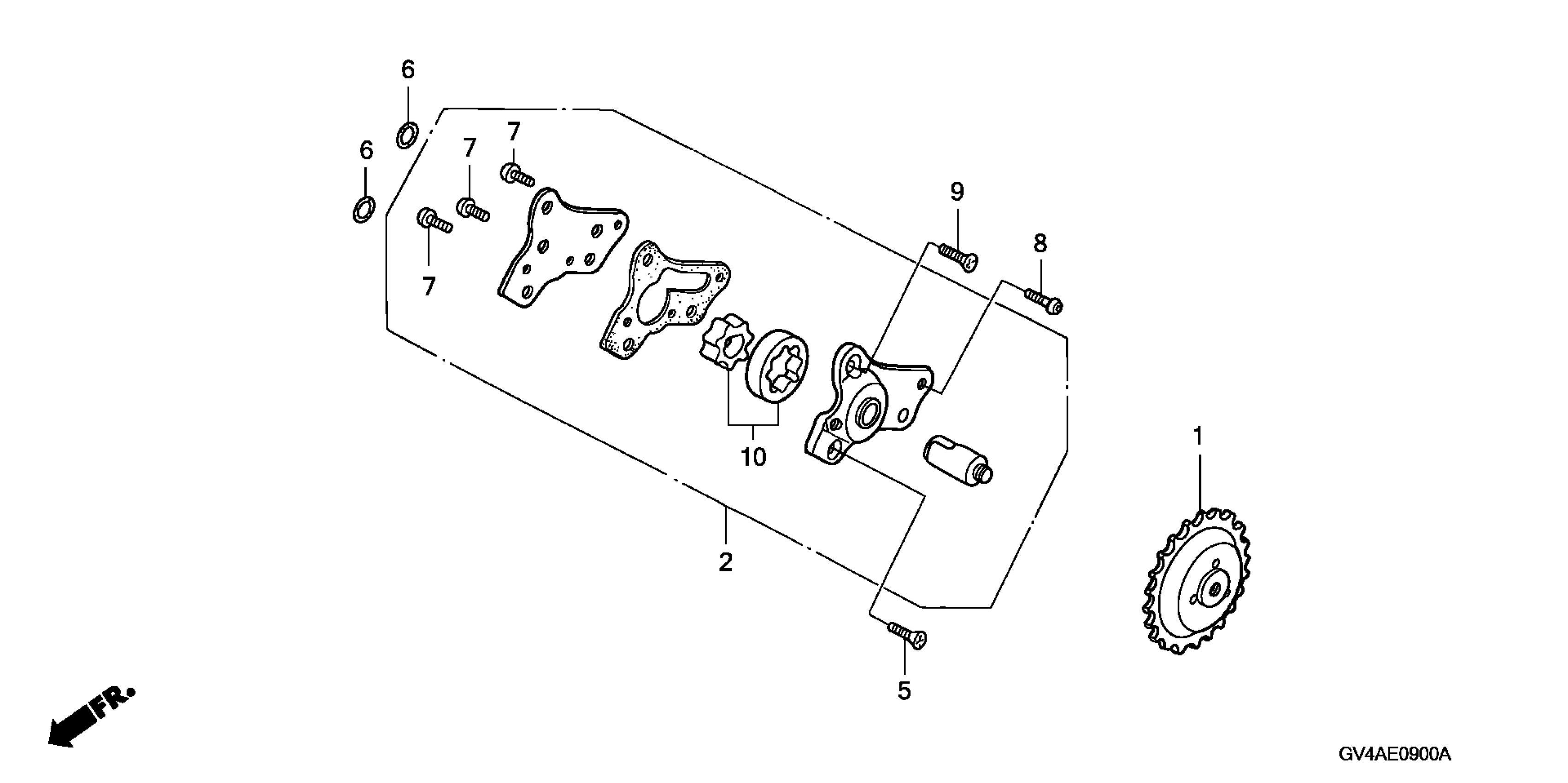

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 OIL PUMP Diagram

#

Description

Price

1

SPROCKET, CAM CHAIN GUIDE (23T)

14670-GE1-710

Unavailable

2

PUMP ASSY., OIL

15100-GE1-831

Unavailable

3

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable

4

ROTOR, OIL PUMP (OUTER)

15332-436-000

Unavailable

5

SCREW, SPECIAL FLAT (6X14)

90011-GE1-710

$2.10

6

O-RING (8.5X1.7)

90751-GK1-003

$2.70

7

SCREW, PAN (4X6)

93500-04006-0A

$1.49

7

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

8

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

8

SCREW, PAN (6X14)

93500-06014-0A

$1.49

8

SCREW, PAN (6X14) This part replaces 93500-06014-1A.

93500-06014-0A

$1.49

9

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

10

ROTOR SET, OIL PUMP

15021-436-000

$34.10
