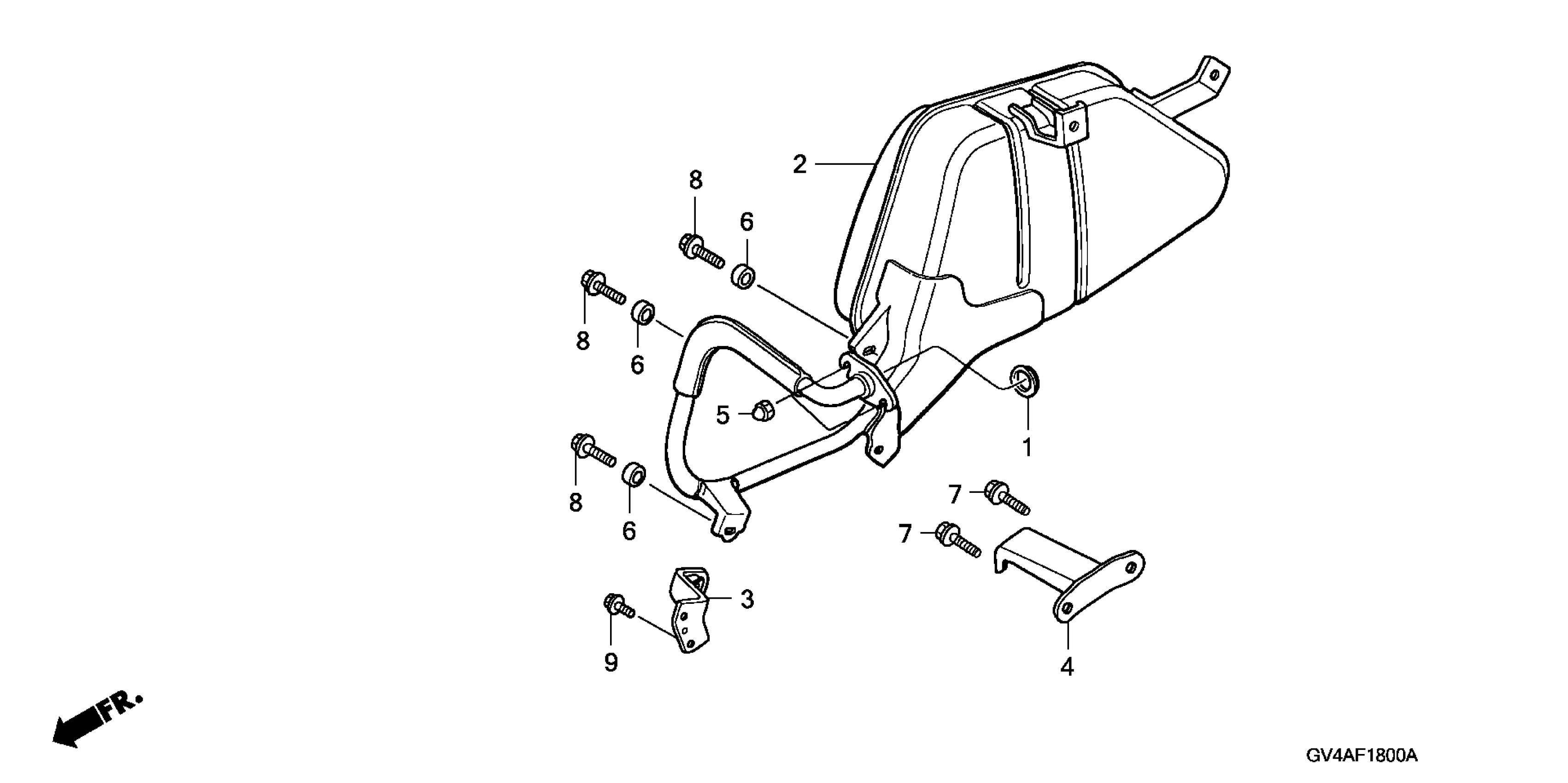

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 MUFFLER Diagram

GASKET, EX. PIPE

18291-GV4-961

Unavailable

MUFFLER, EX.

18300-GE1-830

Unavailable

STAY, MUFFLER

18315-GE1-830

Unavailable

STAY, MUFFLER SETTING

18316-GE1-830

Unavailable

NUT, CAP (6MM)

90304-438-000

$7.14

COLLAR, MUFFLER MOUNTING

90501-GK8-870

$3.42

BOLT, FLANGE (8X18)

95701-08018-00

$1.80

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
