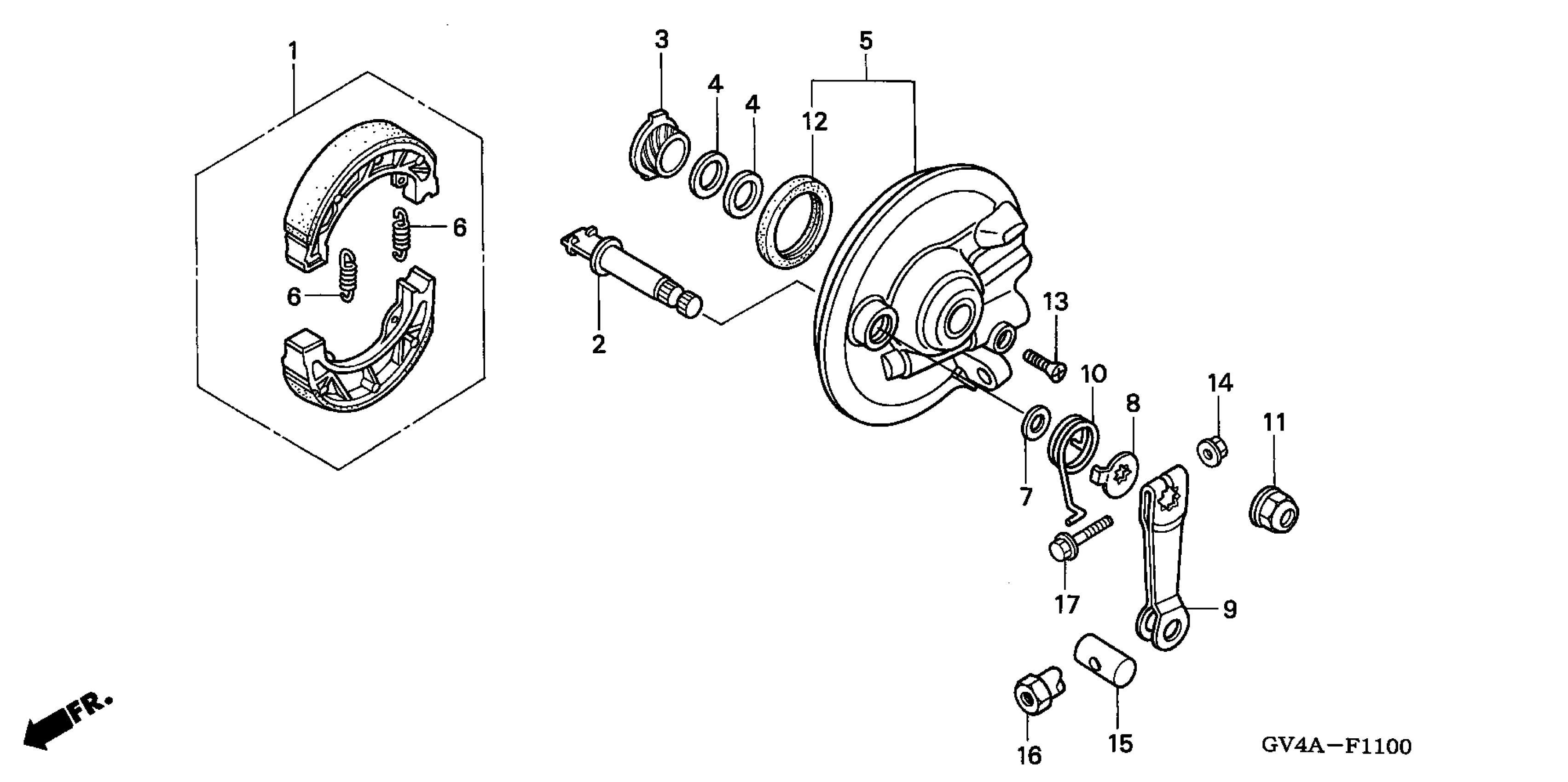

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK)

06450-HF7-J20

$29.28

CAM, RR. BRAKE

43141-400-003

$20.15

GEAR, SPEEDOMETER

44806-GC8-003

Unavailable

WASHER, SPEEDOMETER GEAR

44809-170-003

$2.59

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC)

45010-GV4-305ZA

$82.46

SPRING, BRAKE SHOE

45133-028-000

$2.03

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

INDICATOR, FR. BRAKE

45145-121-710

$6.26

ARM, FR. BRAKE

45410-GJ3-600

$14.74

SPRING, FR. BRAKE ARM RETURN

45435-121-010

$5.13

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

OIL SEAL (41X51X5) (NOK) This part replaces 91251-GC8-003.

91251-GC8-005

$9.48

OIL SEAL (41X51X5) (NOK)

91251-GC8-005

$9.48

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
