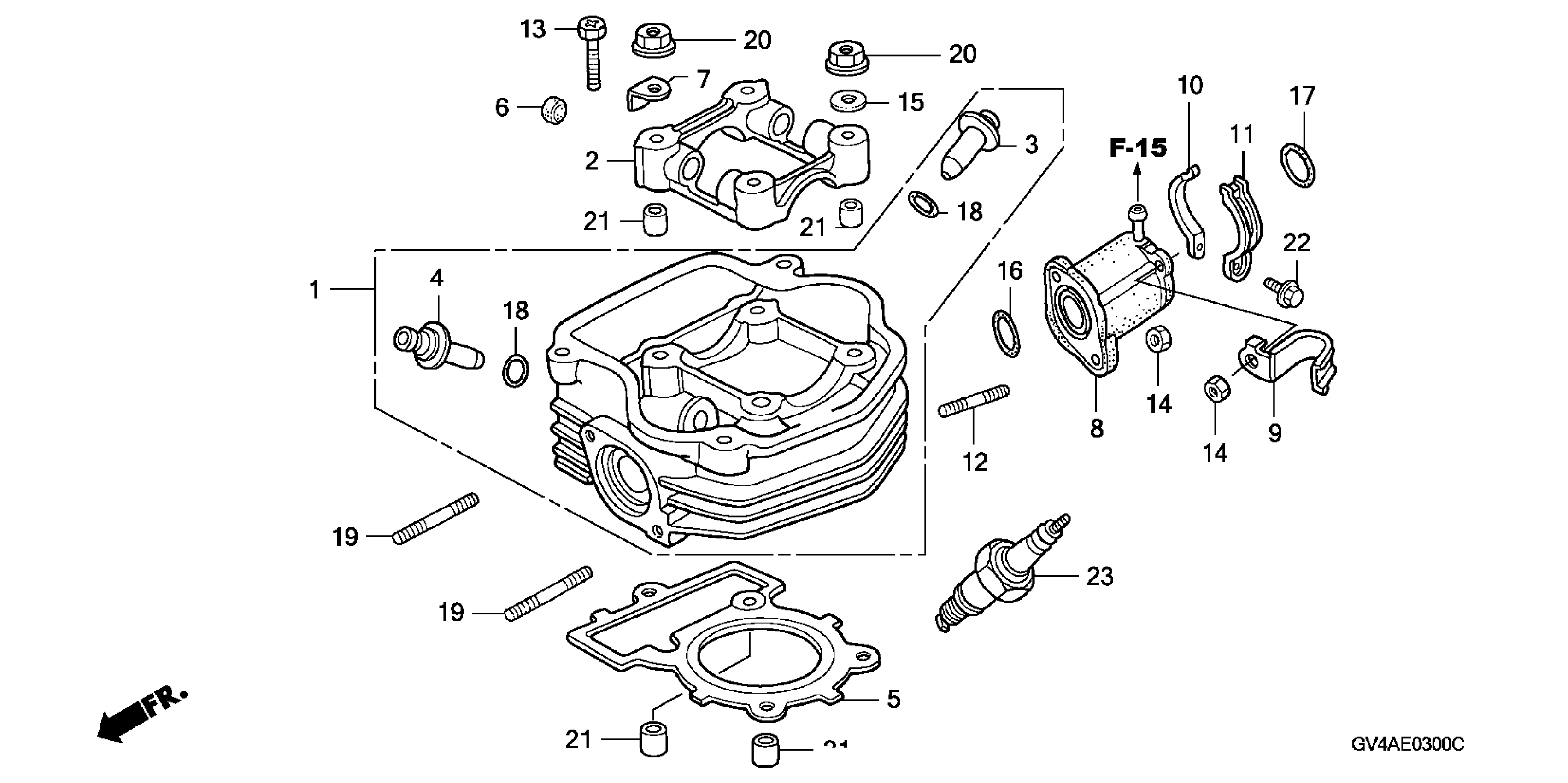

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-GE1-711

Unavailable

2

HOLDER, CAMSHAFT

12210-GK1-030

$70.84

3

GUIDE, IN. VALVE (OVER SIZE)

12237-GB4-305

$14.20

4

GUIDE, EX. VALVE (OVER SIZE)

12245-GB4-305

$14.20

5

GASKET, CYLINDER HEAD

12250-GE1-713

Unavailable

6

PLUG, RUBBER

12969-GR0-000

$3.08

7

PLATE, HEAD PLUG RUBBER

12980-GK1-000

Unavailable

8

PIPE, INLET

17110-GE1-832

Unavailable

9

CLAMP, CARBURETOR TUBE

17112-GE1-830

Unavailable

10

BAND A, IN. PIPE

17115-GE1-831

$15.48

11

BAND B, IN. PIPE

17116-GE1-831

Unavailable

12

BOLT, STUD (6X25)

90032-399-000

$2.34

13

BOLT (6MM)

90082-035-010

$2.39

14

NUT, HEX. (6MM)

90230-087-000

$1.80

15

WASHER, DRUM STOPPER

90417-360-000

$1.74

16

O-RING (22X2) (ARAI)

91301-GK1-003

$2.89

16

O-RING (22X2) (ARAI) This part replaces 91301-GK1-004.

91301-GK1-003

$2.89

17

O-RING (20.6X1.9)

91304-GB0-910

$3.77

18

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

18

O-RING (9X1.6) (ARAI)

91305-028-900

$2.92

19

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

19

BOLT, STUD (6X16)

92900-06016-0B

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

PIN, DOWEL (8X14)

94301-08140

$2.25

22

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

23

SPARK PLUG (CR6HS) (NGK) | (Optional).

98056-56716

$2.62

23

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

23

SPARK PLUG (CR7HS) (NGK)

98056-57716

$2.62

23

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

23

SPARK PLUG (CR8HS) (NGK) | (Optional).

98056-58716

$2.62

23

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
