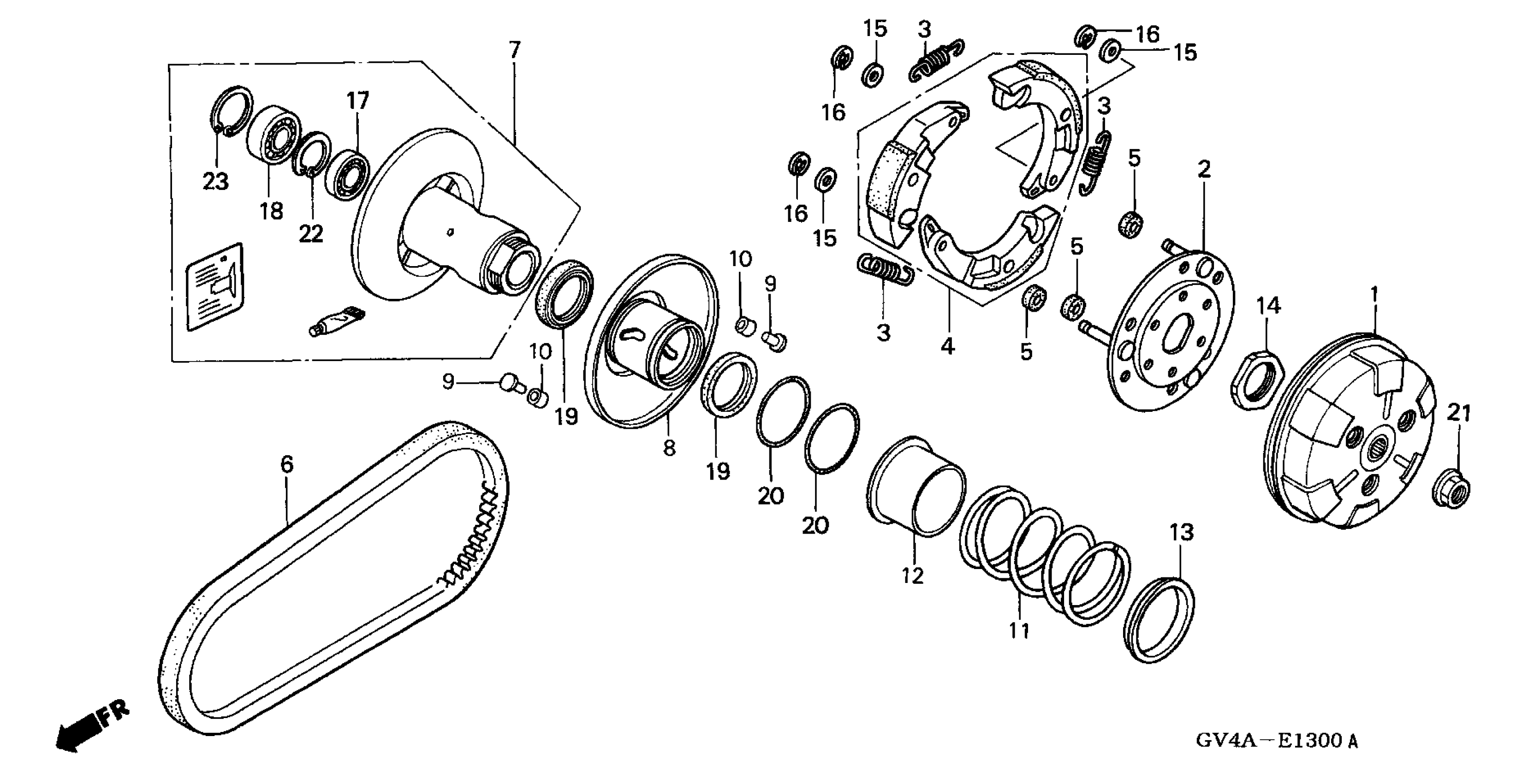

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-GV4-820

Unavailable

2

PLATE, DRIVE

22350-GAH-A00

$31.75

3

SPRING, CLUTCH

22401-GAJ-920

Unavailable

4

WEIGHT SET, CLUTCH

22535-GAK-305

$65.55

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.80

6

BELT, DRIVE

23100-GE1-711

Unavailable

7

FACE SET, DRIVEN

23205-GV4-305

Unavailable

8

FACE, MOVABLE DRIVEN

23220-GE1-710

$55.00

9

PIN, GUIDE ROLLER

23225-187-003

Unavailable

10

ROLLER, GUIDE

23226-187-003

Unavailable

11

SPRING, DRIVEN FACE

23233-GE0-710

Unavailable

12

COLLAR, SEAL

23237-GE1-710

$13.41

13

COLLAR, SPRING

23238-GV4-820

$13.59

14

NUT, SPECIAL (28MM)

90202-187-000

$6.82

15

WASHER, THRUST (6MM)

90442-044-000

$1.96

16

CIRCLIP (6MM)

90454-GB2-000

$1.58

17

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$22.30

18

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$22.08

18

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$22.08

19

SEAL, DRIVEN FACE (34X41X4)

91211-KN7-671

$5.91

19

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.36

20

O-RING, PINION CAP

91351-642-000

$3.92

21

NUT, FLANGE (10MM)

94050-10000

$1.41

22

CIRCLIP, INNER (24MM)

94520-24000

$1.10

23

CIRCLIP (INNER) (28MM)

94520-28000

$1.16
